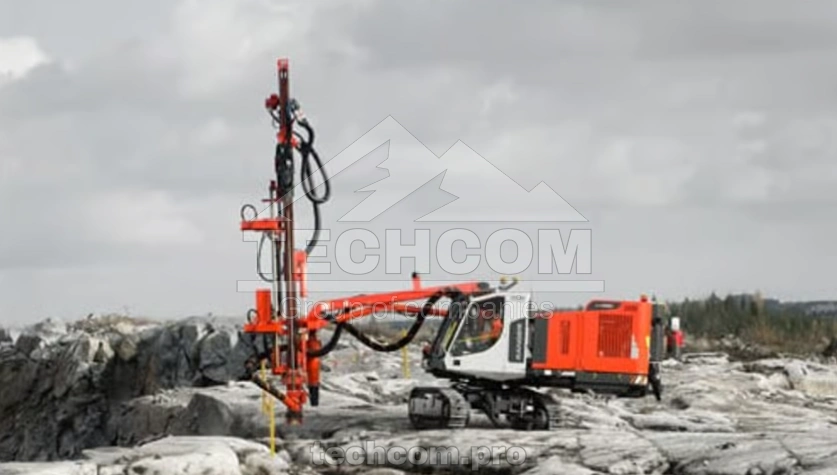

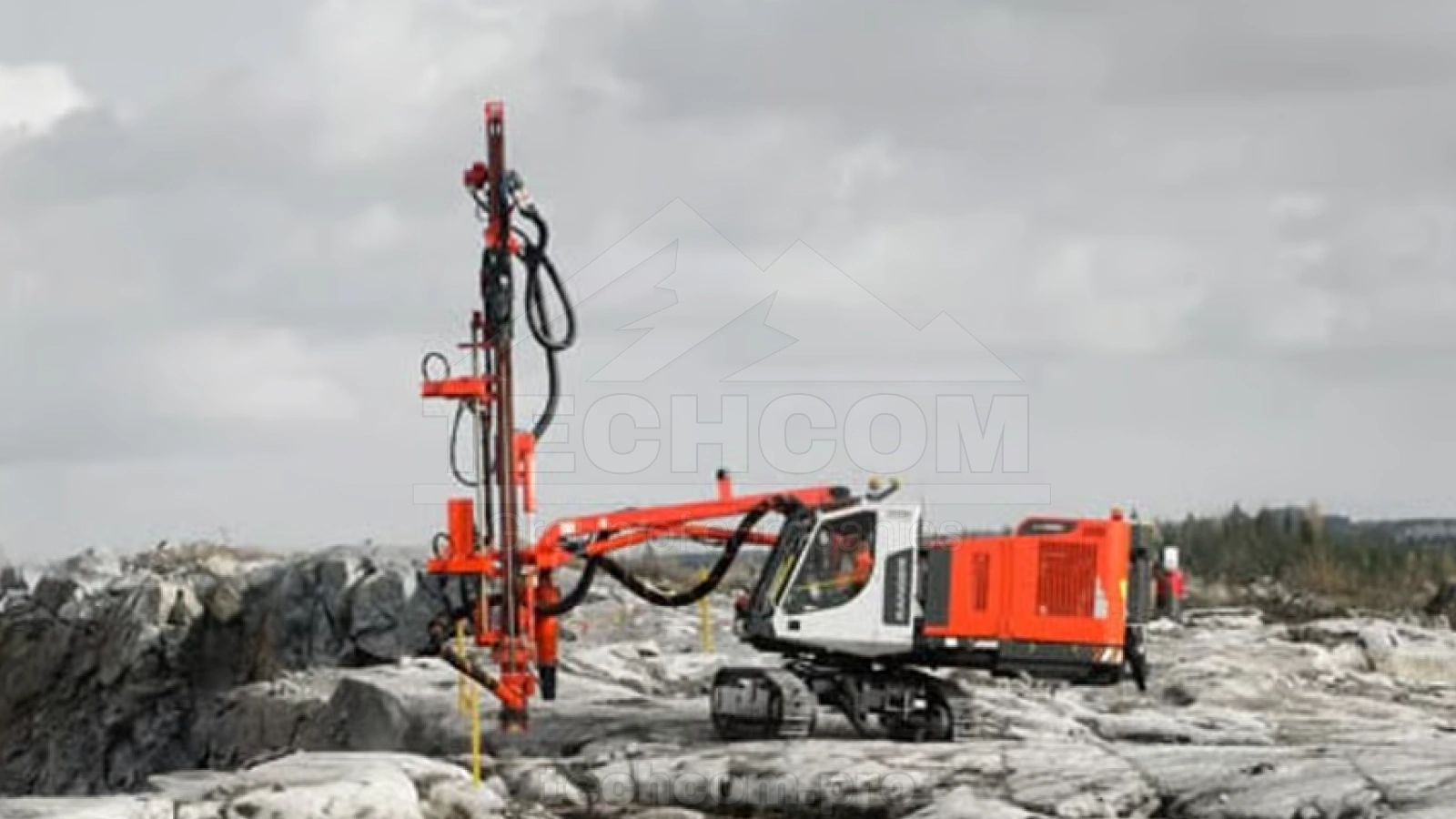

Drilling Rig Sandvik Ranger DX800 S5
The Sandvik Ranger DX800 S5 is a high-performance, self-propelled surface drilling rig designed for production drilling, road construction, pipeline projects and foundation work. Mounted on a crawler carrier with a rotating superstructure and equipped with a certified FOPS and ROPS cabin, the machine delivers excellent mobility, operator comfort and reliable performance in demanding drilling conditions.
Powered by a 168 kW Caterpillar C7.1 Stage V diesel engine, the Ranger DX800 S5 features the HL820T hydraulic rock drill delivering 21–23 kW percussion power. Designed for hole diameters from 76 to 127 mm, the rig provides drilling depths of up to 26.8 m using MF extension rods. Its advanced rod handling system, high-capacity compressor and efficient dust collection system make it an ideal solution for medium-sized quarries, mines and construction contractors.
Technical Specifications
| Parameter | Value |
|---|---|
| Engine | Caterpillar C7.1 Stage V diesel engine, 168 kW at 1,800 rpm |
| Drilling Method | Top hammer |
| Recommended Hole Diameter | 76–127 mm |
| Rock Drill | Sandvik HL820T hydraulic rock drill |
| Percussion Power | 21–23 kW |
| Operating Pressure | 100–200 bar |
| Maximum Rotation Torque | 1,355 Nm |
| Feed Type | CF145H chain feed |
| Feed Length | 7,700 mm |
| Rock Drill Travel | 4,320 mm |
| Maximum Hole Depth | 26.8 m |
| Feed Extension Travel | 1,350 mm |
| Feed/Pull-Out Force | 20 kN |
| Boom Type | DB800H articulated boom |
| Boom Reach | 4.8 m |
| Drilling Coverage | 17.6–26.4 m² |
| Rod Changer | RH714, 6+1 rod capacity |
| Compressor | Enduro 25 screw compressor |
| Flushing Air | 8.1 m³/min, up to 10 bar |
| Hydraulic Oil Tank | 200 l |
| Dust Collector | DC810H, 23 m³/min, 10.4 m² filter surface |
| Fuel Tank Capacity | 380 l |
| Ground Clearance | 440 mm |
| Tramming Force | 121 kN |
| Maximum Tramming Speed | 3.5 km/h |
| Total Weight | 15,600 kg |
