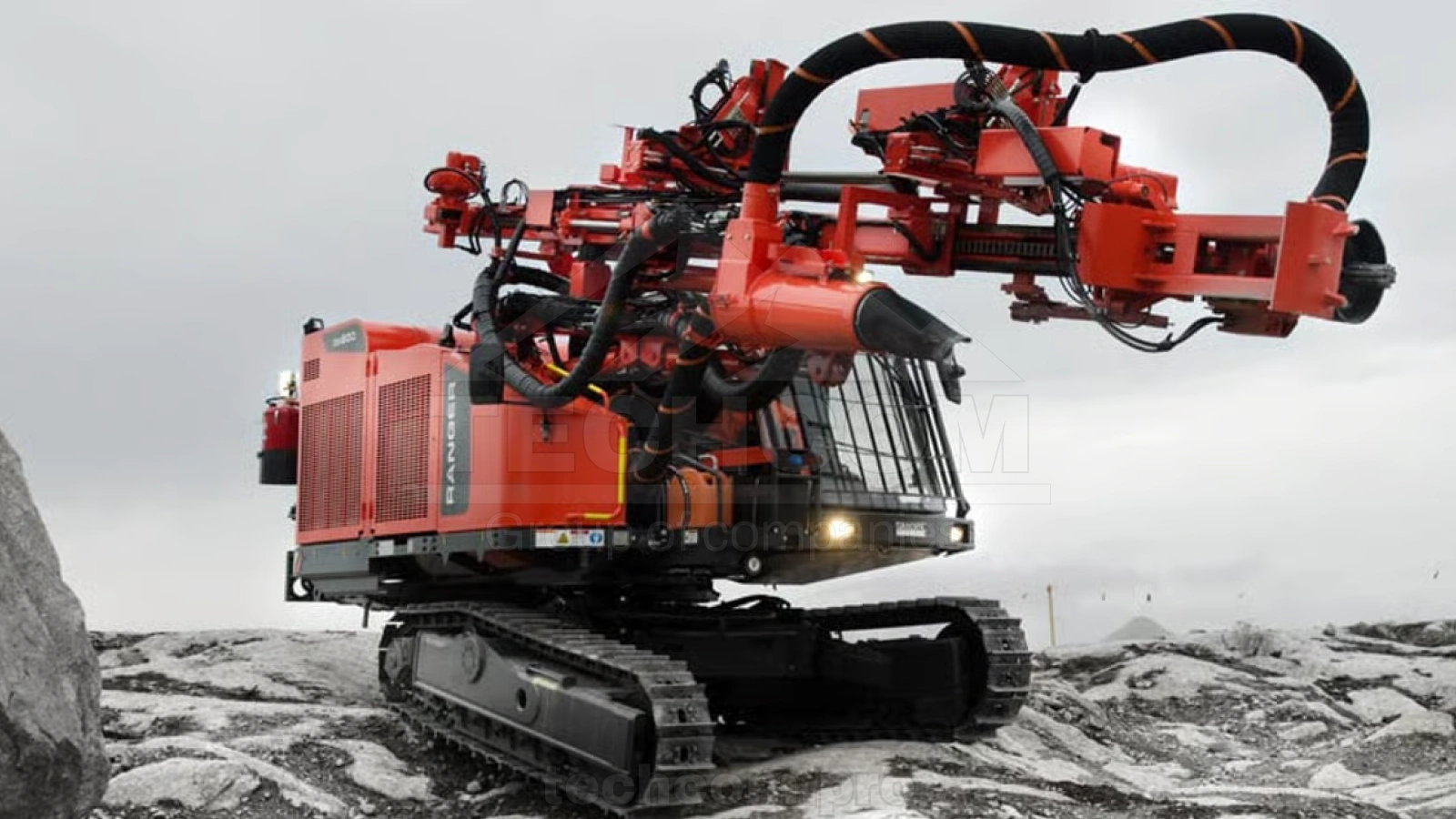

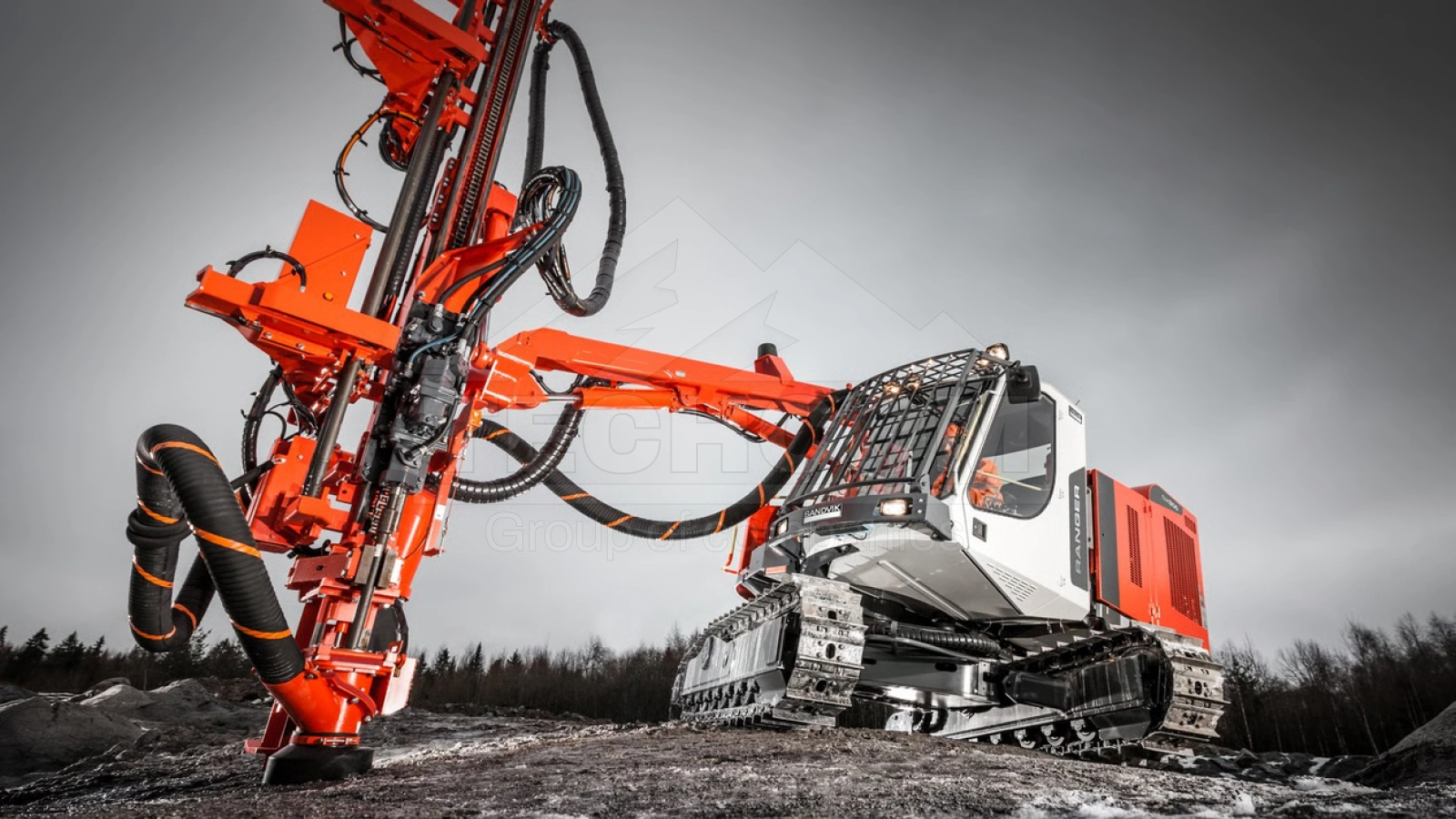

Sandvik Ranger DX700 Surface Top Hammer Drill Rig
The Sandvik Ranger DX700 is a surface top hammer drill rig designed for quarrying, road construction, pipeline projects, foundation drilling and production drilling in open pit mining operations.
Technical specifications
| Parameter | Specification |
|---|---|
| Recommended hole diameter | 76–115 mm |
| Drill rod diameter | 45 / 51 mm |
| Hydraulic rock drill | HL710 |
| Percussion power | 19.5 kW |
| Drilling coverage | 17.6 m² / optional 26.4 m² |
| Engine type | Caterpillar C7.1 |
| Engine power | 168 kW |
| Control system | Hydraulic pilot control with Rock Pilot+ system |
| Flushing air capacity | 8.1 m³/min up to 10 bar |
| Cabin | ROPS/FOPS with air conditioning |
| Total weight | 15 200–15 600 kg |
The Ranger DX700 is designed for high productivity and operational reliability in difficult terrain. Features such as the revolving superstructure, reinforced stability system, automatic drilling parameter adjustment and the HL710 hydraulic rock drill help reduce downtime and improve drilling efficiency in demanding surface drilling applications.
Browse the Sandvik Ranger DX700 spare parts catalog. If the required component is not listed, please contact our team for assistance in selecting compatible OEM and aftermarket spare parts.
