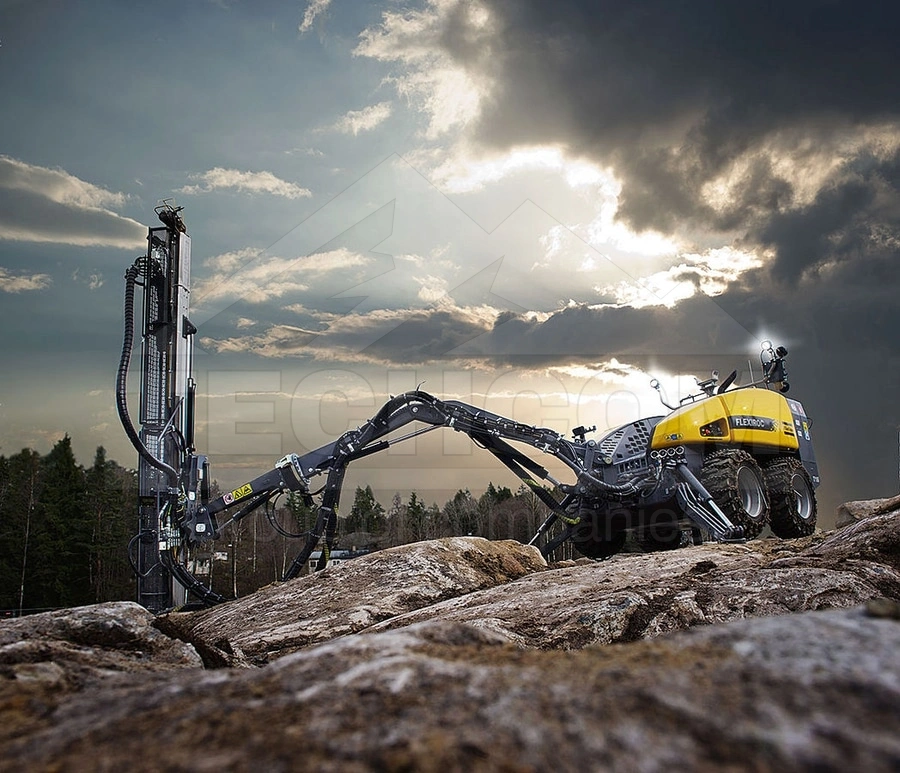

The FlexiROC T15 R is one of the smallest and most agile units in its class, designed for trenching, block stone extraction, anchoring, and minor blasting tasks. It’s a versatile choice for contractors working in construction and quarry environments with limited space.
This lightweight rig is mounted on a four-wheel platform and can be easily transported due to its 2.8-ton weight. Remote control operation enhances safety and enables access to hard-to-reach locations. The top hammer method allows for hole diameters up to 45 mm using a wide range of compatible rods and shanks.
Thanks to its compact design, hydraulic feed system, and optional dust suppression, the T15 R is widely used for rock splitting, block stone work, and slope stabilization. Spare parts and configuration kits are available to suit your needs.
Key Benefits
- Compact and easy to relocate (2.8 t)
- Remote-controlled for greater operator safety
- Multiple tooling options available
- Up to 9 m hole depth with 3.1 m rods
- Optional dust collector and anchoring setup
Technical Specifications
| Parameter | Value |
|---|---|
| Engine |
Tier 3 compliant Deutz TD 2009 L04 diesel engine, 46 kW @ 2500 rpm |
| Feed Extension | 600 mm |
| Feed Speed (max) | 1.5 m/s |
| Feed Force (max) | 4 kN |
| Pullback Force (max) | 6 kN |
| Drilling Method | Top hammer |
| Recommended Hole Diameter | 22–45 mm |
| Max Depth | 9 m (with 3.1 m rods) |
| Compatible Rods | R25, SR28 + MF rods |
| Dust Collector | DCT 110D dust control system, 8 filter modules, 300 l/s, 4 m² |
| Compressor | Atlas Copco C55 C106GD |
| Output | 8.5 bar, 23 l/s |
| Hydraulic System | 3 gear pumps, radiator cooling |
| Weight (no tooling) | 2,800 kg |
| Rock Drills (Options) | COP 1019HF / 1022HF / 1028 |
| Impact Energy | 4.5–5.5 kW |
| Impact Frequency | 53–73 Hz |
| Rock Drill Weight | 50–55 kg |
Looking for a compact rig with dependable performance? Get in touch to explore configurations and receive tailored recommendations.
