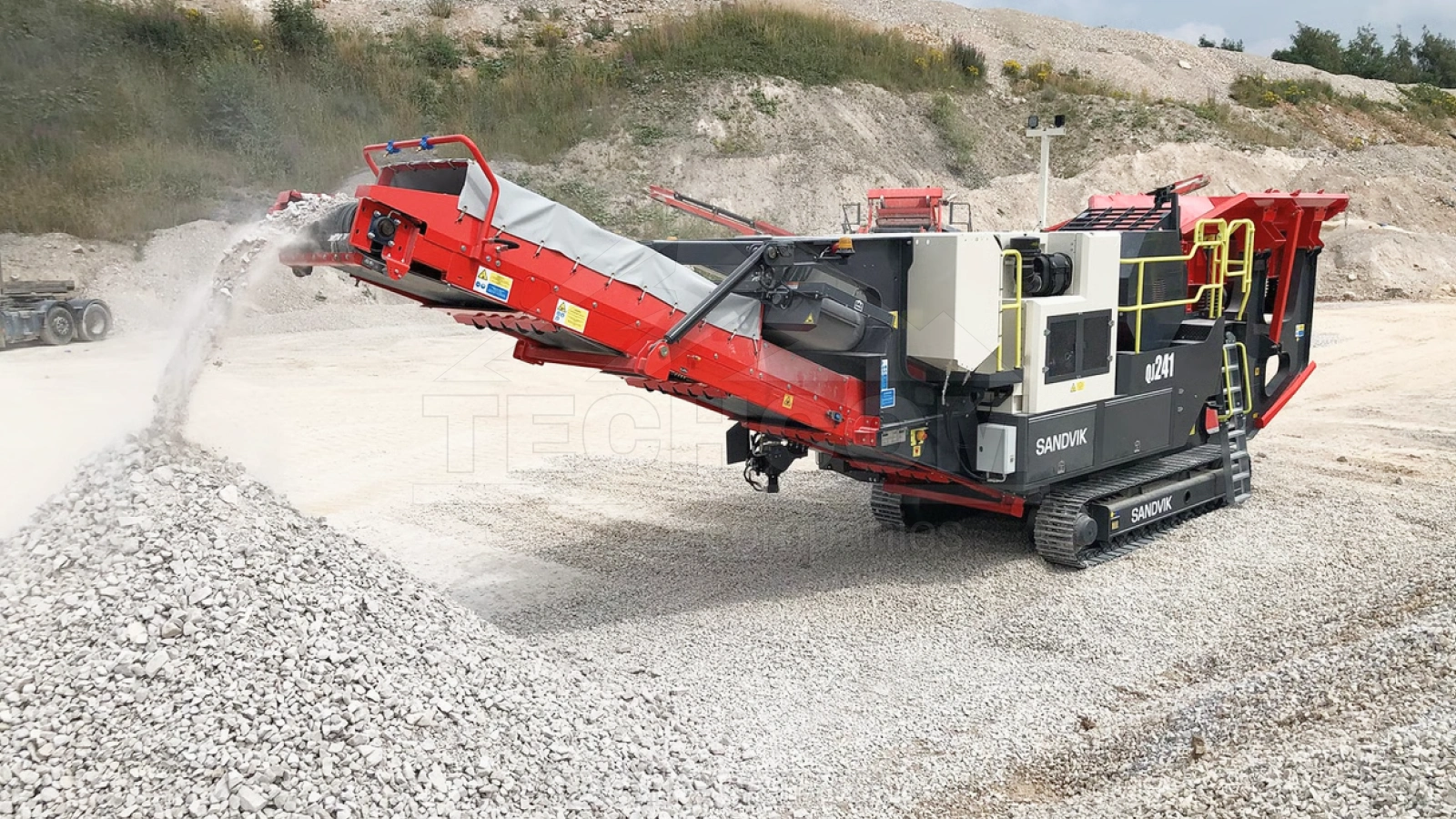

Tracked Jaw Crusher Sandvik QJ241
The Sandvik QJ241 is the most compact model in Sandvik’s world-renowned range of tracked jaw crushers. Designed for quarrying, demolition, recycling and aggregate production, this highly efficient machine combines powerful crushing performance with excellent mobility and low operating costs, making it an ideal solution for small and medium-sized operators.
Technical Specifications
| Parameter | Value |
|---|---|
| Crusher Type | Single-toggle C10 jaw crusher |
| Feed Opening | 1000 × 650 mm |
| Maximum Crusher Speed | Up to 312 rpm |
| CSS Adjustment Range | 50–130 mm |
| Maximum Feed Size | 520 mm |
| Capacity | Up to 225 tph |
| Hopper Capacity | 4.95 m³ |
| Feeder Type | Hydraulic variable-speed grizzly feeder |
| Main Conveyor Width | 800 mm |
| Natural Fines Conveyor Width | 650 mm |
| Engine | CAT C7.1 Stage V / T4F, 168 kW (225 hp) |
| Optional Engine | Cummins Stage V / EPA T4F, 188 kW (252 hp) |
| Magnet | Single-pole self-cleaning overband magnet |
| Track Width | 400 mm |
| Travel Speed | 0–1.10 km/h |
| Maximum Incline | 20° |
| Transport Dimensions (L × W × H) | 13.90 × 2.52 × 3.22 m |
| Operating Dimensions (L × W × H) | 13.74 × 4.19 × 3.86 m |
| Operating Weight | 33,500 kg |
Looking for Sandvik spare parts and replacement components? Contact our specialists to request pricing and expert assistance.
