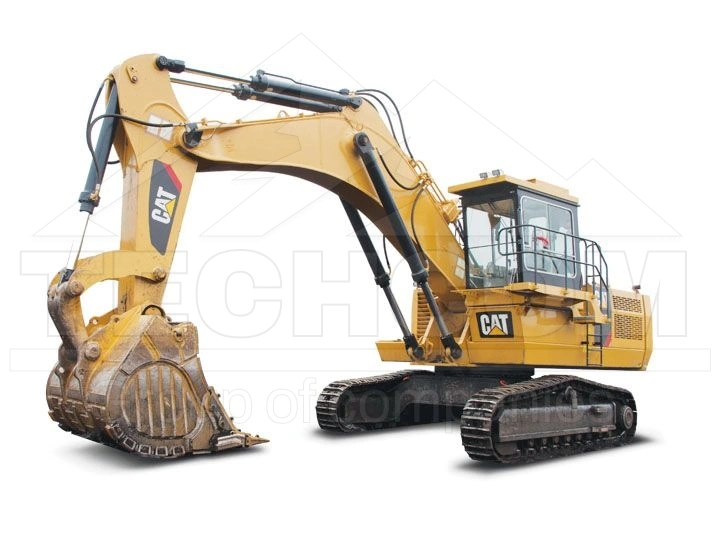

The CAT 6015 and 6015 FS are heavy-duty hydraulic excavators built for high-performance operation in mining and large-scale earthmoving projects. With a robust design and advanced hydraulic system, these machines ensure efficient digging cycles, even under harsh working conditions.
The front shovel version (6015 FS) features a patented boom design that enables faster hydraulic response by reducing cylinder cross-section. Both versions can be equipped with either a CAT C18 engine delivering 522 kW (700 hp) or a Cummins QSK19 engine rated at 477 kW (640 hp), providing operators with flexibility based on project needs. The separate closed-loop swing circuit preserves lifting performance during rotation, while onboard diagnostics and maintenance-friendly layouts minimize downtime.
Key Advantages
- Independent swing circuit ensures smooth boom operation without performance drop during machine rotation.
- Fast and intuitive electronic diagnostics with visual and audible alerts for key systems.
- Easy access to the engine bay and service points simplifies scheduled maintenance tasks.
- Compatibility with a wide range of genuine CAT and aftermarket CTP spare parts.
Technical Specifications
| Parameter | CAT 6015 |
|---|---|
| Engine power output | CAT C18 (522 kW / 700 hp) or Cummins QSK19 (477 kW / 640 hp) |
| Standard bucket capacity | 7 m³ |
| Fuel tank capacity | 1300 L |
| Main hydraulic pumps | Two variable displacement axial-piston pumps |
| Max swing circuit pressure | 32 MPa |
| Max pressure – implement and travel circuits | 30 MPa |
| Max swing speed | 5.4 rpm |
| Max drawbar pull | 652 kN |
| Travel speed | 2.7 km/h |
For mining, quarrying, or large excavation projects, the CAT 6015 and 6015 FS deliver the power and reliability required for non-stop productivity. Contact us to learn more or request customized configurations and spare parts options.
