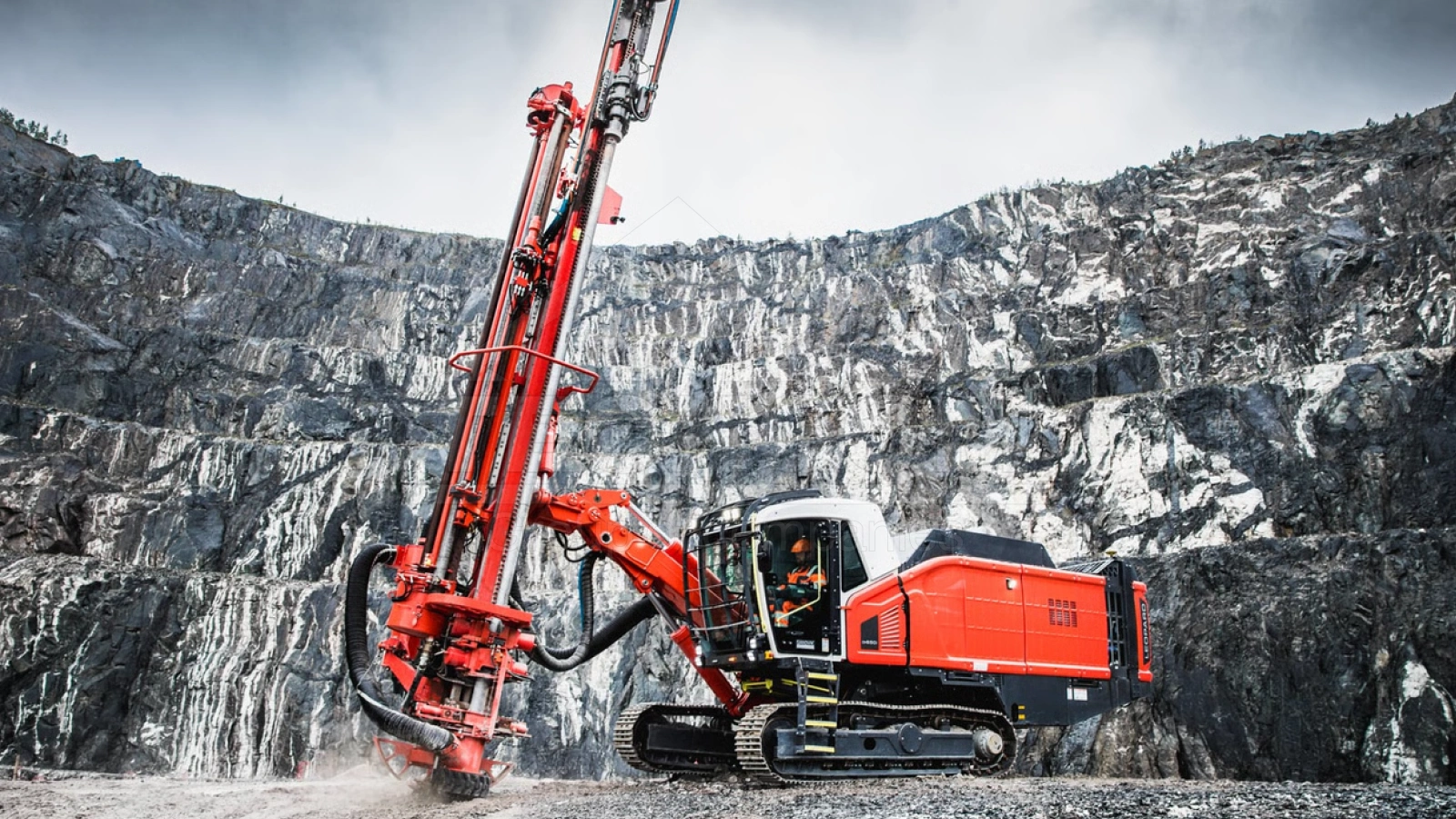

Drilling Rig Leopard DI650i Sandvik
The Sandvik Leopard DI650i is a high-pressure down-the-hole drilling rig engineered for demanding surface mining and quarrying operations. Powered by a 403 kW Caterpillar C15 engine, the machine supports hole diameters from 115 to 203 mm and drilling depths of up to 53.6 m. Its high-capacity air system, heavy-duty rotary head options and intelligent control technologies ensure efficient drilling performance, high penetration rates and reliable productivity in a wide range of surface drilling applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Drilling Method | Down-the-hole (DTH) |
| Recommended Hole Diameter | 115–203 mm |
| DTH Hammer Size | 4", 5", 6" |
| Rotary Head Options | HTRH6 / MRH6 |
| Maximum Hole Depth | 53.6 m |
| Pipe Diameter | 89–140 mm |
| Engine | Caterpillar C15, 403 kW at 1,800 rpm |
| Flushing Air Capacity | 28.3 m³/min |
| Working Pressure | Up to 30 bar |
| Operator Cabin | Sandvik iCab |
| Safety Certification | ROPS and FOPS |
| Transport Length | 12.4 m |
| Transport Width | 3.0 m |
| Transport Height | 3.5 m |
| Operating Weight | 25,100 kg |
| Tramming Force | 168 kN |
