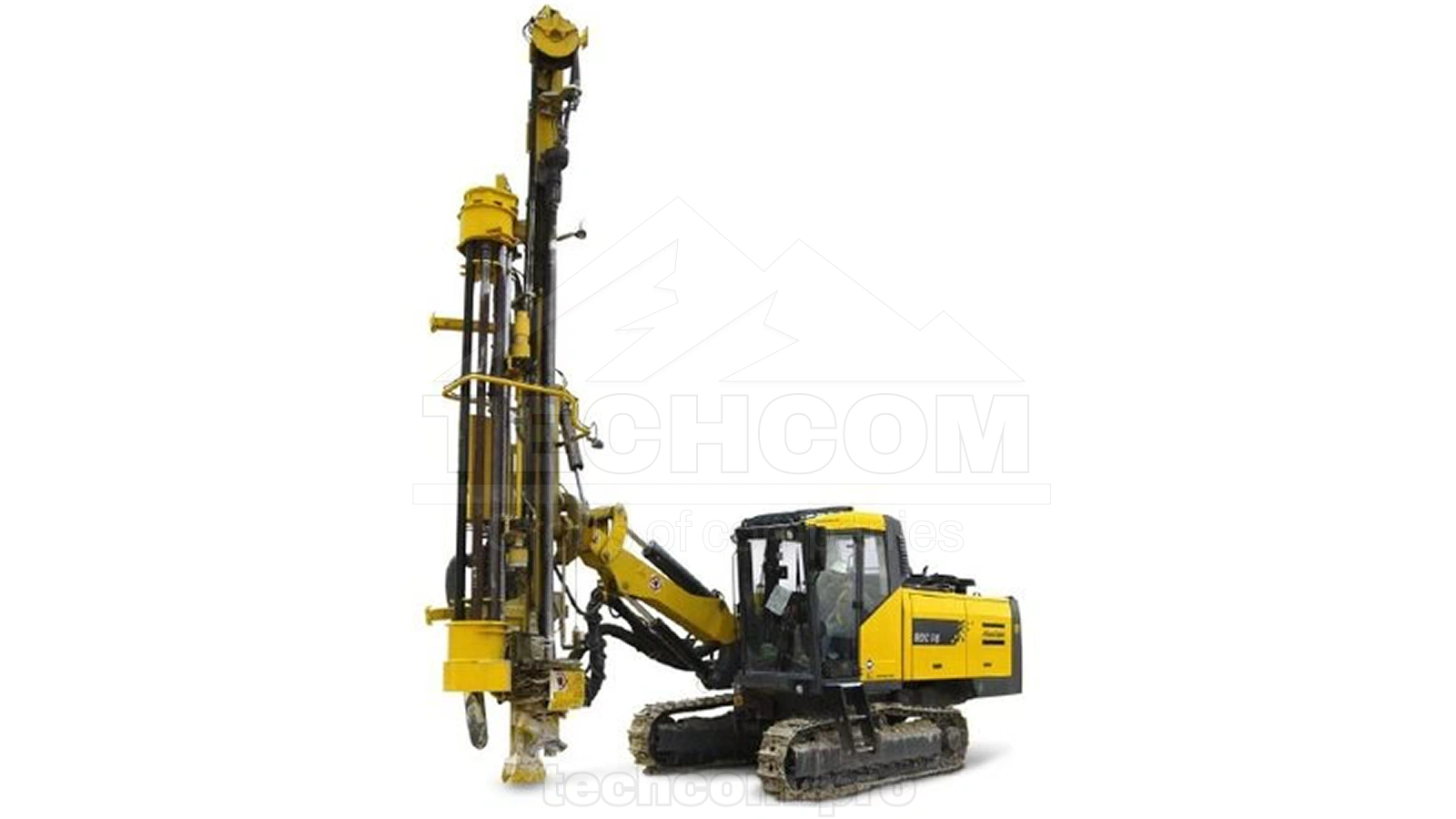

The FlexiROC D45 is a crawler-mounted machine built for precision in surface operations such as open-pit mining and quarry work. With powerful air flushing and low noise levels, it ensures stable performance even in demanding conditions.
Its hydraulic feed system includes a movable dust hood and breakout function, supporting efficient rod changes via a carousel-type magazine with 8 rods (5 m each), enabling holes up to 36 meters deep. A CAT C7 Tier III engine and high-performance screw compressor from Epiroc (Atlas Copco) ensure constant productivity. Optional configurations include horizontal boring, water-injection, cold-weather kits, and centralized lubrication.
Key Benefits
- Powerful CAT C7 diesel engine (186 kW) with Atlas Copco compressor (213 l/s, 14 bar);
- Efficient feed system with automatic force control and anti-jamming features;
- Up to 36 m depth capability using 8 × 5 m rods;
- Advanced dust collection with DCT 150F (15 filters, 320 l/s);
- Modular configuration for specialized terrain and low-temperature operation.
Technical Specifications
| Parameter | FlexiROC D45 |
|---|---|
| Engine | CAT C7, Tier III, 186 kW @ 2200 rpm |
| Feed system | Hydraulic, 1300 mm extension, 0.92 m/s feed speed, 20 kN thrust, 24 kN pullback |
| Rod magazine | Carousel type, 8 rods × 5 m |
| Dust suppression | DCT 150F, 15 filters, 320 l/s |
| Rotation head | DHR 45H, 2100 Nm torque, 75 rpm, 2 3/8" Reg connection |
| Compressor | Atlas Copco, 213 l/s, 14 bar |
| Hole specs | Diameter: 90–130 mm, Depth: up to 36 m |
| Hammer | COP 44 |
| Operating weight | 15,700 kg (standard setup) |
| Optional features | Horizontal setup, water flushing, winter package, automatic lubrication |
Looking for rugged equipment from Epiroc? Contact us to explore your options and order spare parts or a full rig setup.
