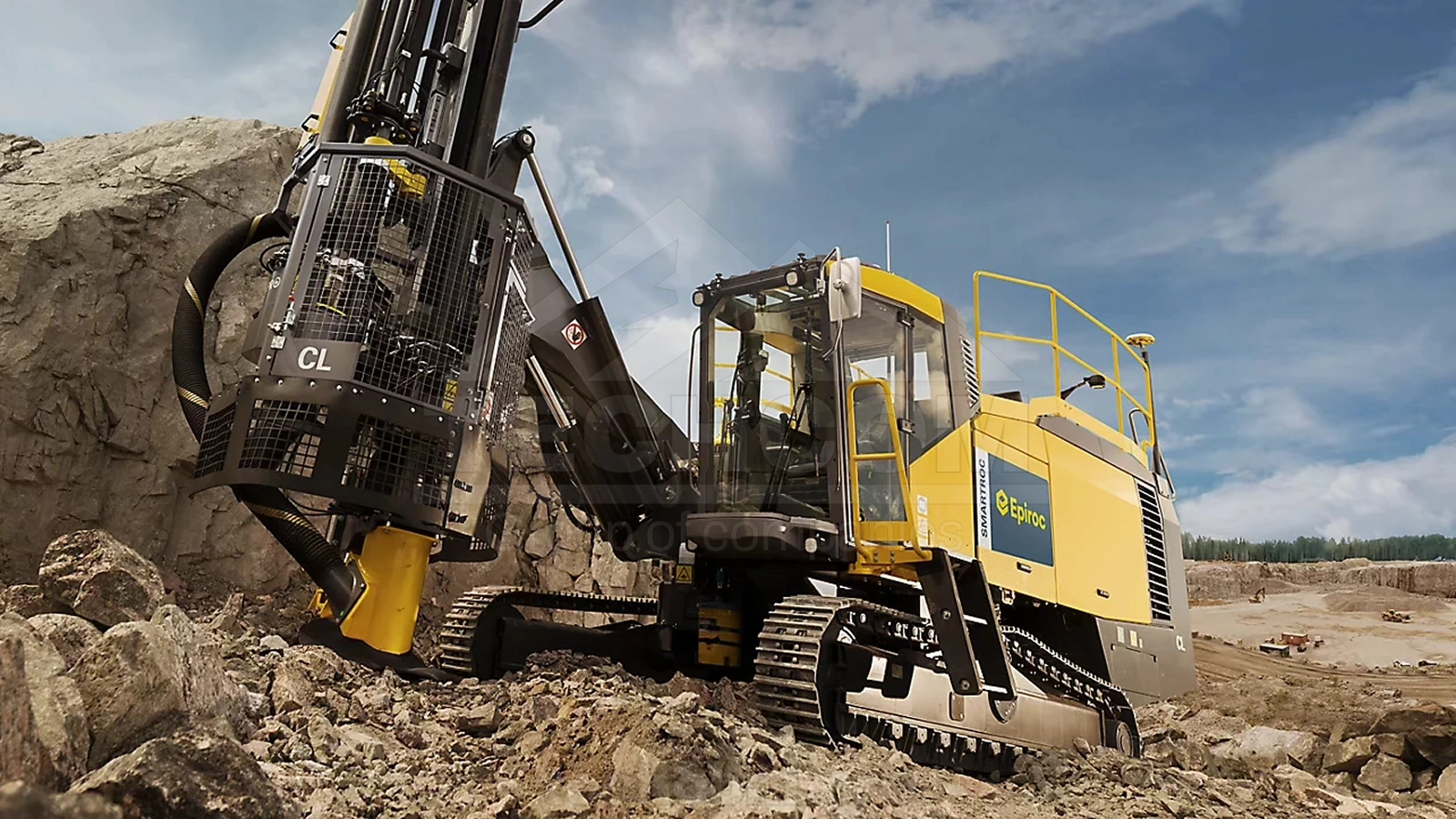

Drilling Rig Epiroc SmartROC CL

The SmartROC CL by Epiroc is a heavy-duty surface rig engineered for high-volume drilling in large-scale quarrying and mining operations. Designed to handle extended drilling depths and oversized hole diameters, it offers unmatched reliability, straightness, and fuel efficiency.

Using Epiroc’s exclusive COPROD system, the CL model delivers top-tier performance by combining rotational precision with direct-impact force transfer. The system uses a threaded outer tube and an internal impact rod in floating suspension, ensuring superior energy delivery to the rock with minimal wear and no thread losses.

Key Features

• Compatible with COPROD 102 mm, 127 mm, and 140 mm strings
• Designed to accommodate borehole sizes from 115 mm up to 216 mm
• Equipped with the robust COP 5060CR rock drill
• Delivers high-precision boreholes with excellent alignment, even in fractured rock
• Minimized fuel consumption and total cost of ownership
• Extended component life with reduced service intervals

High-Efficiency COPROD System

The impact rods align seamlessly inside the string, transmitting force directly without engaging threads. Air flows between rod and tube, flushing debris efficiently and allowing precise control of air volume — essential in unstable ground conditions.

SmartROC CL is ideal for operators seeking accurate drilling in unstable ground, with reduced fuel costs and optimized performance per blast. With Epiroc’s original parts and global support network, your operation is backed for long-term performance.

Need help choosing the right configuration? Our team will help configure the right solution and provide accurate pricing. Request a consultation.
