Epiroc Diamec 232

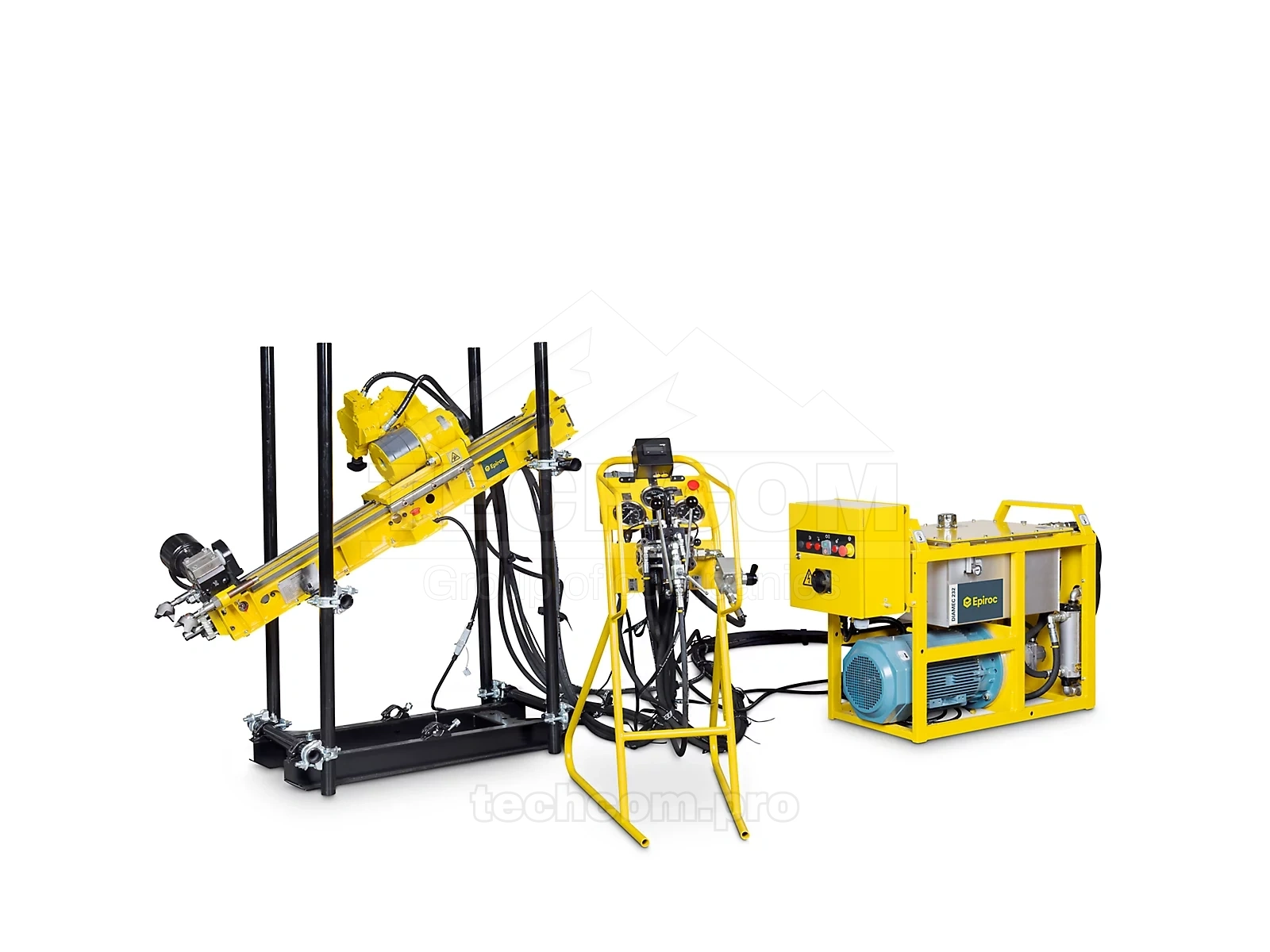

Diamec 232 by Epiroc is a lightweight core drill rig featuring full hydraulic control, engineered for precision in confined workspaces. Designed for cemented and exploration holes, it works effectively in tight tunnels, galleries, and limited-access sites. Lightweight and modular, the rig is quickly moved without interrupting ongoing work.
The patented rotation unit includes a hydraulic chuck for secure pipe clamping. A spring-driven locking system on the rod holder ensures both firm holding and safe operation. The rig supports HFC fire-resistant fluids and contains no aluminum, meeting coal mine standards. All functions are handled by one operator via a remote panel. Both electric and diesel drive options are offered.
Advantages
- Reliable performance in confined underground and surface spaces
- Full hydraulic control via a single remote console
- Easy to transport, quick to set up
- Approved for HFC fluids in coal mine applications
- Tool-free rod handling
Technical Specs
| Max drilling depth (AK / AGM) | up to 120 m |
| Hole diameter | up to 76 mm |
| Feed travel | 850 mm |
| Thrust / Pullback force | 20 / 15 kN |
| Feed speed (up / down) | 0.8 / 1.0 m/s |
| Advance rate | up to 20 m/min |
| Rotation range | 550–2200 rpm |
| Max torque | 250 Nm |
| Rod holder diameter | 52 mm |
| Power unit | Electric 15 kW / Diesel 26 kW (Deutz) |
| Total weight | 563–738 kg |
Optional Equipment
- TRIDO® 45H flushing pump (45 l/min, 45 bar)
- Hose and spare part kits
- Field and auxiliary tool sets
- Rod types: aluminum, steel, composite
Need a space-efficient core rig that delivers consistent performance? Get in touch with our team for setup options and expert support.
