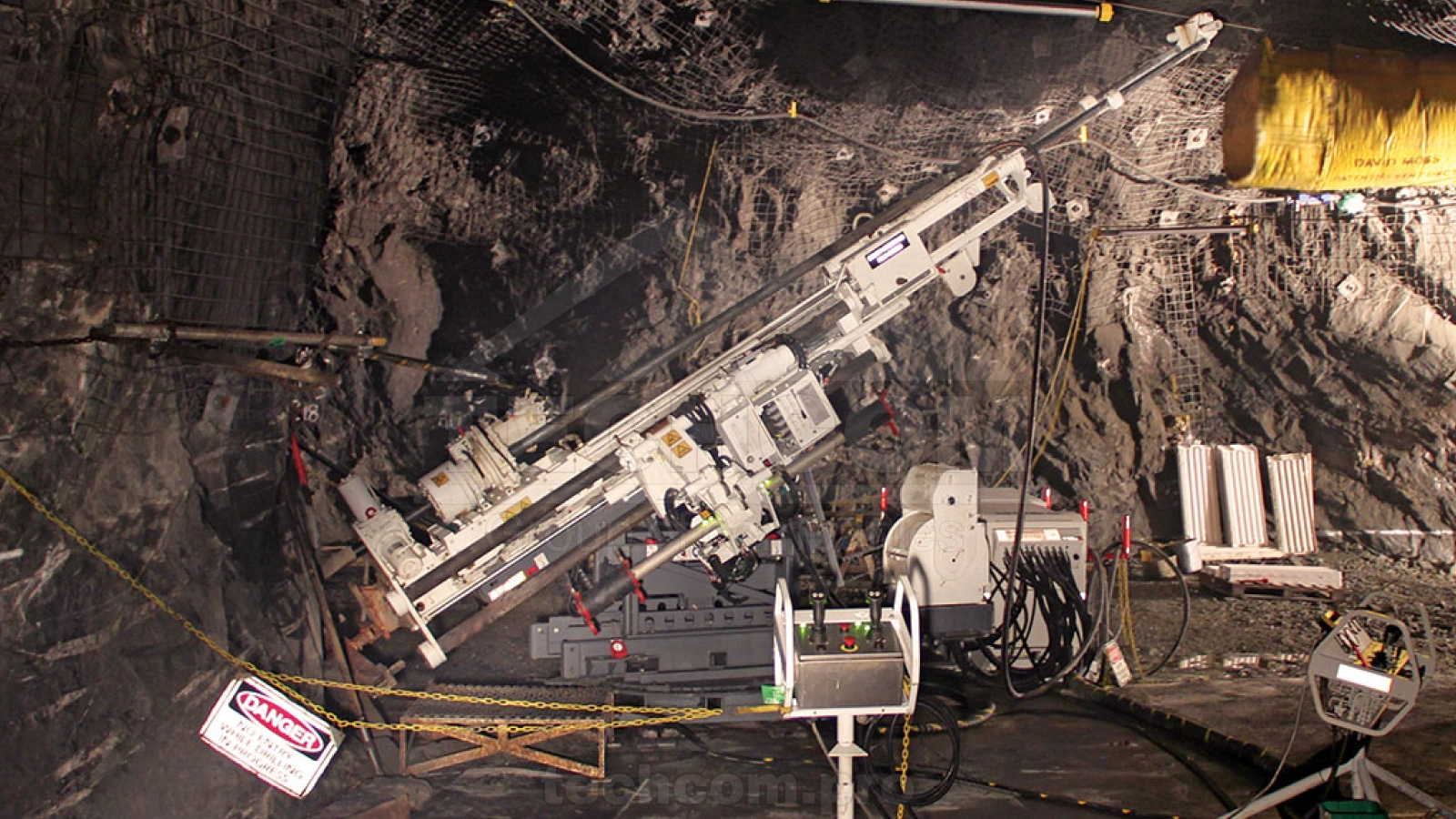

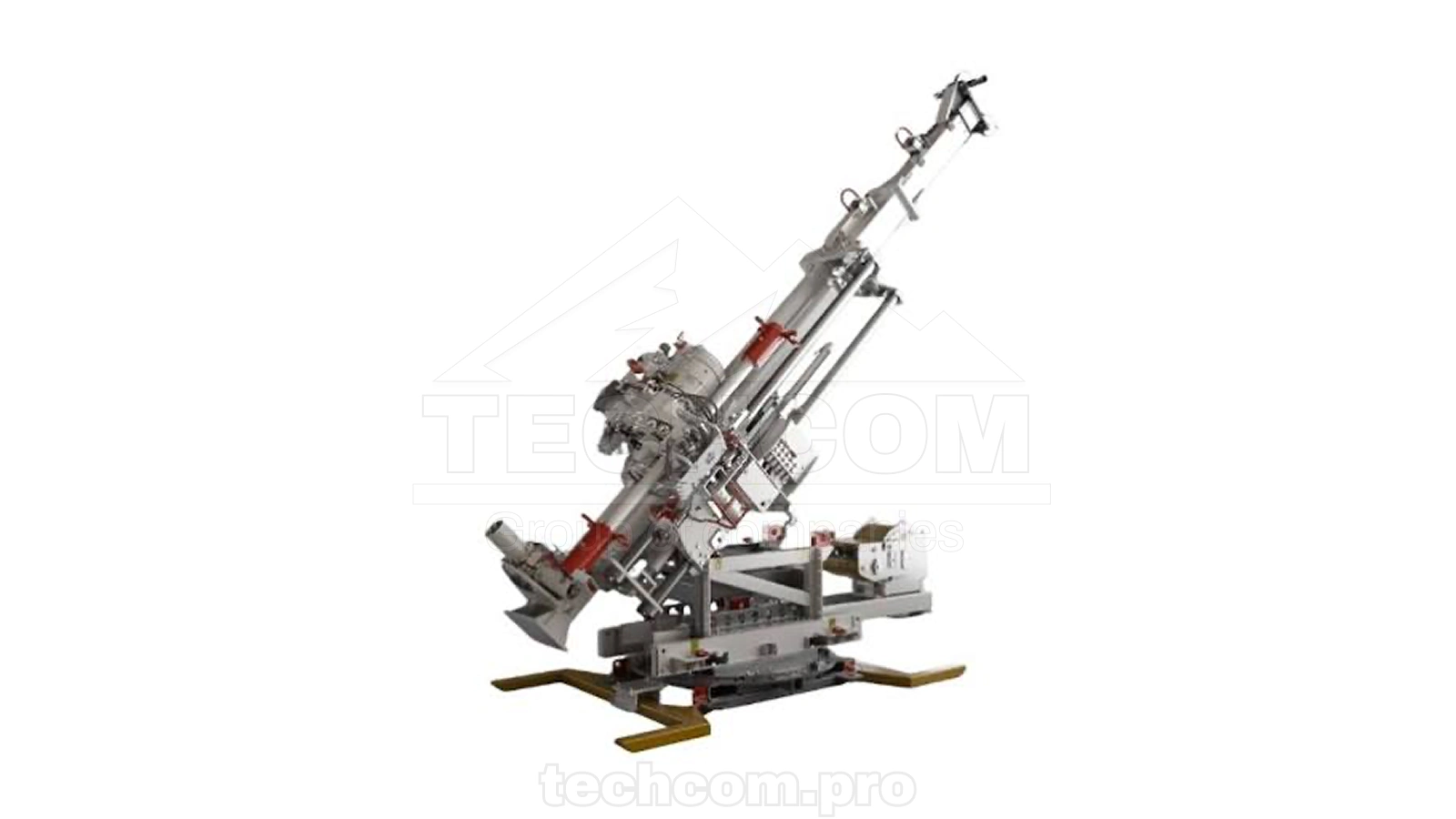

Boart Longyear LM110 Underground Coring Drill
The Boart Longyear LM110 is a modular underground diamond coring drill developed for deep-hole mineral exploration. It is designed for demanding underground applications where reliable performance, precise drilling control and flexibility of configuration are essential.
The modular construction allows the drilling system to be adapted to different operating conditions and exploration requirements. The LM110 combines a load-sensing hydraulic system with proportional controls, providing smooth control of rotation and feed while improving hydraulic efficiency and reducing unnecessary heat generation.
Boart Longyear LM110 Technical Specifications
| Drill rod sizes | AQ to HQ |
| Electric motor | 110 kW (147 hp) |
| Feed stroke | 1830 mm (72 in) |
| Feed force | 63.6 kN (14,298 lbf) |
| Pull force | 127.7 kN (28,705 lbf) |
| Drill head torque | 430 N·m at 1200 rpm; 1088 N·m at 500 rpm |
| Vertical drilling depth | Up to 990 m (3248 ft) with NRQ rods |
| Hydraulic system | Load-sensing hydraulic system |
Drilling capacity and performance may vary depending on rod size, ground conditions, drill configuration and installed options.
LM PQ / LMPQ Configuration
The LM110 platform is also used as the basis for the Boart Longyear LM PQ (LMPQ) underground drilling configuration. Boart Longyear developed this version from the LM110 and Nitro-Chuck platforms with the addition of a PQ drill head.
This configuration extends the capabilities of the LM platform for PQ drilling while retaining the modular approach of the LM110 system. Components and assemblies may differ depending on the specific drill configuration.
Spare Parts for Boart Longyear LM110
TechCom supplies spare parts and components for Boart Longyear LM110 underground coring drills and related LM PQ configurations. The available range includes hydraulic components, pumps, manifolds, valves, hoses, power pack parts, feed system components, drill head parts, electrical components and other assemblies used in the drilling system.
Browse our Boart Longyear LM110 spare parts or contact us with the required part number to check availability.
