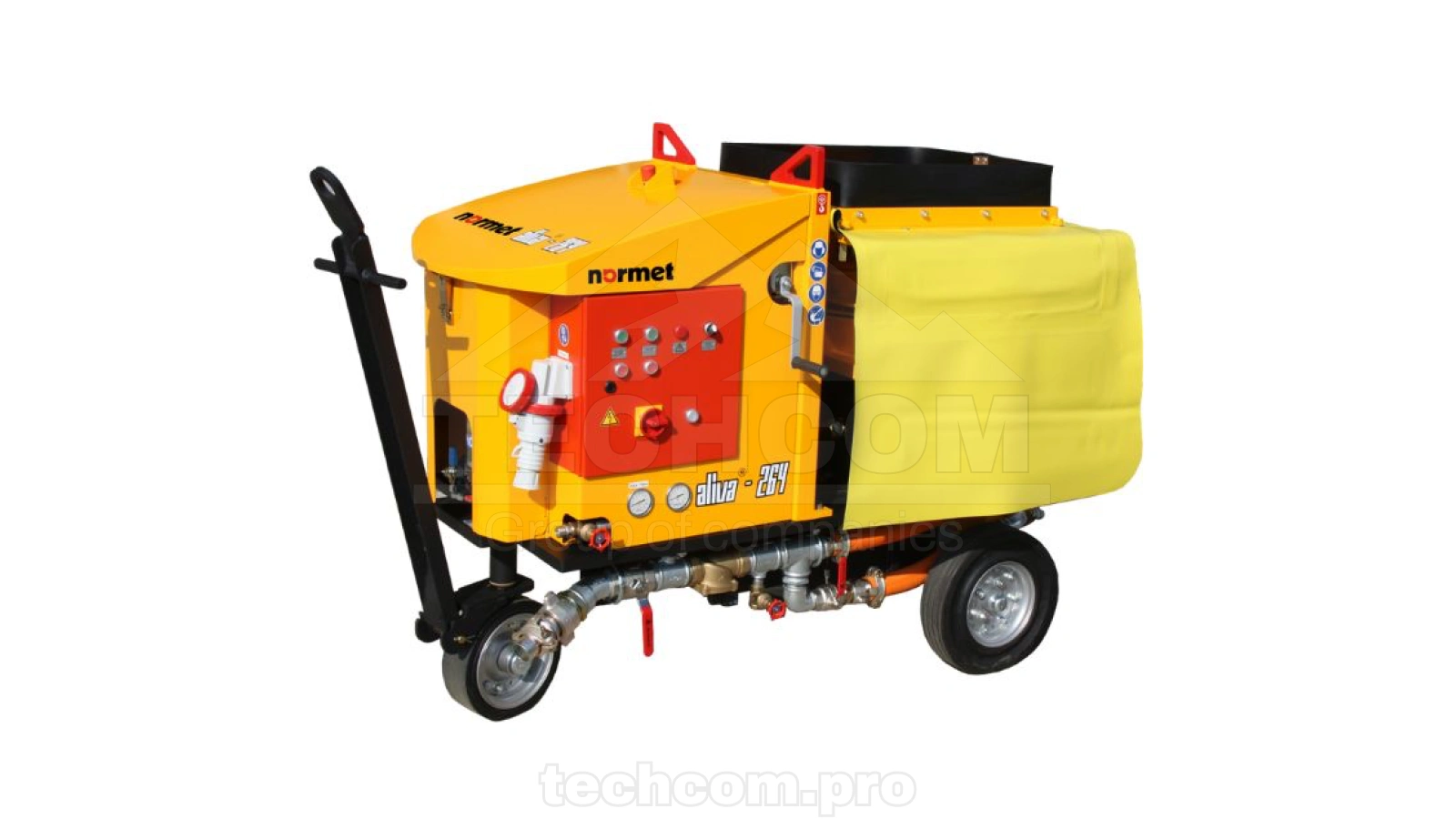

Aliva 264 Concrete Spraying Machine
The Aliva 264 is a rotor-type concrete spraying machine designed for dry, semi-wet and wet shotcrete applications in mining, tunnelling and slope stabilization projects. The equipment ensures reliable concrete transport and consistent spraying performance in demanding underground working conditions.
The machine features an optimized rotor design that provides an ideal chamber filling rate for efficient material flow and high productivity. The innovative HPO (Hopper Power Opener) system allows a single operator to open the dosing hopper with minimal effort, while the optional RLC (Rotor Lifting Crane) enables safe rotor removal during maintenance operations, improving operator safety and simplifying service procedures.
Technical specifications – Aliva 264
| Parameter | Value |
|---|---|
| Machine type | Rotor concrete spraying machine |
| Application | Dry, semi-wet and wet shotcrete |
| Drive type | Electric |
| Operating voltage | 380–480 V / 50–60 Hz |
| Theoretical output | 7.1 – 13.1 m³/h |
| Maximum conveying distance | Dry: 300 m horizontal / 100 m vertical |
| Wet: 40 m horizontal / 15 m vertical | |
| Recommended hose diameter | DN 60 |
| Rotor capacity | 18.5 L |
| Weight | 1465 kg |
| Dimensions (L × W × H) | 2005 × 980 × 1405 mm |
TechCom supplies spare parts and service components for Aliva 264 concrete spraying machines, including rotor wear plates, sealing discs, dosing systems, transport hoses and maintenance kits required for reliable shotcrete operations in underground mining and tunnelling projects.
