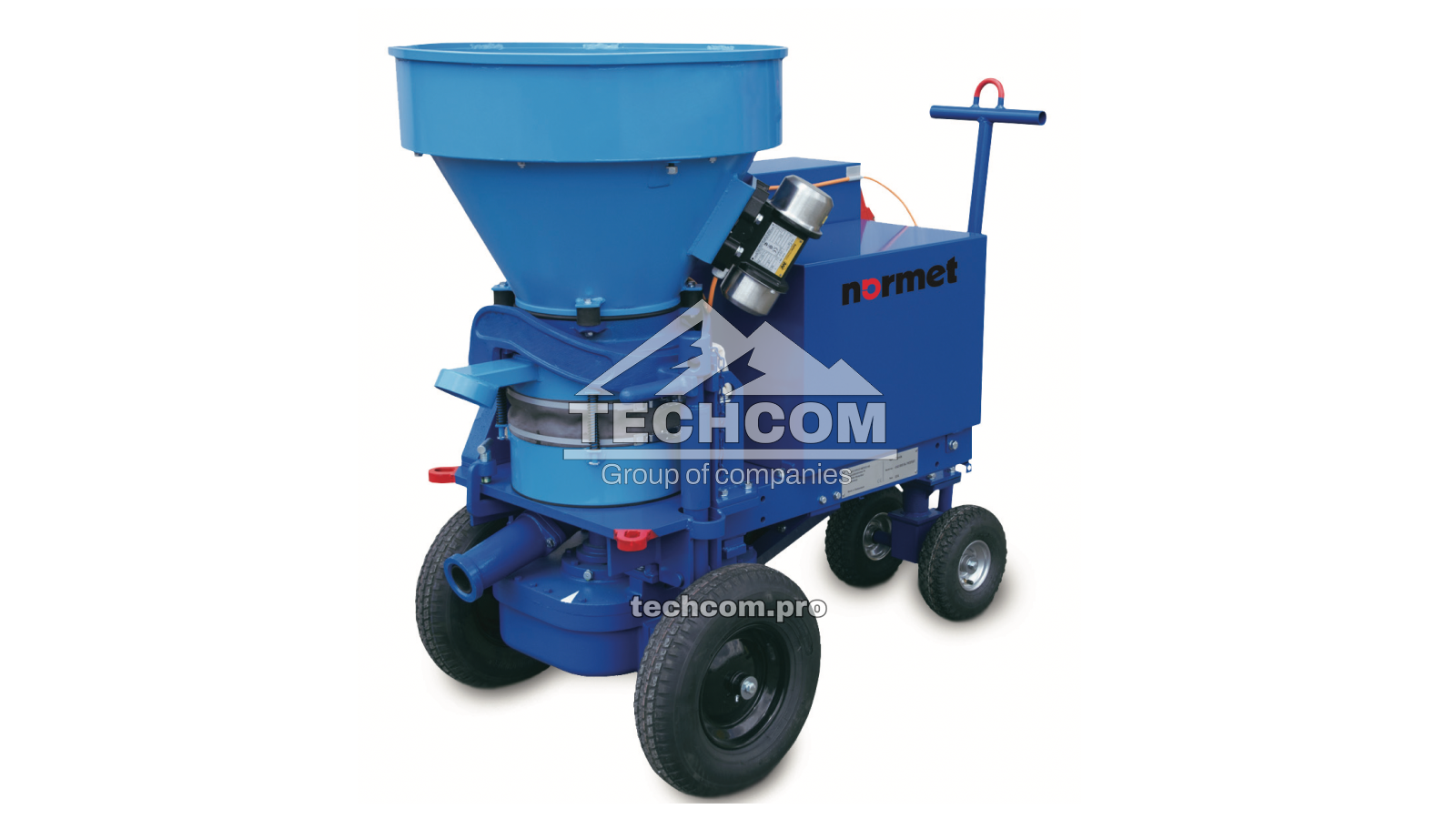

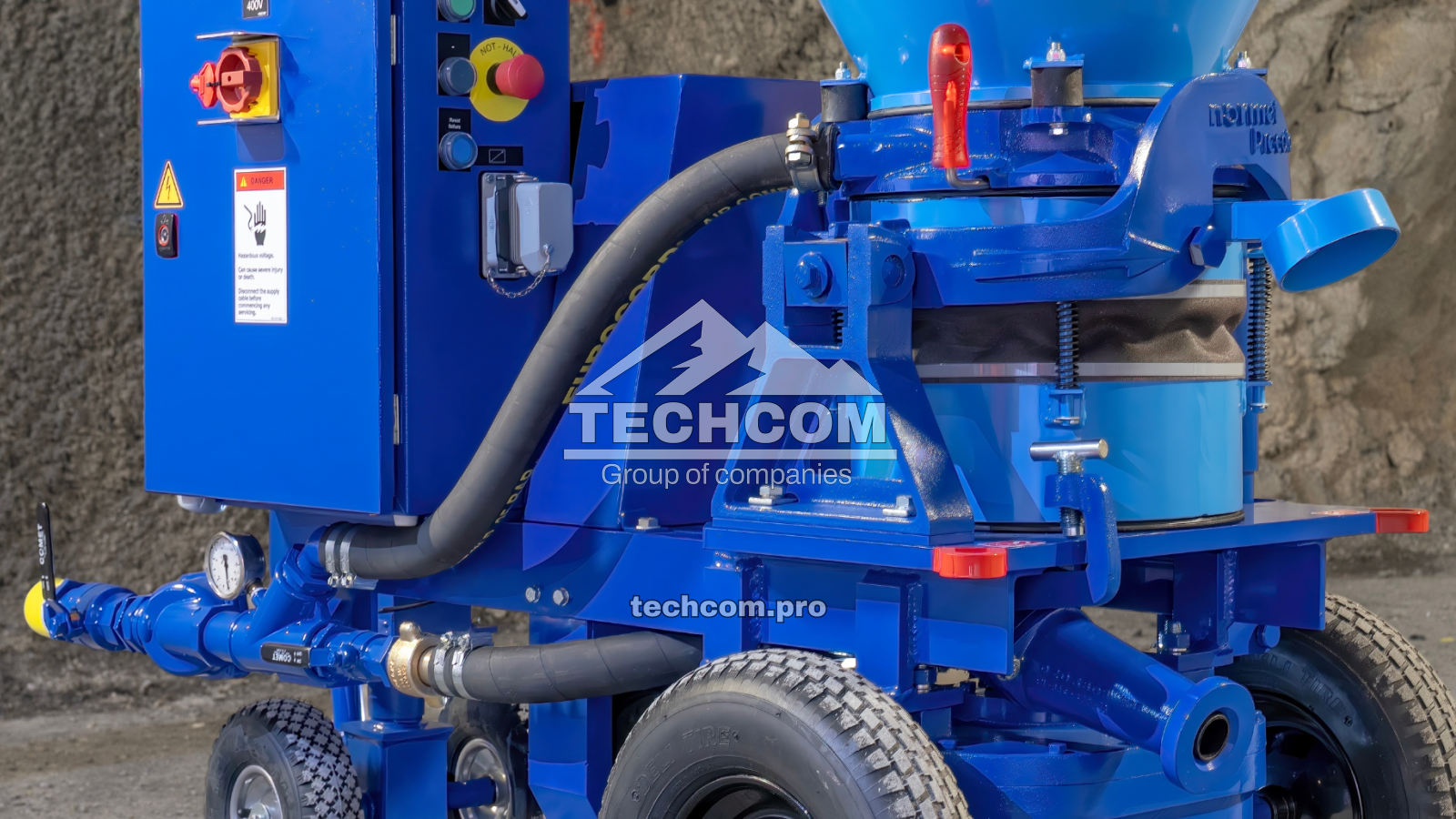

Normet Piccola Dry-Mix Concrete Spraying Pump
Normet Piccola Dry-Mix Concrete Spraying Pump
Normet Piccola is a compact dry-mix shotcrete spraying pump built on a proven rotor principle, designed for reliable operation in small to medium spraying and repair jobs. Its robust mechanical layout and straightforward setup make it a practical choice for contractors who need a service-friendly machine that performs consistently on sites with changing tasks and frequent stops.
Thanks to multiple configurations and a wide selection of nozzle kits, Piccola can be adapted to different materials and application requirements. It is commonly used for concrete repair and rehabilitation, rock support works, sealing of wet areas, fine mortar joint repairs, refractory linings, slope protection and working pits, sprayable membrane applications, as well as specialized works such as fire protection, sandblasting and conveying dry materials.
Main Advantages
- Dry-mix technology suitable for projects with interruptions and standby requirements.
- Rotor-based design focused on durability and stable day-to-day performance.
- Service-friendly construction with easy cleaning and accessible wear parts.
- Flexible configuration options, including nozzle kits and interchangeable feed/rotor components.
- Mobile, compact layout for work in confined areas and quick repositioning on site.
Technical Specifications
| Equipment type | Dry-mix shotcrete spraying pump (rotor principle) |
| Practical output range | 0.8–3.5 m³/h |
| Max. theoretical spraying capacity | 5.0 m³/h |
| Feeding hopper volume | 45 L |
| Feeding hopper / filling height | 1100 mm |
| Max. conveying distance / height | 500 / 100 m |
| Recommended max. grain size | 4–6 mm |
| Discharge spout | Ø 25 / 32 / 40 / 50 mm |
| Control system | Central control box, dust- and splashproof; 24V DC |
| Electrical protection class | IP55 |
| Power pack options | 2-speed electric motor / variable-speed electric motor / variable-speed compressed air motor |
| Dimensions (L × W × H) | 1485–1510 × 735 × 1100 mm |
| Weight | 450–470 kg |
Applications
Normet Piccola is selected for repair works on concrete structures, local shotcrete support tasks and other small-to-medium spraying operations where mobility, fast setup and reliable dry-mix processing are important. It is also used for specialized lining and protection applications where precise nozzle selection and stable conveying performance are required.
Contact our team to check availability, discuss configuration options, and get assistance with selecting spare parts and consumables for the Normet Piccola.
