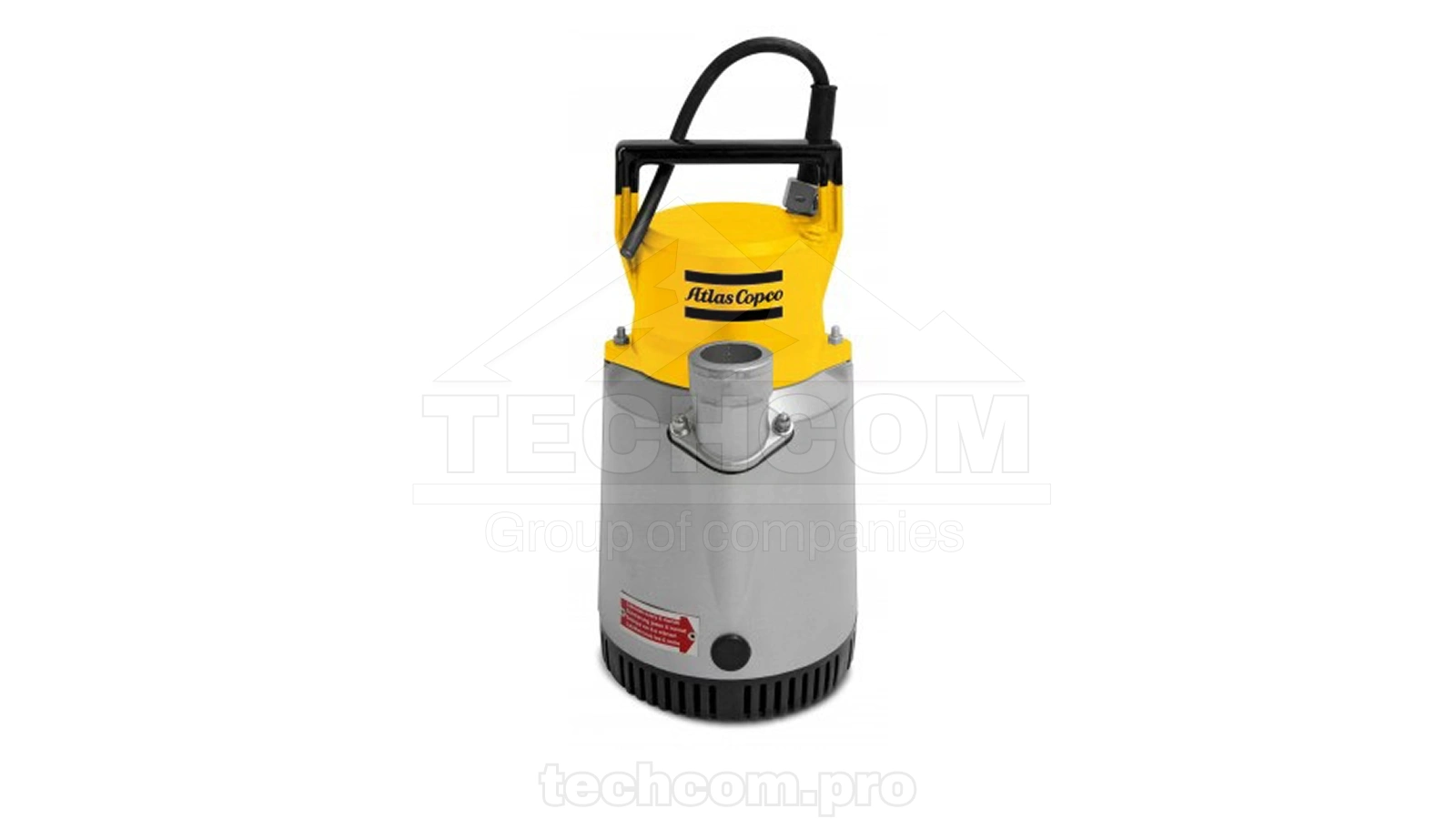

The WEDA 10 by Epiroc is a compact submersible dewatering pump designed for handling dirty and lightly contaminated water with particles up to 4 mm. Ideal for construction, civil works, and municipal applications, it provides reliable performance in demanding environments.
This medium-head electric pump operates at depths up to 20 meters and is suitable for water temperatures up to 40°C. With its robust yet lightweight aluminum housing, the WEDA 10 offers excellent portability and ease of maintenance, making it ideal for use in narrow or hard-to-reach spaces. The pump is available in single-phase (230V, 500 l/min) and three-phase (400V, 600 l/min) versions.
Key Benefits
- Durable and lightweight aluminum housing and components
- Submersible to 20 meters, with IP68 protection class
- Wear-resistant hydraulics with nitrile rubber and chrome-alloy impeller
- Pre-installed thermal protection on all motor windings
- Automatic lubrication via double mechanical shaft seal in oil chamber
- Oil- and abrasion-resistant HO7RN-F cable (15 meters)
- Quick and easy seal replacement with standard seal kits
Technical Specifications
| Parameter | 230V (1~) | 400V (3~) |
|---|---|---|
| Rated Power (kW) | 1.0 | 1.0 |
| Max Power (kW) | 1.5 | 1.4 |
| Flow Rate (l/min) | 500 | 600 |
| Max Head (m) | 16 | |
| Max Particle Size (mm) | 4 | |
| Output Diameter | 2" (hose or BSP/NPT thread) | |
| Motor Speed (rpm) | 2900 | |
| Protection Class | IP68 | |
| Weight (kg) | 12.5 | |
Optional Accessories
- Float switch
- Zinc or epoxy coating for corrosion protection
- Stainless steel strainer
- Low-level water clamp
- Quick couplings (Type 1)
- Mechanical seal kits (complete or separate)
Looking for tailored pumping solutions? Contact our specialists to choose the best configuration for your needs.
