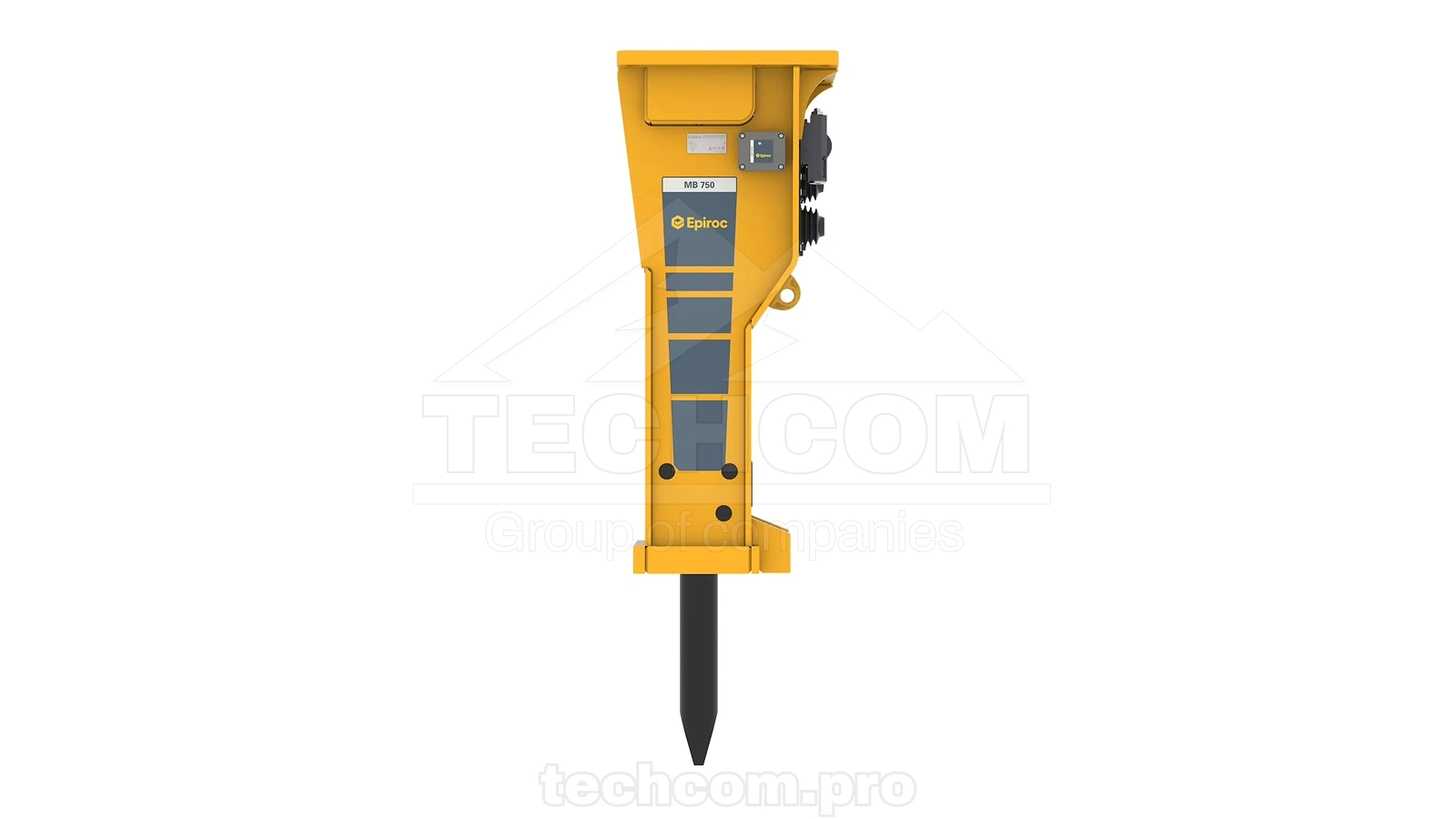

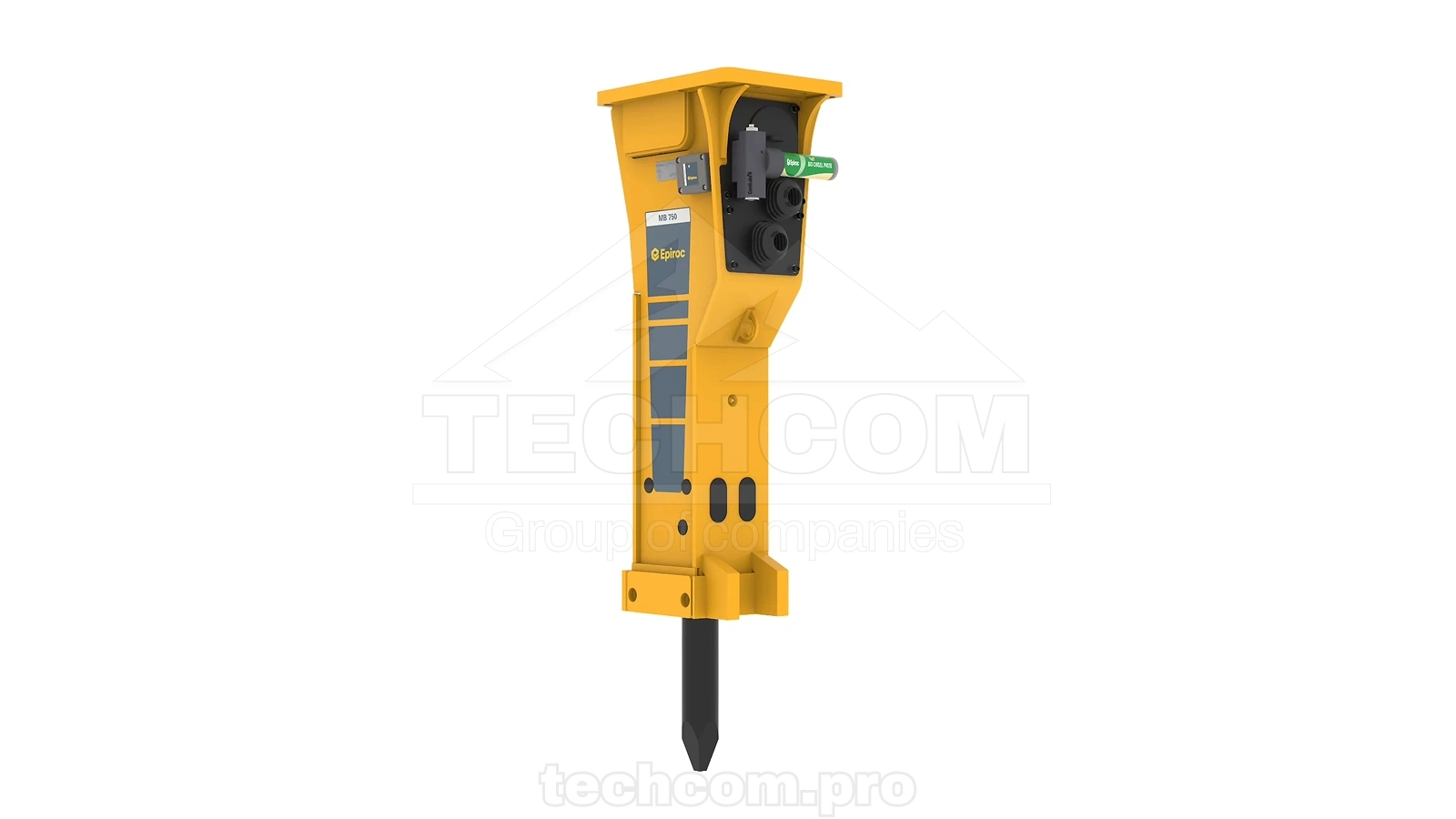

Hydraulic Breaker Epiroc MB 750

Hydraulic Breaker MB 750 Epiroc

The MB 750 is a mid-sized hydraulic breaker built for tough site conditions, including concrete removal, asphalt cutting, and rock reduction in civil and excavation works. With a compact, service-friendly design and excellent power-to-weight ratio, it suits carriers from 10 to 17 tons.

This breaker comes equipped with VibroSilenced Plus to minimize noise and vibration, includes ContiLube® II for automated lubrication, and can be optionally fitted with DustProtector to safeguard internal components from dust and debris.

Technical Highlights

• Carrier weight class: 10–17 t
• Service weight: 750 kg
• Tool diameter: 100 mm
• Tool working length: 510 mm
• Hydraulic input power: up to 34 kW
• Oil flow: 80–120 l/min
• Operating pressure: 140–170 bar
• Impact rate: 370–840 blows/min
• Guaranteed sound power level: 117 dB(A)

Optional Configuration – MB 750 DP

The MB 750 DP version is equipped with a DustProtector™ system for increased tool life and improved sealing in dusty environments. It is also available with integrated HATCON for real-time monitoring of hours, location, and service needs.

Need help selecting the right configuration? Contact us for a consultation.
