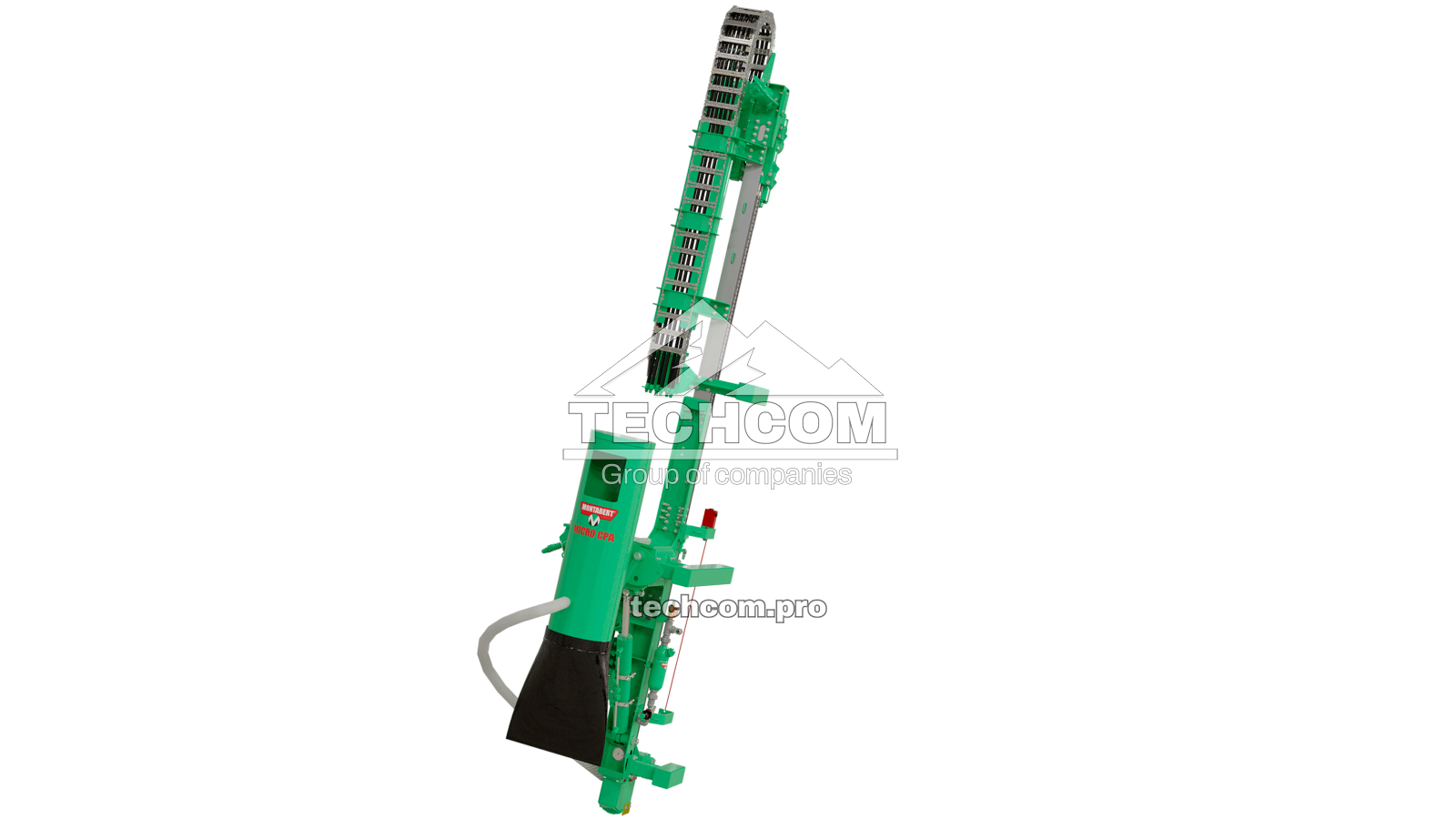

Montabert Micro CPA Drilling Attachment
Overview of the Montabert Micro CPA Drilling Attachment

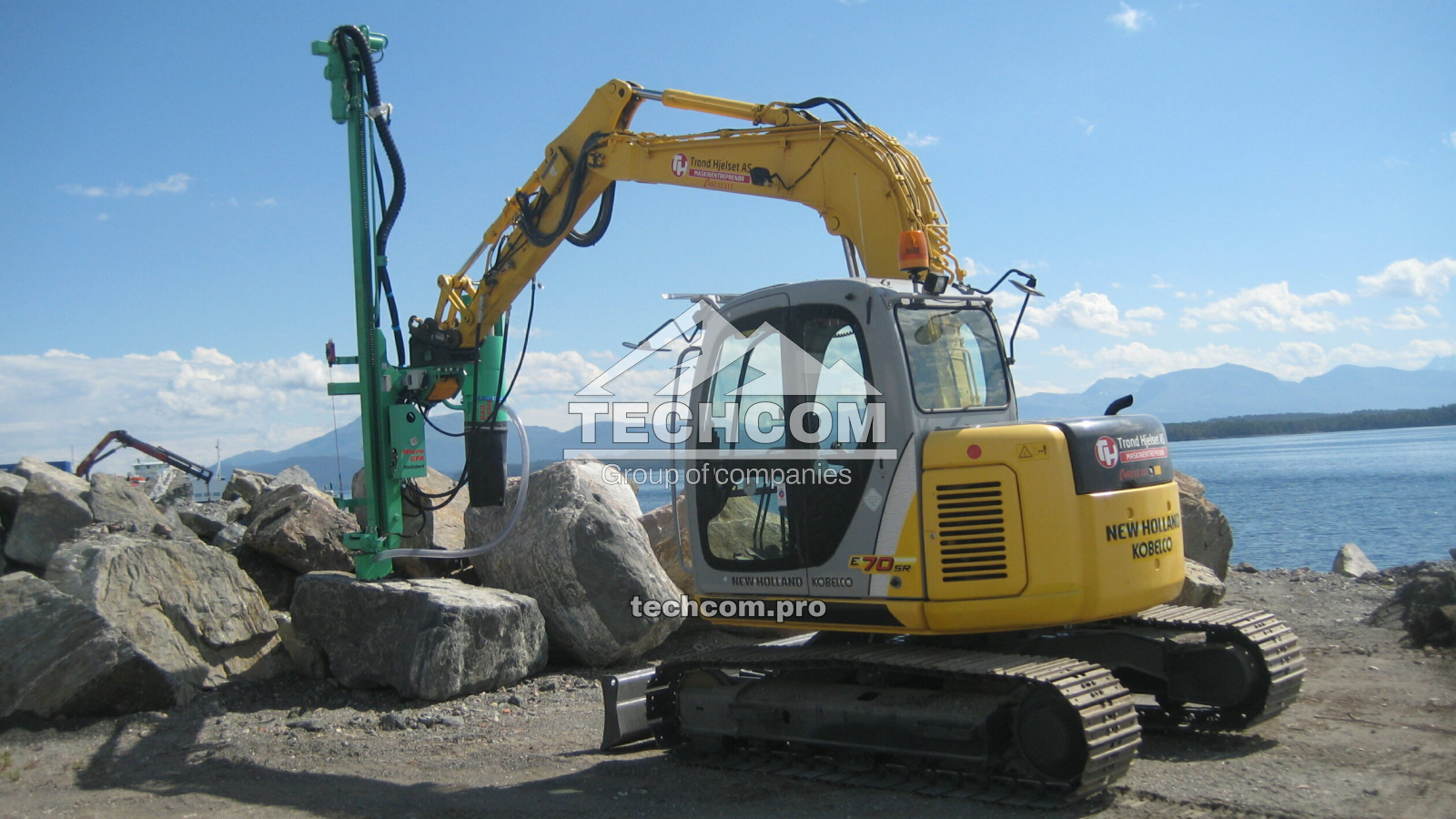

The Montabert Micro CPA is a compact drilling attachment from the CPA (Carrier-mounted Percussion Attachment) range, designed to convert light hydraulic excavators into efficient drilling machines. Unlike conventional drilling rigs, CPA systems allow drilling operations to be performed directly using the carrier excavator, significantly increasing flexibility and on-site autonomy.
The Micro CPA is specifically engineered for installation on light hydraulic excavators in the 9–12 ton class, making it an ideal solution for contractors who require drilling capabilities without deploying dedicated drilling rigs.
Main Advantages
- Designed for light hydraulic excavators with an operating weight of 9–12 tons.
- Transforms a standard excavator into a versatile drilling unit without major machine modifications.
- Easy attachment and removal, allowing fast switching between excavation and drilling tasks.
- Improves excavator utilization by combining multiple functions on a single carrier.
- Reduces dependence on third-party drilling service providers and external equipment.
Typical Applications
- Anchoring and rock bolting using excavator-mounted drilling equipment.
- Drilling for drill & blast and pre-splitting operations.
- Trenching and ground reinforcement works.
- Dimensional stone and light quarrying applications.
- Urban construction, tunnelling, and confined or hard-to-reach job sites.
Technical Specifications
| Working weight | 680 kg |
| Compatible drifter models | HC20 / HC25 |
| Recommended carrier weight | 9 – 12 t |
| Hydraulic flow rate | 60 – 95 l/min |
| Maximum operating pressure | 165 bar |
| Flushing air flow | 3 – 4 m³/min |
| Shank adapter types | H25, R25, R32, T38 |
| Typical hole diameter | 26 – 76 mm |
| Maximum drilling depth | 3.2 m |
Compatibility and Integration
The Montabert Micro CPA is intended for light excavators equipped with sufficient hydraulic capacity and stability within the 9–12 ton range. It is compatible with Montabert HC20 and HC25 hydraulic drifters and integrates directly with the excavator’s hydraulic system, providing a compact and efficient drilling solution without the need for a dedicated drilling rig.
Get in touch with our team to confirm carrier compatibility, receive technical guidance on the Montabert Micro CPA, or select the optimal configuration for your excavator and drilling application. If your excavator falls outside the recommended weight range, our specialists will help you choose a suitable CPA model from the Montabert range.
