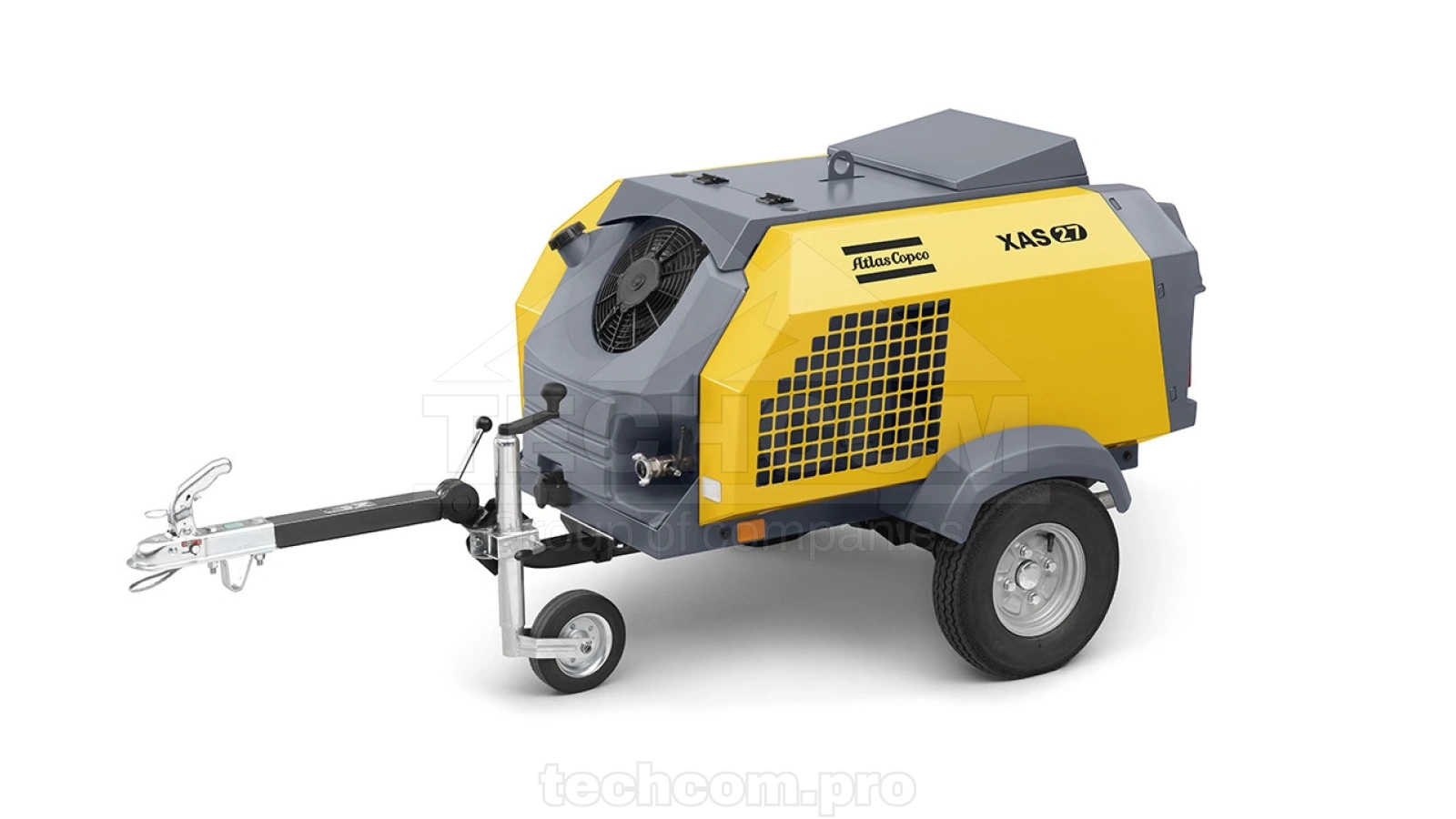

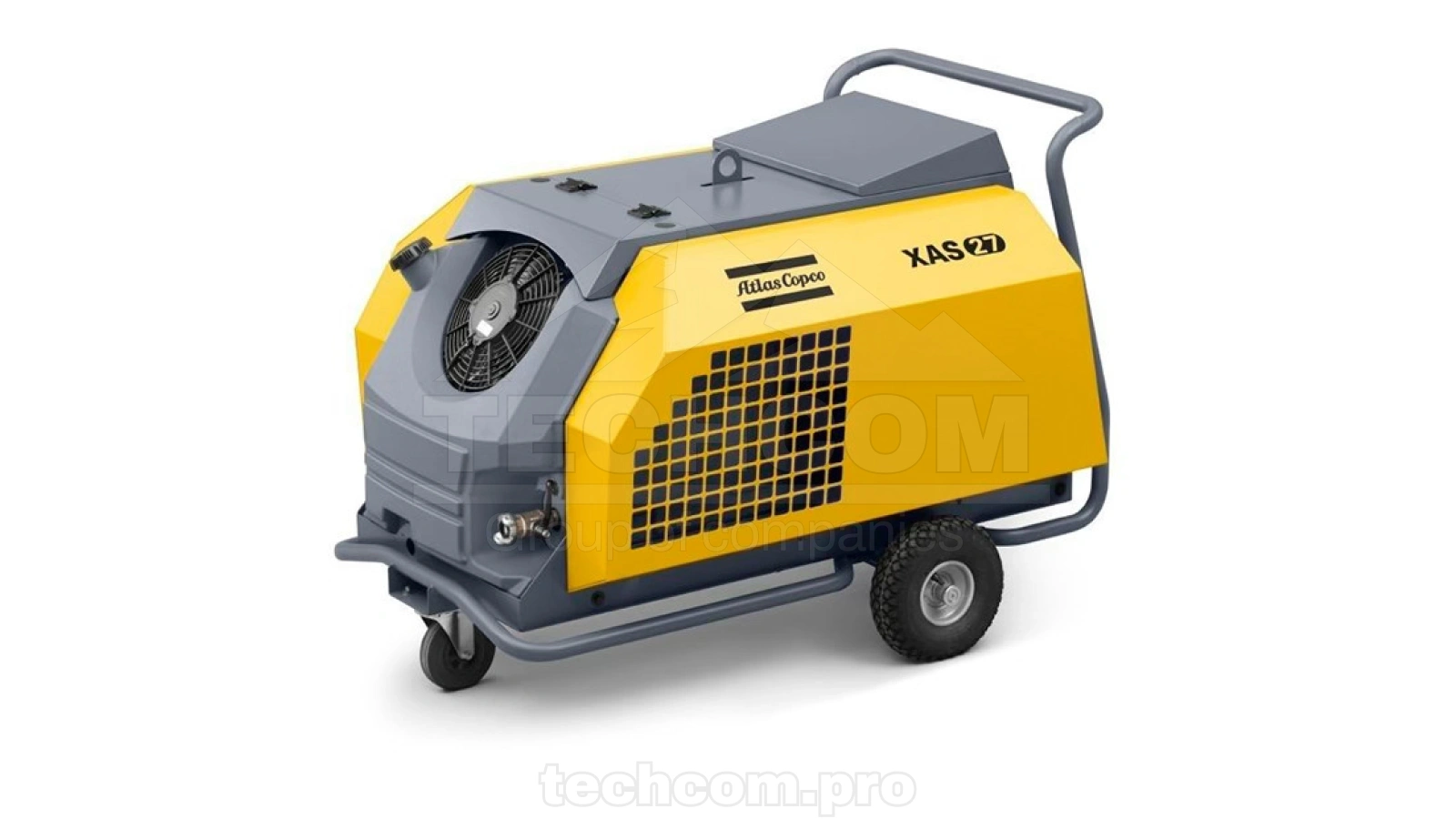

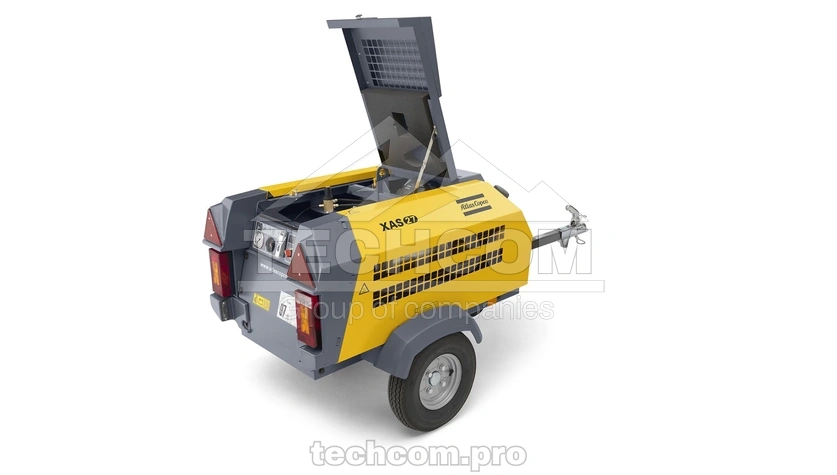

The Atlas Copco XAS 27 Hp is a portable air compressor designed for mobility and efficient operation. It can be supplied on a two-wheel chassis or as a skid-mounted version for installation on vehicles. This model is suitable for operating pneumatic tools in construction, repair work, and industrial tasks. It uses a single-stage, oil-injected C55 Airend driven by a V-belt from a Honda GX630 petrol engine, offering stable performance and long service life.
Advantages
- Lightweight structure for simple transportation and handling.
- Easy access to main components for routine servicing.
- Durable C55 Airend designed for extended operational hours.
- Adjustable pressure through a regulating valve for various applications.
- Control system with alerts and automatic shutdown to protect the unit.
- Meets standards for noise, emissions, and quality.
Technical Specifications
| Working pressure (min), bar | 1.9 |
| Working pressure (max), bar | 7 |
| Compression stages | 1 |
| Compressor oil capacity, L | 4 |
| Max ambient temperature, °C | +40 |
| Min starting temperature, °C | -10 |
| Engine | Honda GX630 petrol, 14.1 kW |
| Cylinders | 2 |
| Max / Rated RPM | 3000 / 2800 |
| Cooling system | Air |
| Engine oil capacity, L | 1.7 |
| Fuel tank capacity, L | 20 |
| Dimensions on chassis (L x W x H), mm | 2159 x 1003 x 988 |
| Overall measurements without chassis (L x W x H), mm | 1280 x 850 x 787 |
| Weight on chassis, kg | 270 |
| Weight without chassis, kg | 230 |
Suitable for road maintenance, construction works, support tasks in mining, and operations in remote locations where a compact air compressor is required.
Contact us to choose the most suitable version for your tasks.
