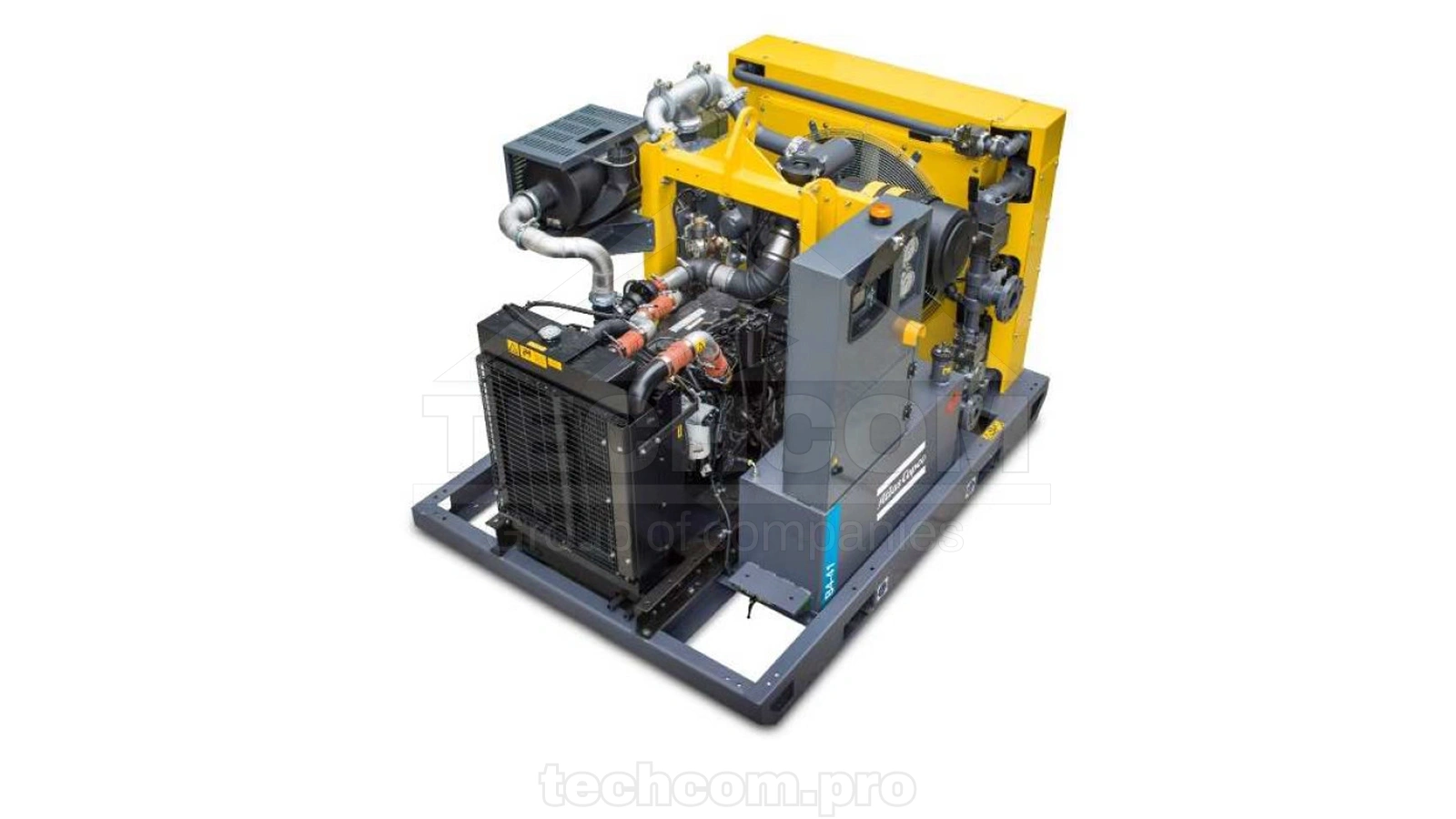

The Epiroc (Atlas Copco) Hurricane B4-41 is a mobile high-pressure booster designed to deliver superior air or nitrogen compression for pipeline services, pressure testing, and wellhead operations. Engineered for durability and performance, this single-stage reciprocating piston booster is powered by a John Deere 4.5L diesel engine and includes integrated cooling and moisture separation systems for efficient operation in demanding environments.
Mounted on an open skid frame with forklift slots and lifting point, the unit features a modular design suitable for containerization and rugged field deployment. To operate, the booster requires a feed air pressure of up to 24 bar, typically supplied by primary compressors such as the Atlas Copco XRVS476, XRVS606, or XRV946.
Key Benefits
- Compact, trailer-ready frame for easy transport and deployment
- Automatic safety systems including pressure relief valves and shutdown alarms
- Full-featured electronic dashboard continuously displays vital parameters for precision system management
- Two cooling stages with pre- and aftercoolers for stable output and extended service life
- Options available for cold weather operation, spark arrestors, and trailer mounting
Technical Specifications
| Model | B4-41/750 / B4-41/1000 |
| Booster type | Single-stage, 4-cylinder, reciprocating |
| Drive engine | John Deere 4.5L, Tier 2 |
| Engine power | 126 kW @ 1800 rpm |
| Max inlet pressure | 24 bar (350 psi) |
| Maximum outlet pressure | 52 bar (750 psi) / 69 bar (1000 psi) |
| Capacity | 51 m³/min (750) / 40 m³/min (1000) |
| Fuel tank capacity | 220 L |
| Booster oil capacity | 9 L |
| Operating temperature range | -35°C to +52°C |
| Max altitude | 3000 m |
| Dimensions (L×W×H) | 2489 × 1778 × 2007 mm |
| Dry weight | 2948 kg |
Contact us to learn more about configuration options and service kits for the Atlas Copco Hurricane booster series.
