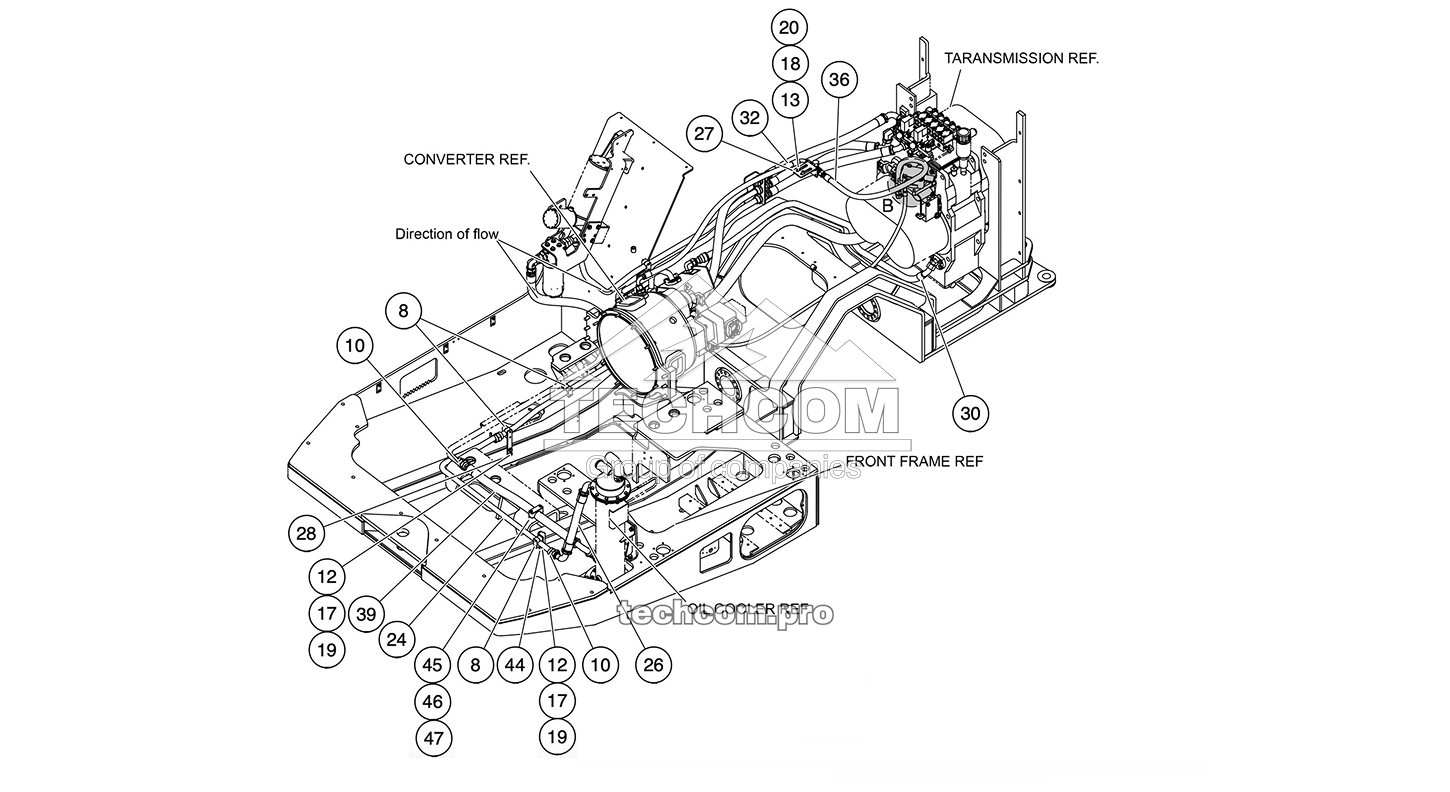

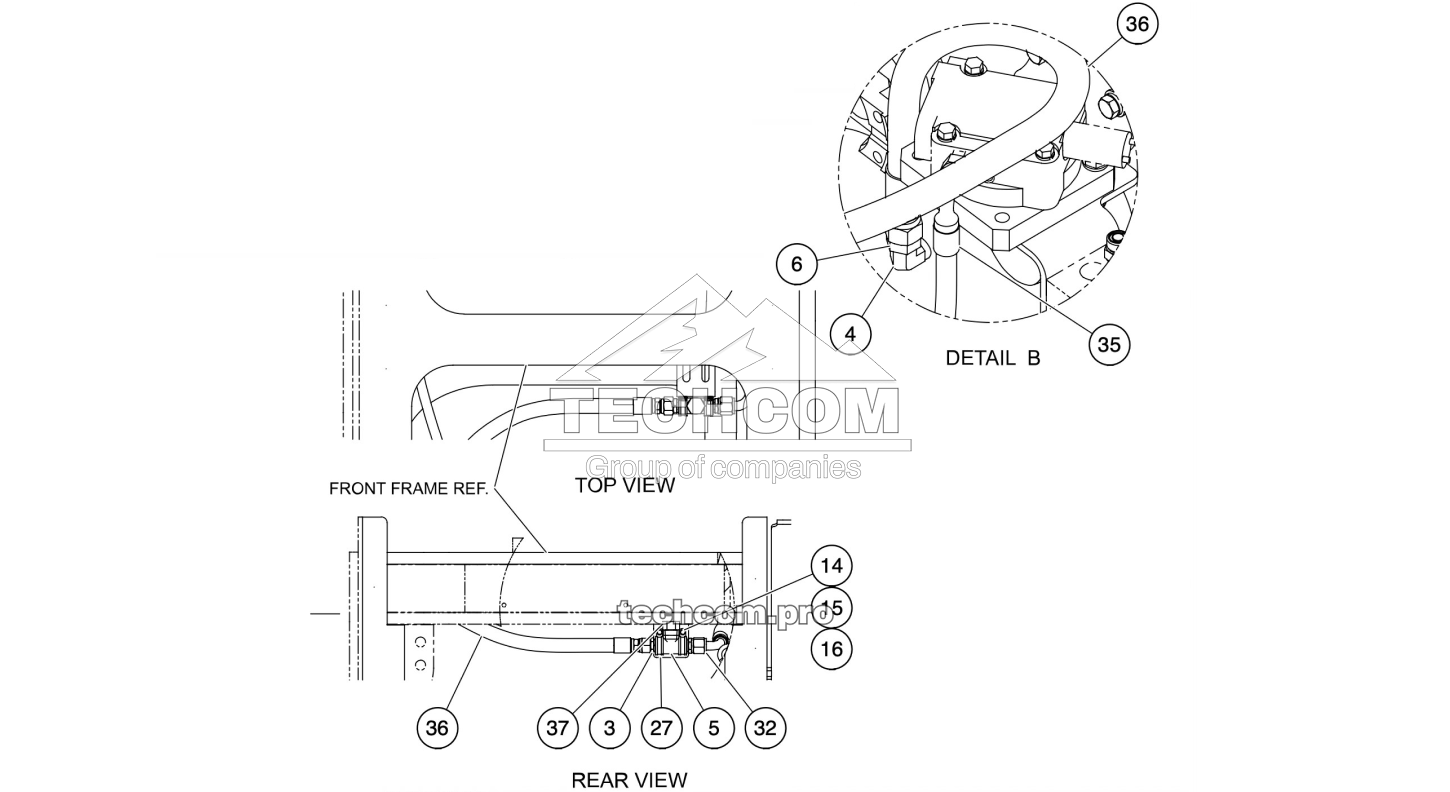

The gearbox ventilation and hydraulic connection system of the Sandvik Toro TH320 ensures optimal hydraulic flow and gearbox pressure balance for reliable underground operation.
| Part No. | Description | Qty |
|---|---|---|
| 04180385 | Hydraulic fitting JIC 1-1/16 – NPTF 3/4 | 2 |
| 64102272 | 90° elbow fitting | 1 |
| 64105635 | Tee adapter | 1 |
| 64108706 | Connector | 1 |
| 06429117 | Pipe clamp | 5 |
| 64119990 | Adapter ORS/ORS | 4 |
| 06530422 | Hex screw M10×25 – 8.8, ISO 4017 | 4 |
| 64404000 | Hex screw M12×25 – 10.9 | 4 |
| AF00100137 | Hex screw M6×25 – 8.8, ISO 4017 | 2 |
| AF02300004 | Flat washer M6 – 200HV, zinc-plated; ISO 7089 | 4 |
| AF01900003 | Self-locking hex nut M6 – 8, zinc-plated; ISO 7040 | 2 |
| 06582408 | Spring washer 10 | 4 |
| 06582409 | Washer 12 | 4 |
| AF02300006 | Flat washer M10 – 200HV, zinc-plated; ISO 7089 | 4 |
| AF02300007 | Flat washer M12 | 4 |
| BG00793328 | Pipe ORFS D30×3 AISI 304 | 1 |
| 64587163 | Hose HGH194 20 00210 20FRB 20FRB 180 | 1 |
| 64587268 | Bracket – gearbox breather | 1 |
| BG00793174 | Support plate STAUFF | 1 |
| 64589703 | Hose HGH194 16 00820 16FR 16FRA | 1 |
| BG00800604 | Hydraulic hose R2T-12-1350-J12B-J12B-315 | 1 |
| 64603404 | Hose HGH781 06 01050 6FRB 6FRB 180 | 1 |
| BG00800533 | Hydraulic hose R2T-12-1400-J12A-J12A | 1 |
| 64800161 | Gearbox breather fan 1-1/4 hex 3/4 NPT | 1 |
| BG00503359 | Hydraulic hose R2T-20-1000-V20A-V20B | 1 |
| BG00797189 | Support plate STAUFF | 1 |
| 56003863 | Pipe clamp | 1 |
| 56011024 | Base plate cup | 1 |
| 56001481 | Hex bolt M6×85 – 8.8, ISO 4014 | 2 |
TechCom provides a full catalogue of spare parts for the Sandvik Toro TH320, including hydraulic fittings, hoses, adapters, washers, and gearbox breather components. All parts meet OEM specifications and ensure safe and reliable operation in underground mining environments.
