The rear frame assembly of the Aramine L130D miniLoader forms the structural backbone of the machine, supporting the powertrain, hydraulic components, and operator’s canopy. Built for strength and durability, it ensures frame integrity and stable performance in demanding underground conditions.

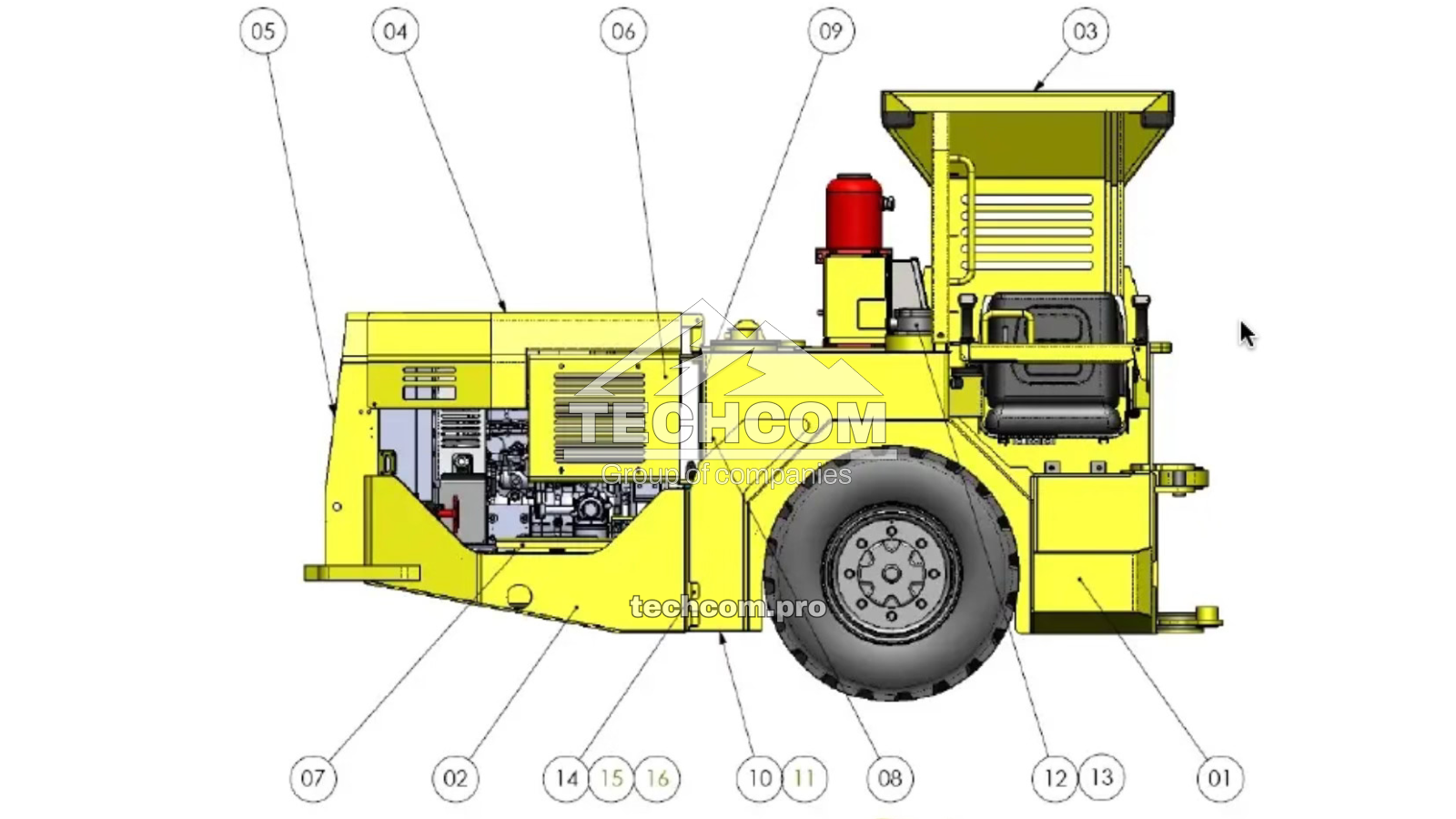

Spare Parts List – Rear Frame Assembly (L130D)
| Ref. | Part No. | Qty | Description |
|---|---|---|---|
| 1 | – | 1 | Central Frame |
| 2 | – | 1 | Engine Tub |
| 3 | 7791314 | 1 | Canopy |
| 4 | – | – | Bonnet |
| 5 | – | – | Door Grille |
| 6 | – | – | Support Fan |
| 7 | – | – | Battery Case |
| 8 | 7783335 | 1 | Suction Strainer (not shown) |
| 9 | 7701811 | 4 | Sight Gauge (includes Seal 7703144, not shown) |
| 10 | 8700179 | 2 | Oil Plug (not shown) |
| 11 | 7761801 | – | Bushing (not shown) |
| 12 | 7781750 | – | Return Filter, 25 microns |
| 13 | 7785455 | – | Return Filter Cartridge, 25 microns (not shown) |
| 14 | 7729418 | 18 | Capscrew (not shown) |
| 15 | 7701919 | 18 | Lock Washer (not shown) |
| 16 | 7706377 | – | Lock Nut (not shown) |

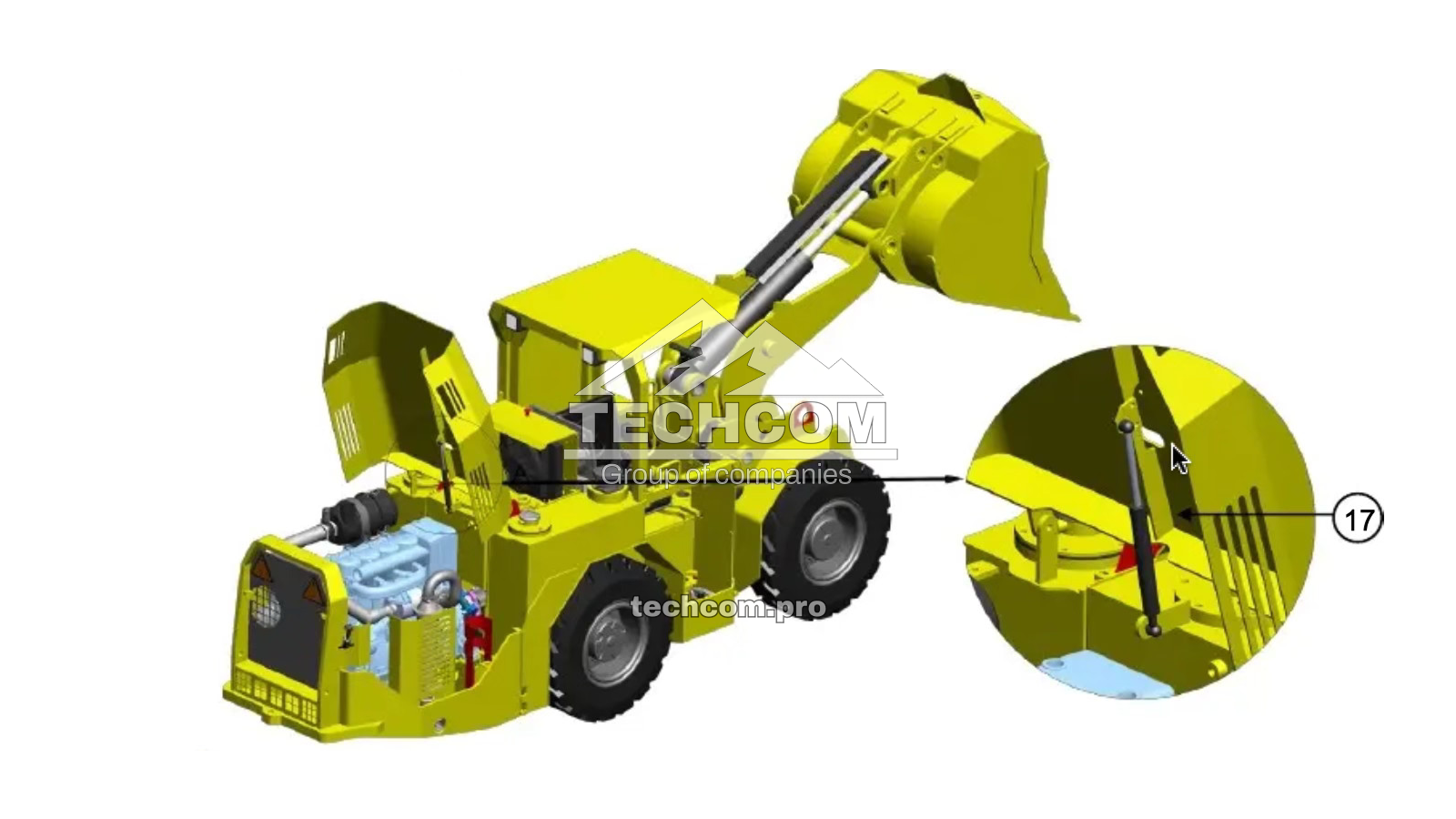

| 17 | 7791781 | – | Gas Cylinder |
