57761074 (2657761074) Frame, Main, Assembly, DM45 includes the main structural components of the Epiroc DM45 drill rig, as well as supports, shafts, bushings, clamps, and fastening elements. All parts listed below are fully compatible with the DM45 series and ensure reliable performance.

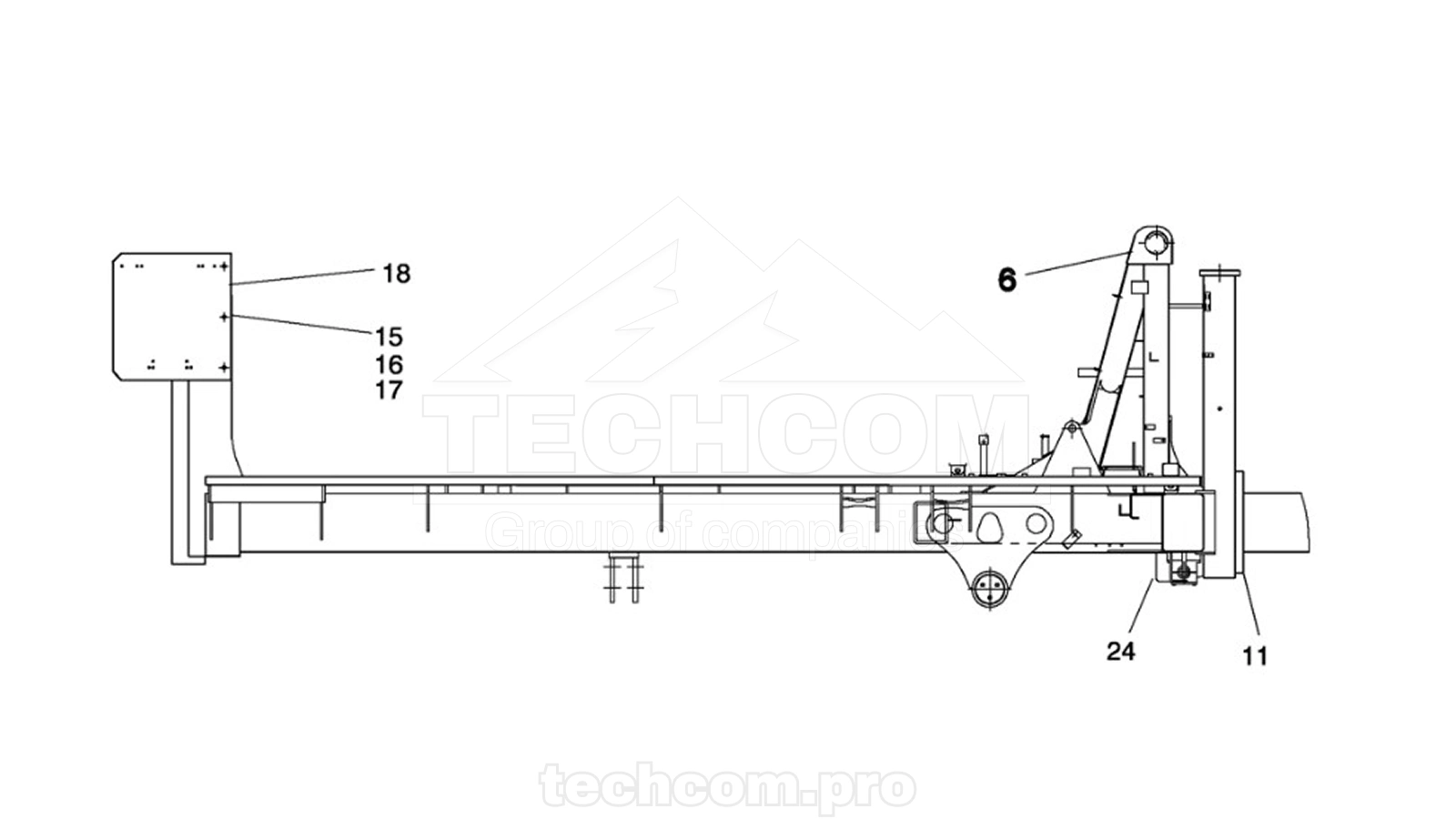

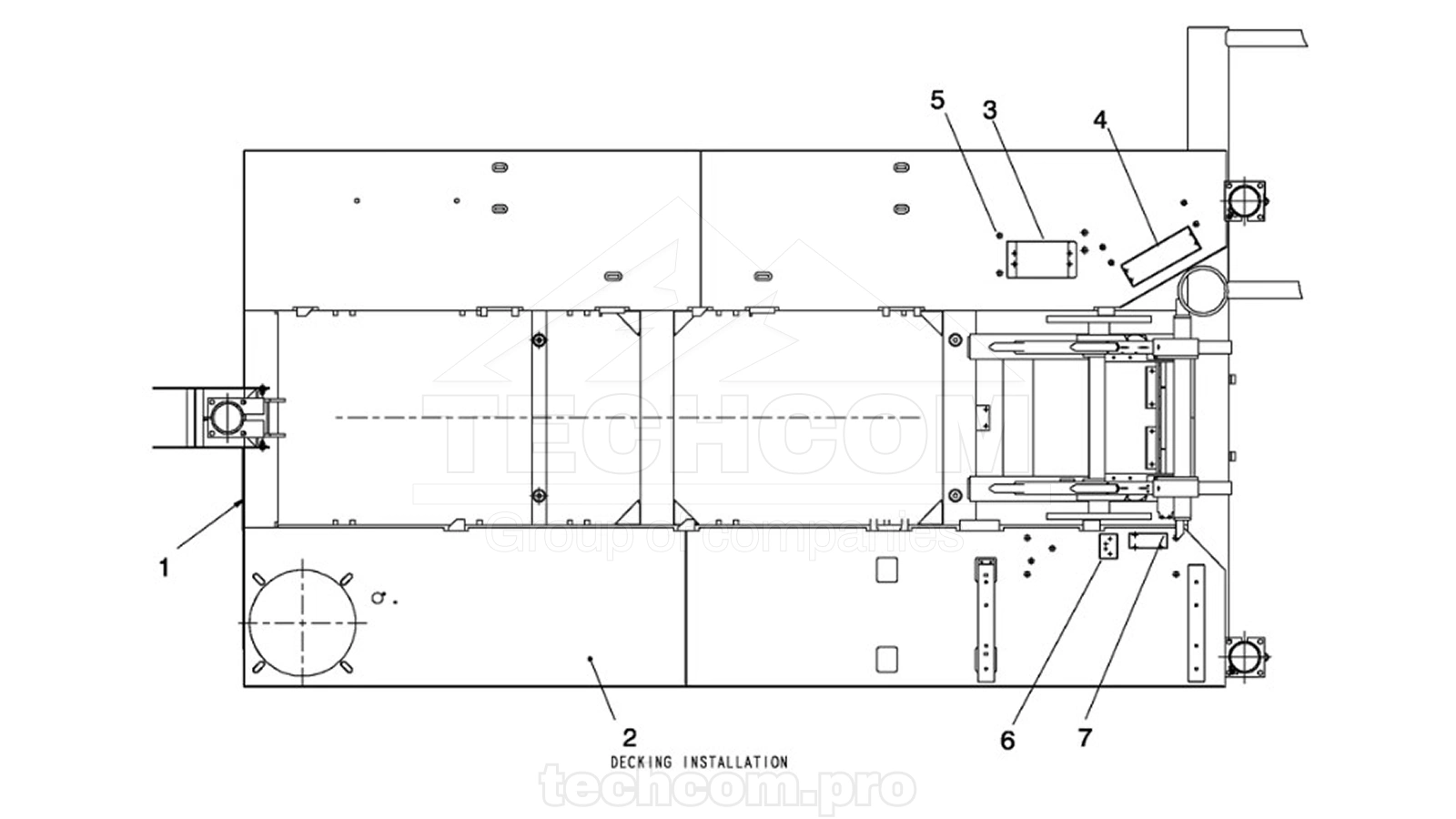

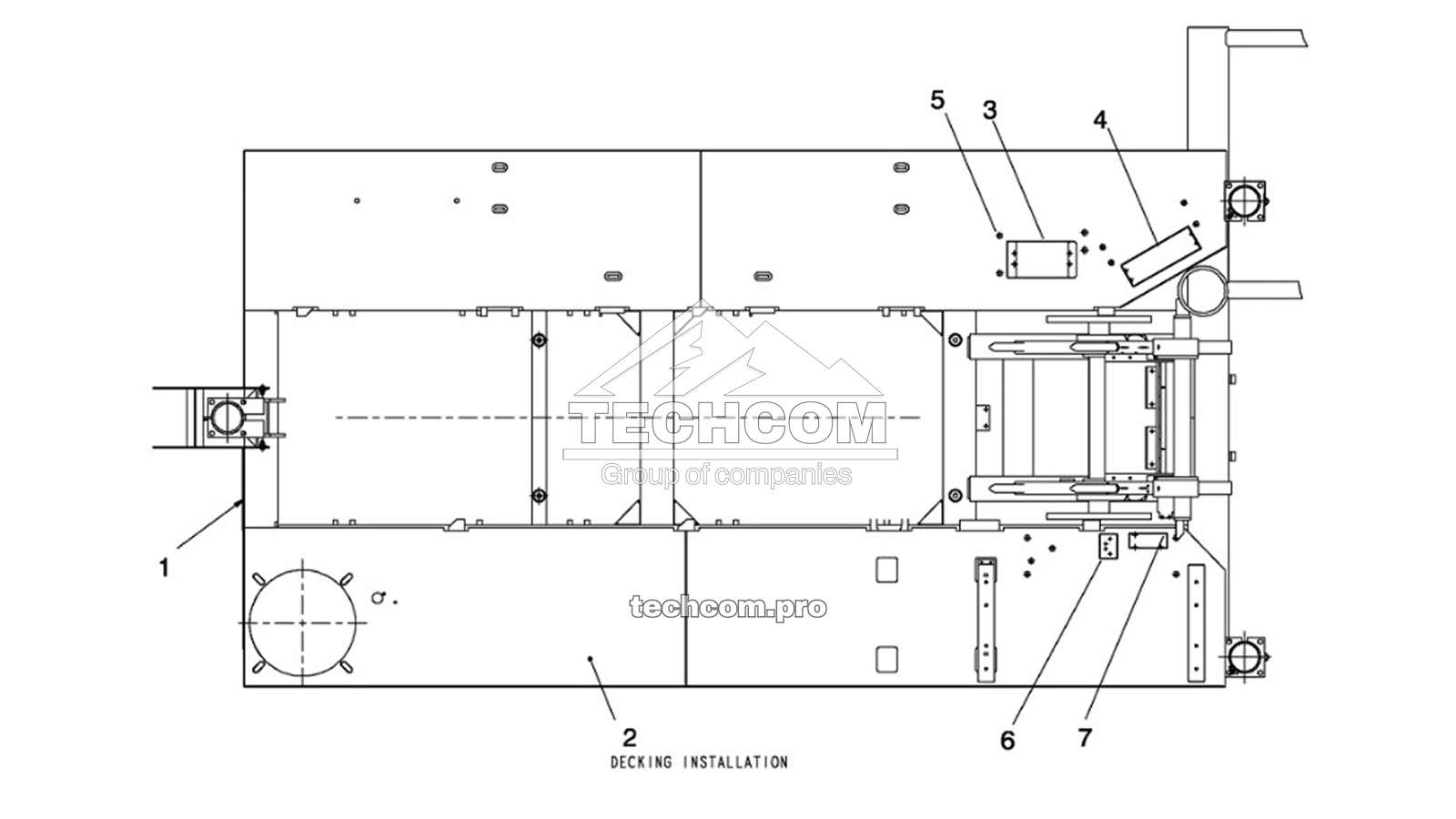

Spare Parts List
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 57719775 | 2657719775 | Frame, Weldment, Main DM45 |
| – | 57723389 | 2657723389 | Shaft, Main DM45, 7" |
| – | 57582355 | 2657582355 | Support, Tower-DM45/50/L |
| – | 57092579 | 2657092579 | Grease, EPO, LB. (Bulk) |
| – | 57398232 | 2657398232 | Block, Tower Support |
| – | 57399925 | 2657399925 | Shaft, Tower Support |
| – | 57559072 | 2657559072 | Bushing, Pivot TWR Support |
| – | 57250466 | 2657250466 | Guard, Hose Ring |
| – | 57394025 | 2657394025 | Support, Deck Cab Side |
| – | 50425958 | 2650425958 | Crosshead |
| – | 57449506 | 2657449506 | Support, Hose-Propel Systm |
| – | 95934584 | 2695934584 | Capscrew |
| – | 95937413 | 2695937413 | Washer, Lock, Helical |
| – | 95922894 | 2695922894 | Nut, Hex |
| – | 95104303 | 2695104303 | Capscrew |
| – | 95934733 | 2695934733 | Washer, Lock |
| – | 95922902 | 2695922902 | Nut, Hex, Finished, Plated |
| – | 57359036 | 2657359036 | Clevis, Tower Pinning-DML |
| – | 57479214 | 2657479214 | Mount, CYL. TWR Pinning |
| – | 56943699 | 2656943699 | Clamp Assy |
| 002.0 | 57720419 | 2657720419 | Decking, Installation |
| – | 57720450 | 2657720450 | Decking, Rear DCS |
| – | 57720443 | 2657720443 | Decking, Front DCS |
| – | 57720435 | 2657720435 | Decking, Rear CS |
| – | 57720427 | 2657720427 | Decking, Front CS |
| 003.0 | 57566746 | 2657566746 | Bracket, MTG-6 Spool VLV |
| – | 95934592 | 2695934592 | Capscrew, Hex |
| – | 95922894 | 2695922894 | Nut, Hex |
| – | 95937413 | 2695937413 | Washer, Lock, Helical |
| 015.0 | 95934451 | 2695934451 | Capscrew, Hex Head, Plated |
| 016.0 | 95934733 | 2695934733 | Washer, Lock |
| 017.0 | 95922902 | 2695922902 | Nut, Hex, Finished, Plated |
| 024.0 | 52236783 | 2652236783 | Clamp Assy, 1/2 |
| – | 95256723 | 2695256723 | Clamp-1/2 |
| – | 95934766 | 2695934766 | Washer, Lock, Helical |
| – | 95865937 | 2695865937 | Capscrew |
We also provide a complete catalog of spare parts and components. See all spare parts for Epiroc DM45 drilling rig.
