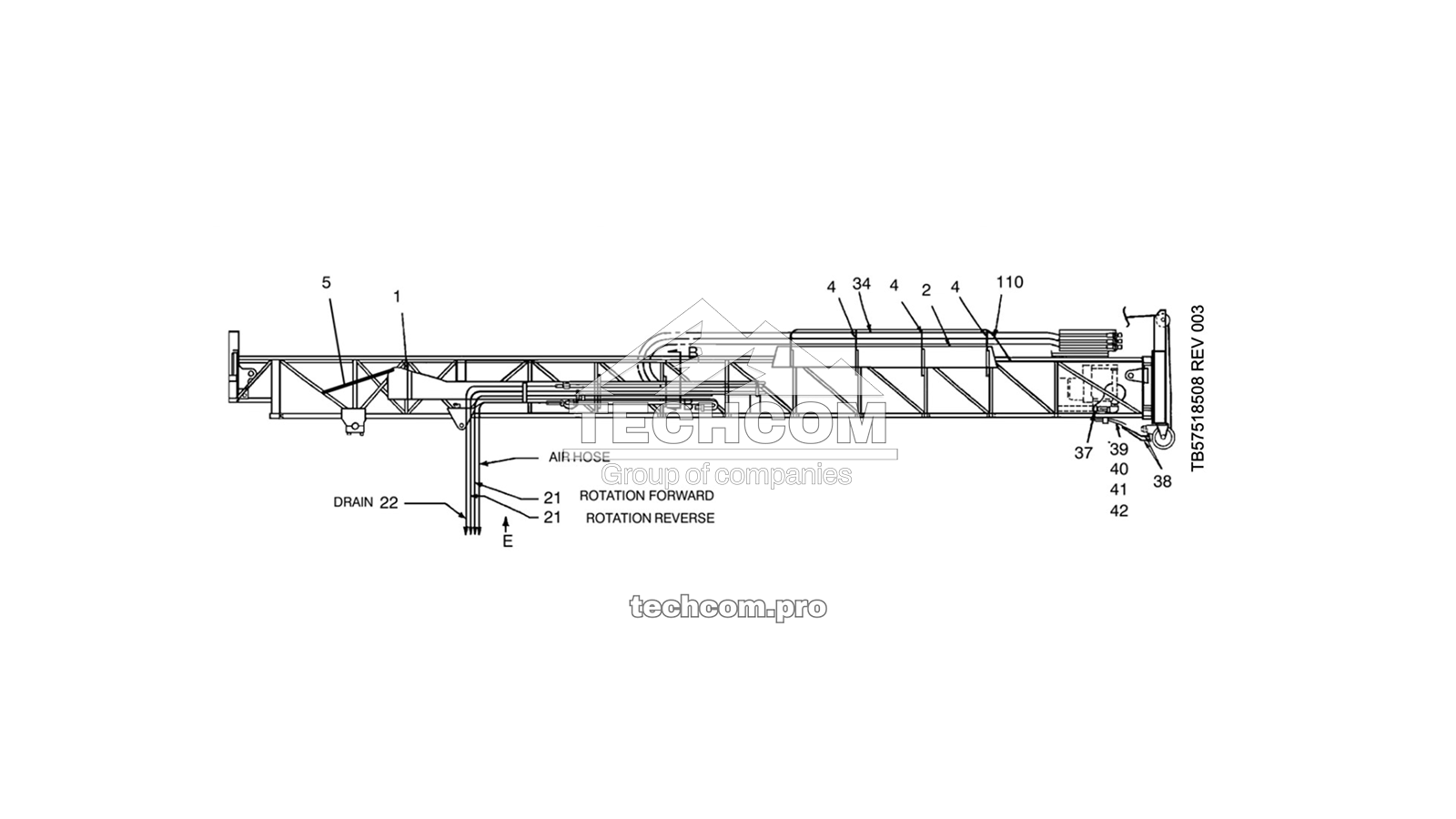

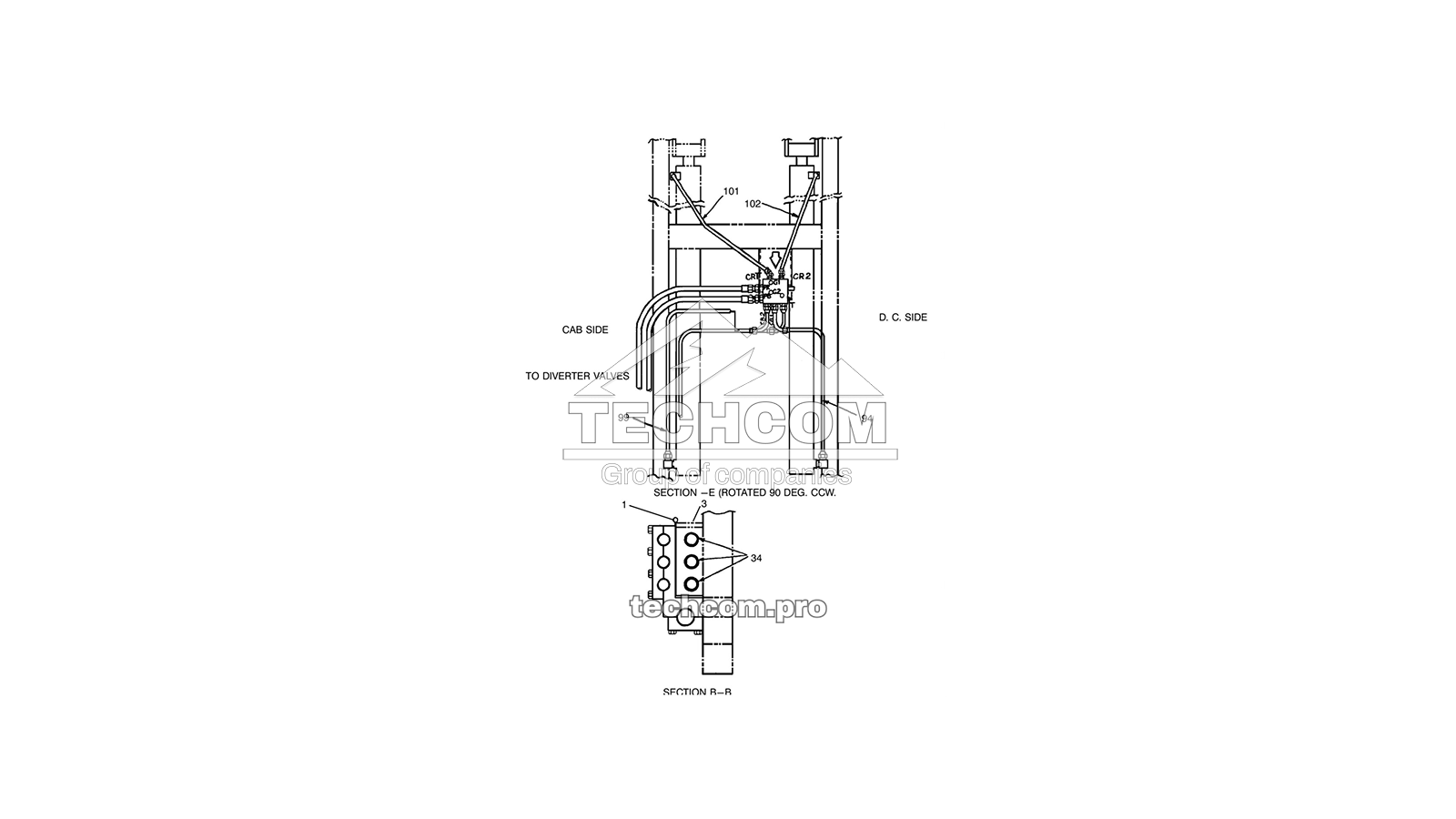

The 57745663 (2657745663) piping set for tower uniques (30 ft, Arctic) serves the mast plumbing on the Epiroc DM45/DM50 drill rig. It combines hose trays, pipe and gussets, hose-tray bar, Arctic hose assemblies, air hose bulk, clamps and hardware for reliable routing in cold environments.
Spare Parts List
| Ref. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 57239030 | 2657239030 | Hose Tray, Lower |
| 002.0 | 57142481 | 2657142481 | Hose Tray, Upper |
| 003.0 | 57632465 | 2657632465 | Pipe |
| 004.0 | 57390049 | 2657390049 | Gusset |
| 005.0 | 57644908 | 2657644908 | Bar, Hose Tray |
| 021.0 | 56254105 | 2656254105 | Hose Assembly |
| 022.0 | 57786758 | 2657786758 | Hose Assembly, Arctic |
| 034.0 | 57214264 | 2657214264 | Hose Assembly |
| 037.0 | 95313961 | 2695313961 | Air Hose — R32 (bulk) |
| 038.0 | 57786766 | 2657786766 | Hose Assembly, Arctic |
| 039.0 | 57497794 | 2657497794 | Stud |
| 040.0 | 95937413 | 2695937413 | Washer, Lock, Helical |
| 041.0 | 95922894 | 2695922894 | Nut, Hex |
| 042.0 | 50034818 | 2650034818 | Clamp, Half |
| 094.0 | 57745754 | 2657745754 | Hose Assembly, Arctic |
| 099.0 | 57745762 | 2657745762 | Hose Assembly, Arctic |
| 101.0 | 57745739 | 2657745739 | Hose Assembly, Arctic |
| 102.0 | 57745747 | 2657745747 | Hose Assembly, Arctic |
| 110.0 | 57503815 | 2657503815 | Extension, Hose Tray — 30 ft |
Configured for cold-weather service, the 57745663 (2657745663) package helps ensure dependable routing, restraint and protection of tower lines on 30-ft DM45/DM50 masts. TechCom supplies the complete set and genuine tower plumbing spares. View all spare parts for Epiroc DM45/DM50.
