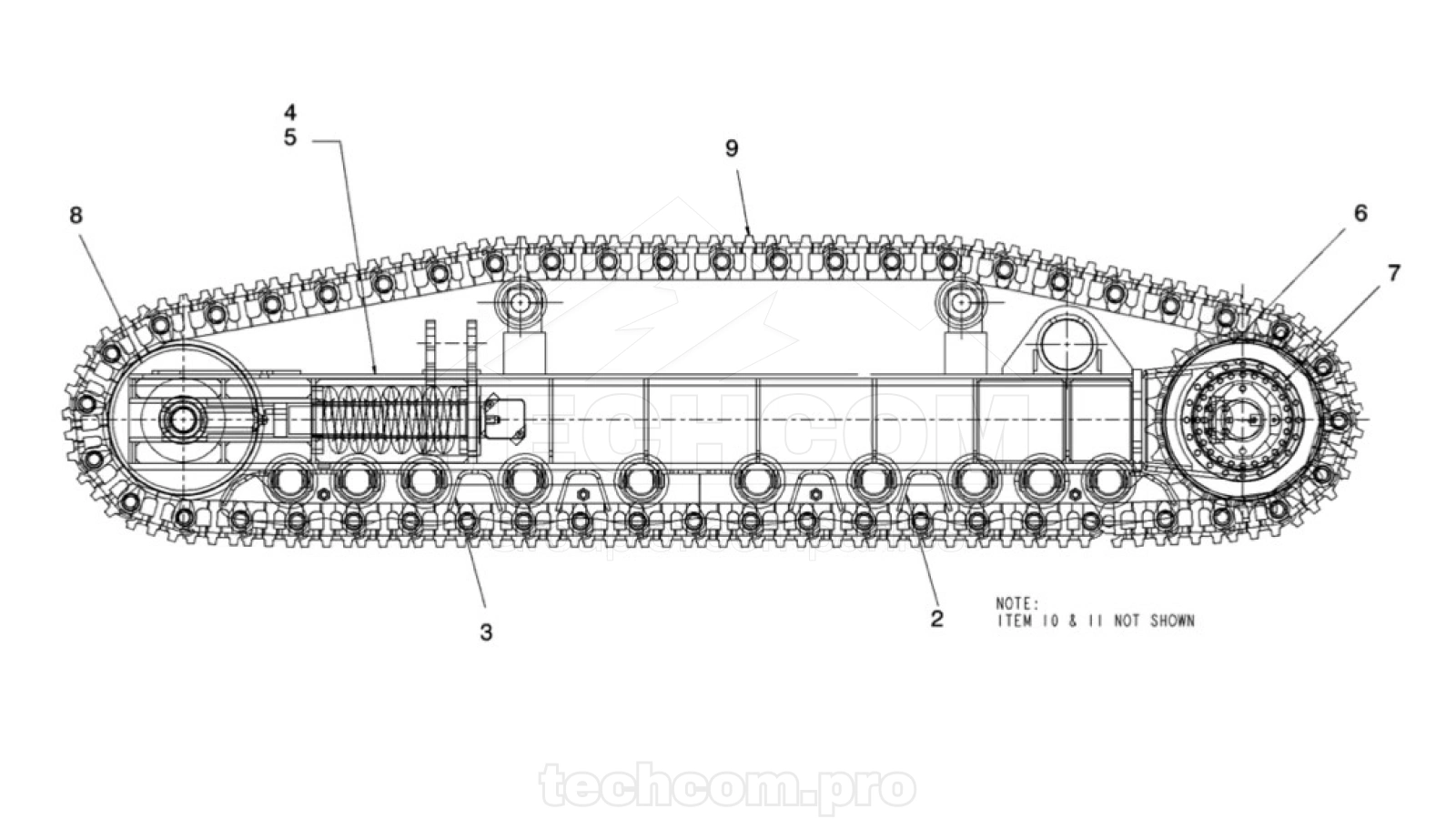

57735763 (2657735763) Undercarriage, 325L is the complete track undercarriage of the Epiroc DM45 drill rig. It includes roller arrangements, sprockets, guards, frames, idlers, final drives, and track groups. The assembly ensures durability, stability, and reliable mobility in demanding mining operations.
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 57562977 | 2657562977 | Roller Arrangement |
| 002.0 | 57563124 | 2657563124 | Guard Group-TCK MOT |
| – | 57357097 | 2657357097 | Washer |
| – | 57457772 | 2657457772 | Bolt |
| – | 57563132 | 2657563132 | Cover |
| 003.0 | 57563140 | 2657563140 | Guard Group-TRK GDE |
| 004.0 | 57736175 | 2657736175 | Frame, RH, Assembly, CAT 325L |
| – | 57308041 | 2657308041 | Bracket-Carrier Roller |
| 005.0 | 57736183 | 2657736183 | Frame, LH, Assembly, CAT 325L |
| – | 57308041 | 2657308041 | Bracket-Carrier Roller |
| 006.0 | 57354946 | 2657354946 | Sprocket Group |
| – | 57355018 | 2657355018 | Sprocket, Track |
| – | 57355026 | 2657355026 | Bolt |
| 007.0 | 58025800 | 2658025800 | Final Drive |
| 008.0 | 57354961 | 2657354961 | Front Idler Group |
| 009.0 | 57563470 | 2657563470 | Track Group |
| 010.0 | 57725491 | 2657725491 | Kit, Upgrade (A) CAT/IRGT |
| – | 57725319 | 2657725319 | Sprocket, CAT Frame (AMK) |
| – | 57355026 | 2657355026 | Bolt |
| – | 57700502 | 2657700502 | Roller, Carrier |
| – | 57356776 | 2657356776 | Bolt |
| – | 57700494 | 2657700494 | Roller, Track |
| – | 57356800 | 2657356800 | Bolt |
| – | 57456790 | 2657456790 | Bolt |
| – | 57355075 | 2657355075 | Washer, Plated |
| – | 57700411 | 2657700411 | Idler ASM w/Bracket |
| – | 57700536 | 2657700536 | Chain Track ASM, w/Shoe |
| 011.0 | 57725509 | 2657725509 | Kit, Upgrade (B) CAT/IRGT |
| – | 57725319 | 2657725319 | Sprocket, CAT Frame (AMK) |
| – | 57355026 | 2657355026 | Bolt |
| – | 57700502 | 2657700502 | Roller, Carrier |
| – | 57356776 | 2657356776 | Bolt |
| – | 57700494 | 2657700494 | Roller, Track |
| – | 57356800 | 2657356800 | Bolt |
| – | 57456790 | 2657456790 | Bolt |
| – | 57355075 | 2657355075 | Washer, Plated |
| – | 57700411 | 2657700411 | Idler ASM w/Bracket |
| – | 57700577 | 2657700577 | Chain Track, Less Shoes |
| – | 57700551 | 2657700551 | Bolt, Track, Shoe |
| – | 57708901 | 2657708901 | Nut, Track-Shoe |
TechCom provides a full selection of genuine and compatible parts for undercarriage systems. Explore the complete catalog of Epiroc DM45 spare parts.
