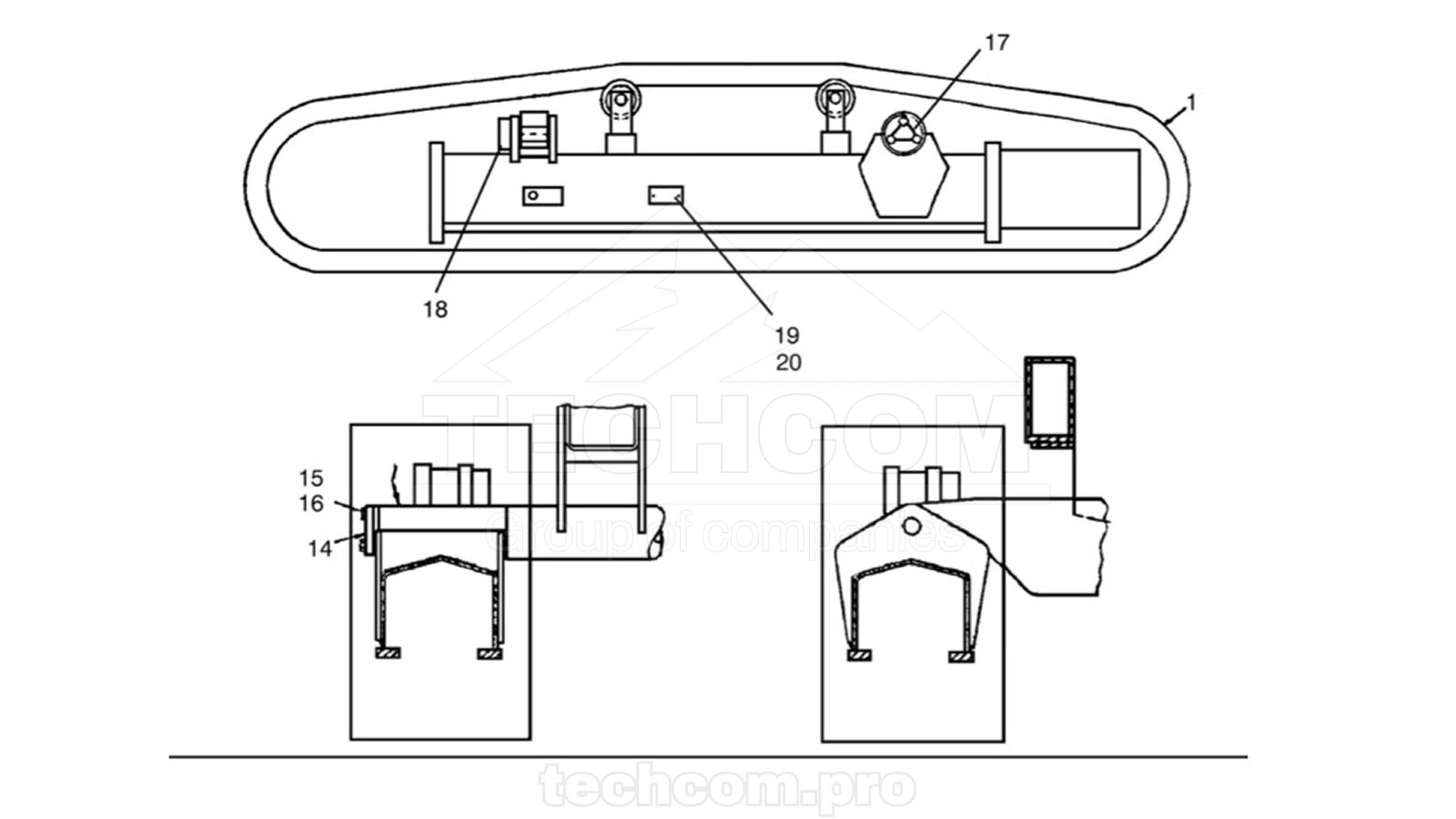

57735730 (2657735730) Track, CAT325L, Assembly is the complete undercarriage system of the Epiroc DM45 drill rig. It provides durability, stability, and reliable mobility in heavy-duty mining operations. All parts listed below are fully compatible with the DM45 series.
Spare Parts List
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 57735763 | 2657735763 | Undercarriage, 325L |
| 002.0 | 95201547 | 2695201547 | Fitting, Lube |
| 004.0 | 57309783 | 2657309783 | Yoke, Oscillation |
| 005.0 | 57180184 | 2657180184 | Bushing, Center |
| 006.0 | 57180168 | 2657180168 | Pin, Center |
| 007.0 | 95201547 | 2695201547 | Fitting, Lube |
| 008.0 | 56901853 | 2656901853 | Bar, Flat |
| 009.0 | 57188112 | 2657188112 | Pin, End Yoke |
| 010.0 | 57309791 | 2657309791 | Bushing, Yoke End |
| 014.0 | 57735904 | 2657735904 | Retainer Track |
| 015.0 | 95158176 | 2695158176 | Capscrew, HX |
| 016.0 | 95934691 | 2695934691 | Washer, Lock, Helical |
| 017.0 | 50344605 | 2650344605 | Wire, Lock |
| 018.0 | 57559387 | 2657559387 | Bracket, Grease Fitting |
| 019.0 | 57793986 | 2657739986 | Nameplate, Undercarriage |
| 020.0 | 95064192 | 2695064192 | Screw, Drive |
We supply a full range of genuine and compatible components. See all spare parts for Epiroc DM45 drilling rig.
