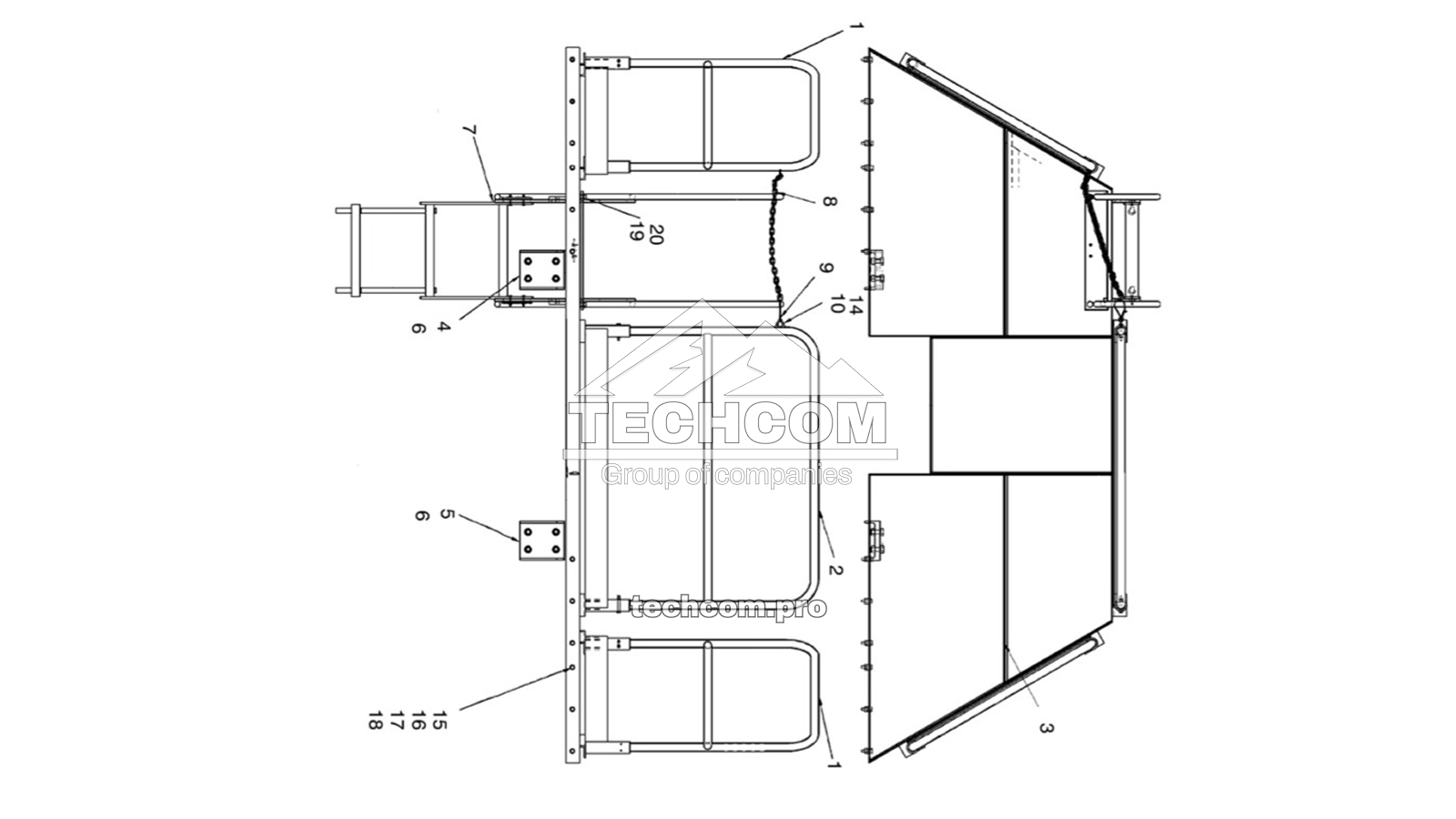

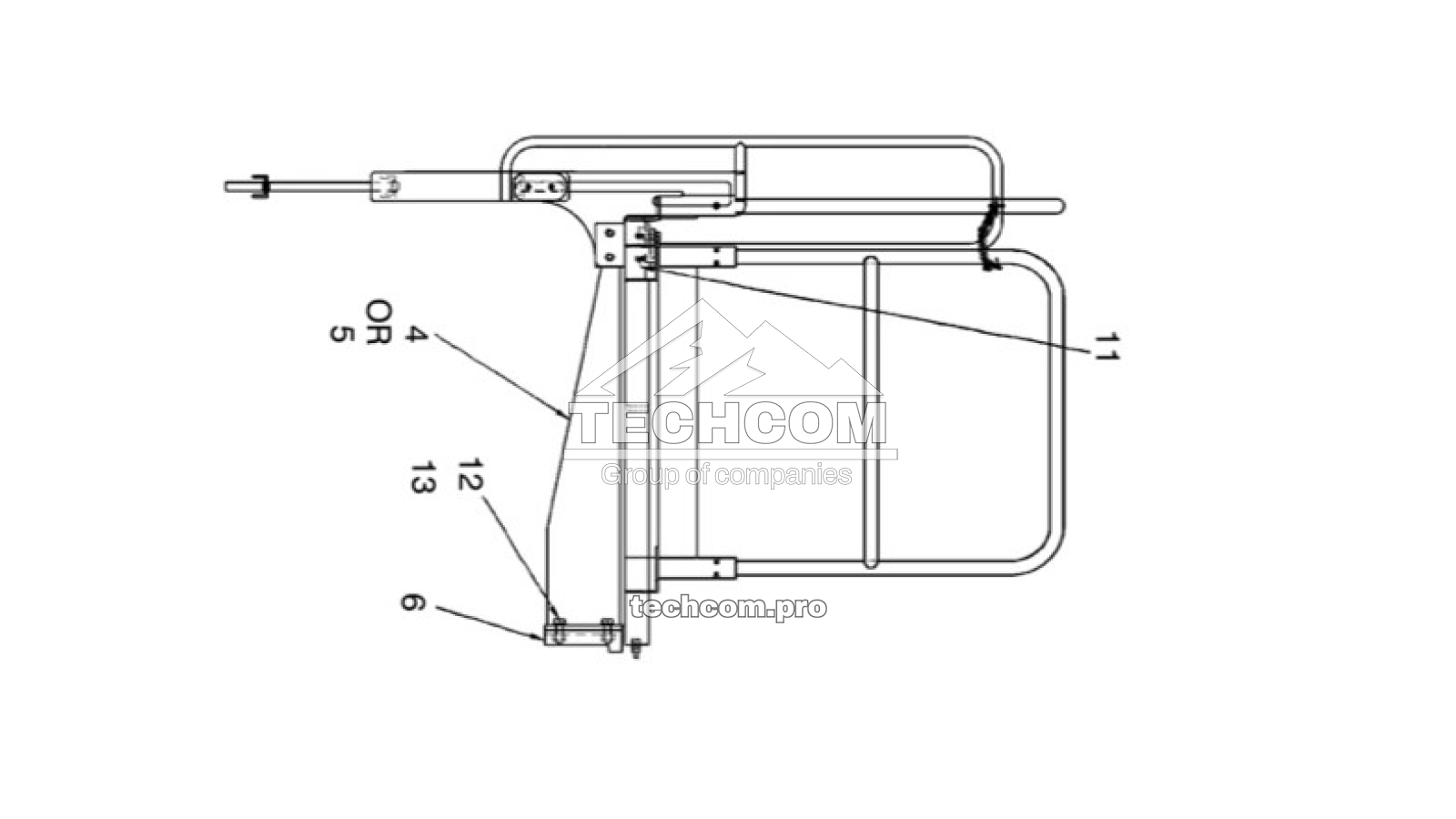

57711186 (2657711186) Decking, Rear, Platform, DM45 includes the main rear platform assembly of the Epiroc DM45 drill rig, with handrails, supports, brackets, ladder mounts and fastening hardware. All parts listed below are fully compatible with the DM45 series and ensure safe and reliable performance.
Spare Parts List
| Ref. No. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 001.0 | 57455842 | 2657455842 | Handrail - 38 |
| 002.0 | 57675266 | 2657675266 | Handrail |
| 003.0 | 57480451 | 2657480451 | Frame, Platform |
| 004.0 | 57455941 | 2657455941 | Support - L.H. |
| 005.0 | 57455958 | 2657455958 | Support - R.H. |
| 006.0 | 57455966 | 2657455966 | Bracket |
| – | 95922928 | 2695922928 | Nut, Hex, Finished |
| 007.0 | 57724619 | 2657724619 | Ladder, w/Handrail, Fold |
| 008.0 | 50699321 | 2650699321 | Chain, Bulk - 3/16 Coil |
| 009.0 | 57376246 | 2657376246 | Hook, Safety Snap |
| 010.0 | 56801053 | 2656801053 | Link |
| 011.0 | 57711145 | 2657711145 | Mount, Ladder |
| – | 57711152 | 2657711152 | Plate, Ladder Mount |
| – | 57711160 | 2657711160 | Plate, Ladder Mount |
| – | 57711178 | 2657711178 | Plate, Ladder Mounting |
| – | 95934766 | 2695934766 | Washer, Lock, Helical |
| – | 95928982 | 2695928982 | Capscrew |
| 012.0 | 95934378 | 2695934378 | Capscrew, Hex |
| 013.0 | 95352415 | 2695352415 | Washer, Lock - 3/4 |
| 014.0 | 95037255 | 2695037255 | Bolt, Eye |
| 015.0 | 95934584 | 2695934584 | Capscrew |
| 016.0 | 95922654 | 2695922654 | Washer, Lock |
| 017.0 | 95922373 | 2695922373 | Washer, Flat |
| 018.0 | 95923223 | 2695923223 | Nut, Elastic Lock 3/8-16 |
| 019.0 | 95937413 | 2695937413 | Washer, Lock, Helical |
| 020.0 | 95958989 | 2695958989 | Capscrew, Plated |
