The 57518482 (2657518482) piping, tower commons package serves the mast/tower plumbing on the Epiroc DM45/DM50 drill rig, combining brackets, standpipes, rotation tubes, clamps, split flanges, valves, fittings and hose assemblies for durable routing and support.

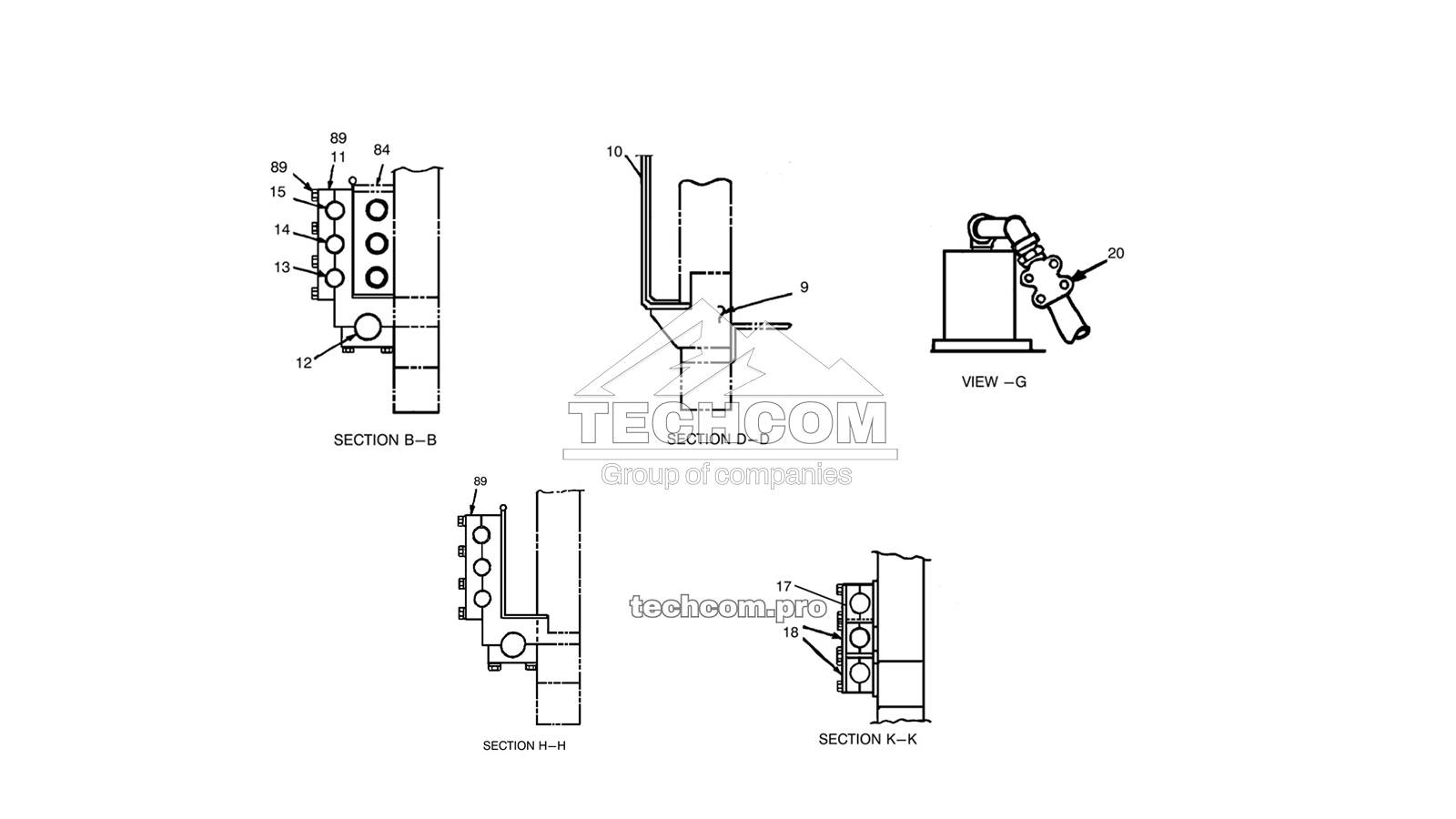

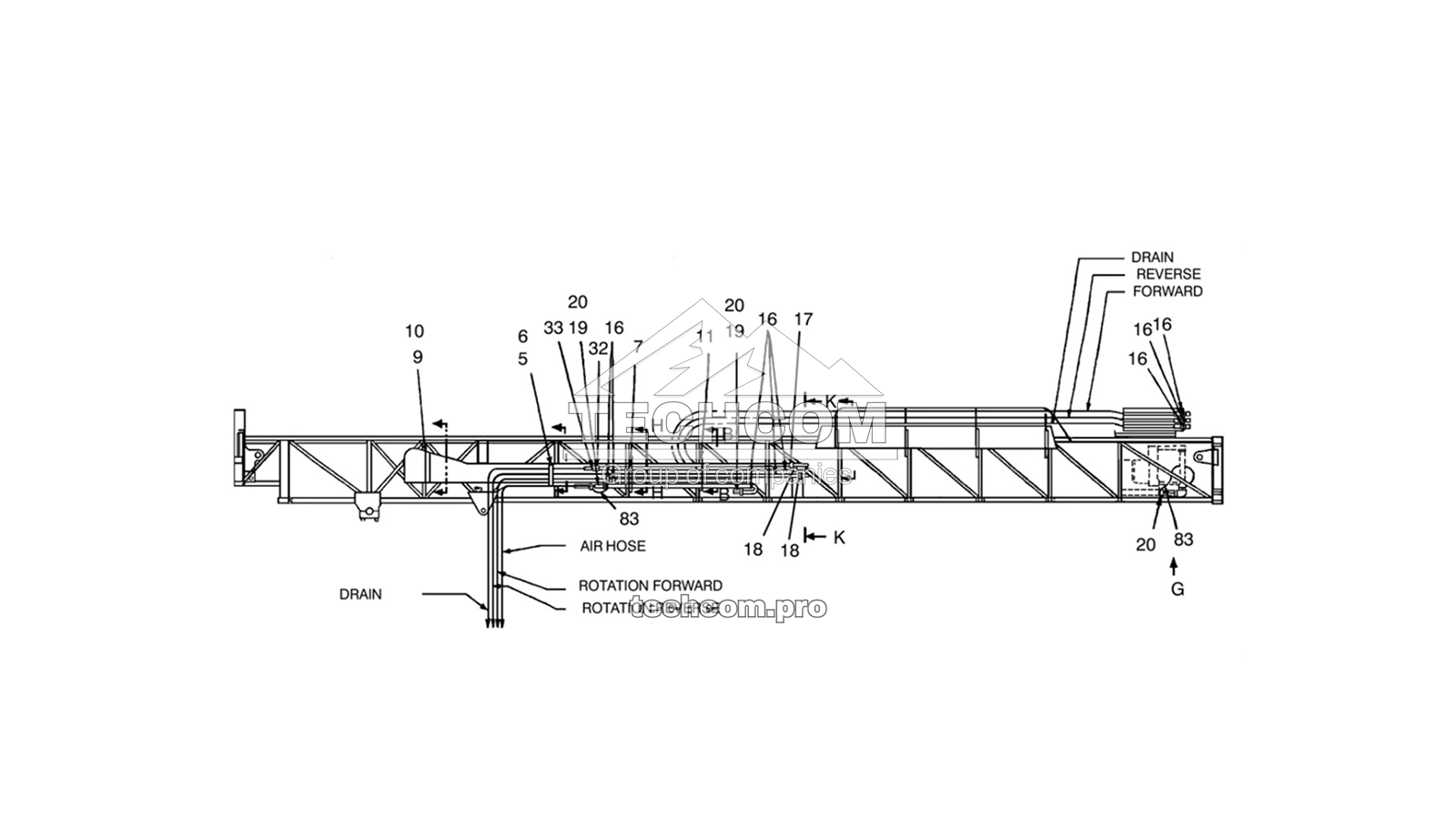

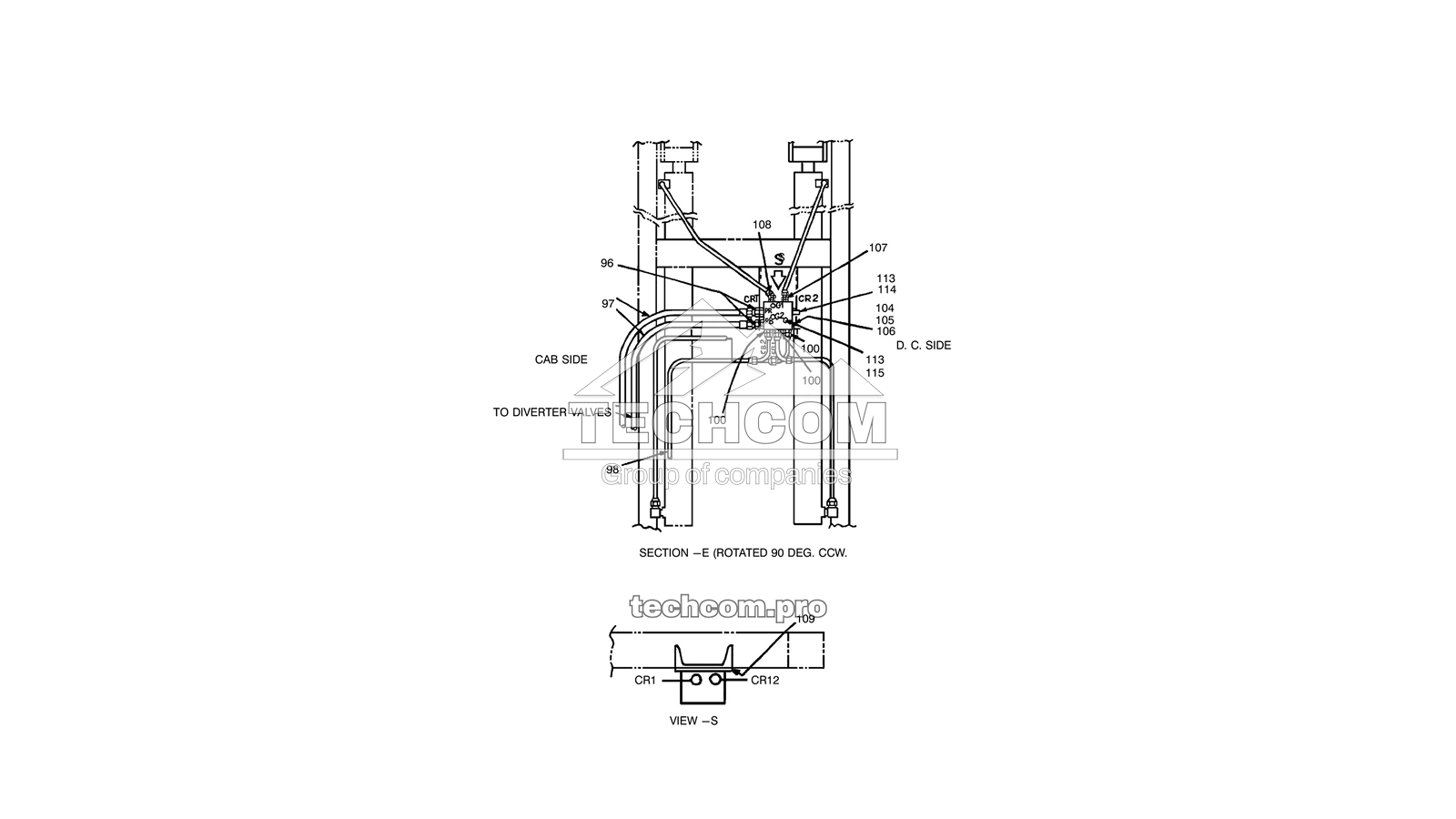

Spare Parts List
| Ref. | Part No. | Alt. Part No. | Description |
|---|---|---|---|
| 005.0 | 57390171 | 2657390171 | Bracket – Hose Tray |
| 006.0 | 57083172 | 2657083172 | Gusset |
| 007.0 | 57755654 | 2657755654 | Clamp, Standpipe |
| – | 95937413 | 2695937413 | Washer, Lock, Helical |
| – | 95971545 | 2695971545 | Screw, Cap, Drilled Head |
| 009.0 | 57315657 | 2657315657 | Bracket |
| 010.0 | 57390262 | 2657390262 | Bracket, Hose Tray |
| 011.0 | 57755654 | 2657755654 | Clamp, Standpipe |
| – | 95937413 | 2695937413 | Washer, Lock, Helical |
| – | 95971545 | 2695971545 | Screw, Cap, Drilled Head |
| 012.0 | 57082554 | 2657082554 | Standpipe |
| 013.0 | 57755639 | 2657755639 | Tube, Rotation |
| – | 57756728 | 2657756728 | Specification, Tube Clean |
| 014.0 | 57755647 | 2657755647 | Tube, Rotation |
| – | 57756728 | 2657756728 | Specification, Tube Clean |
| 015.0 | 57085599 | 2657085599 | Standpipe |
| 016.0 | 56783020 | 2656783020 | Kit, Split Flange |
| 017.0 | 57092728 | 2657092728 | Clamp Assy, 1-1/4 Pipe |
| 018.0 | 52154325 | 2652154325 | Clamp, 1-1/2 Tube |
| 019.0 | 50023910 | 2650023910 | Stem |
| 020.0 | 50743731 | 2650743731 | Clamp, Hose |
| 022.0 | 57525545 | 2657525545 | Hose Assy |
| 032.0 | 50347889 | 2650347889 | Valve, Check |
| 033.0 | 95219747 | 2695219747 | Connector, Male, 37° |
| 083.0 | 57358145 | 2657358145 | Cable, Hose Restraint |
| 084.0 | 57093197 | 2657093197 | Bar, Round |
| 089.0 | 56893217 | 2656893217 | Wire |
| 096.0 | 57167454 | 2657167454 | Fitting, STR, 20OFS × 20SAE |
| 097.0 | 57495384 | 2657495384 | Hose Assy |
| 098.0 | 57344764 | 2657344764 | Hose Assy |
| 100.0 | 57319683 | 2657319683 | Fitting, STR, 16OFS × 16SAE |
| 104.0 | 95836466 | 2695836466 | Screw, Cap |
| 105.0 | 95077772 | 2695077772 | Nut, Hex |
| 106.0 | 95081865 | 2695081865 | Washer, Lock |
| 107.0 | 57319675 | 2657319675 | Fitting, STR, 12OFS × 16SAE |
| 108.0 | 57308850 | 2657308850 | Fitting, L45, 12OFS × 16SAE |
| 109.0 | 57329989 | 2657329989 | Plate Spacer, Valve |
| 113.0 | 57328676 | 2657328676 | Fitting, Test |
| 114.0 | 95650156 | 2695650156 | Adapter |
| 115.0 | 52209913 | 2652209913 | Adapter, SAE |
| 116.0 | 57491896 | 2657491896 | Hose Assy |
Built for robust tower plumbing, the 57518482 (2657518482) kit simplifies routing, restraint and service of rotation and standpipe lines on DM45/DM50 towers. TechCom supplies the complete assembly and genuine tower piping spares. View all spare parts for Epiroc DM45/DM50.
