Main Body Assembly Montabert HC95 LM
Main body assembly components for the Montabert HC95 LM hydraulic drifter are available from stock with fast worldwide delivery. We supply original and OEM-grade parts designed to ensure stable operation and long service life in demanding underground drilling conditions.
The assembly includes the main housing, fastening elements, bearing units, gear components and sealing parts required for proper load distribution and efficient power transmission. The design ensures reliable performance of the drifter under high mechanical and hydraulic loads.

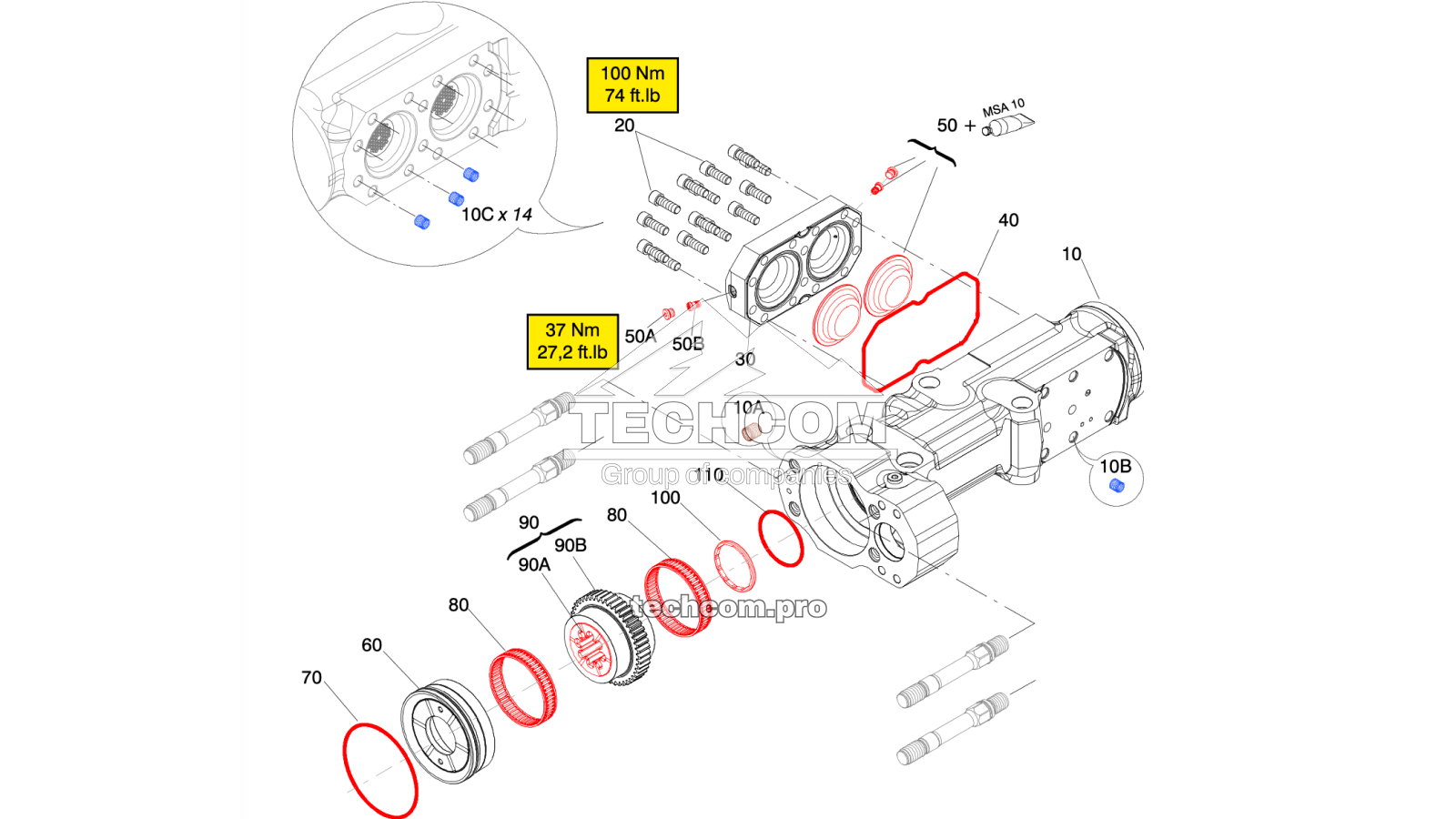

Components included in the main body assembly
| Item | Qty | Part No. | Name |
|---|---|---|---|
| 10 | 1 | 0694 012733 | Main body incl. |
| 10A | 4 | 0694 012123 | Thread UNF 3/4" |
| 10B | 6 | 0694 012311 | Thread UNF 5/8" |
| 10C | 26 | 0694 012312 | Thread UNF 1/2" |
| 20 | 14 | 0694 012361 | UNF 1/2" socket head screw |
| 30 | 1 | 0694 012563 | Cover |
| 40 | 1 | 0694 012564 | O-ring |
| 50 | 2 | 0694 012310 | Diaphragm kit incl. |
| 50A | 2 | 0694 012211 | Plug |
| 50B | 2 | 0694 012210 | Inflate valve |
| 60 | 1 | 0694 012342 | Front bearing |
| 70 | 1 | 0694 012438 | O-ring |
| 80 | 2 | 0694 012314 | Needle bearing |
| 90 | 1 | 0694 012362 | Pre-equipped gear drive incl. |
| 90A | 1 | 0694 012333 | Splined nut |
| 90B | 1 | 0694 012362 | Driven gear |
| 100 | 1 | 0694 011964 | Centering tool |
| 110 | 1 | 0694 011927 | O-ring |
| 120 | 1 | 0694 012365 | Cover |
| 130 | 1 | 0694 011928 | O-ring |
| 140 | 1 | 0694 012315 | Needle bearing |
| 150 | 1 | 0694 012431 | Hub motor gear |
| 160 | 1 | 0694 012432 | Gear |
| 170 | 1 | 0694 012316 | Needle bearing |
| 180 | 1 | 0694 012532 | Plug |
| 190 | 1 | 0694 012336 | Pin adapter |
| 200 | 1 | 0694 012335 | Ring |
| 210 | 1 | 0694 011929 | O-ring |
| 220 | 1 | 0694 012440 | O-ring |
| 230 | 1 | 0694 012601 | Adapter |
| 240 | 1 | 0694 012196 | Plug |
| 250 | 4 | 0461 088925 | UNF 3/4" socket head screw |
| 260 | 1 | 0694 012340 | Hose |
| 270 | 2 | 0694 012433 | Ring |

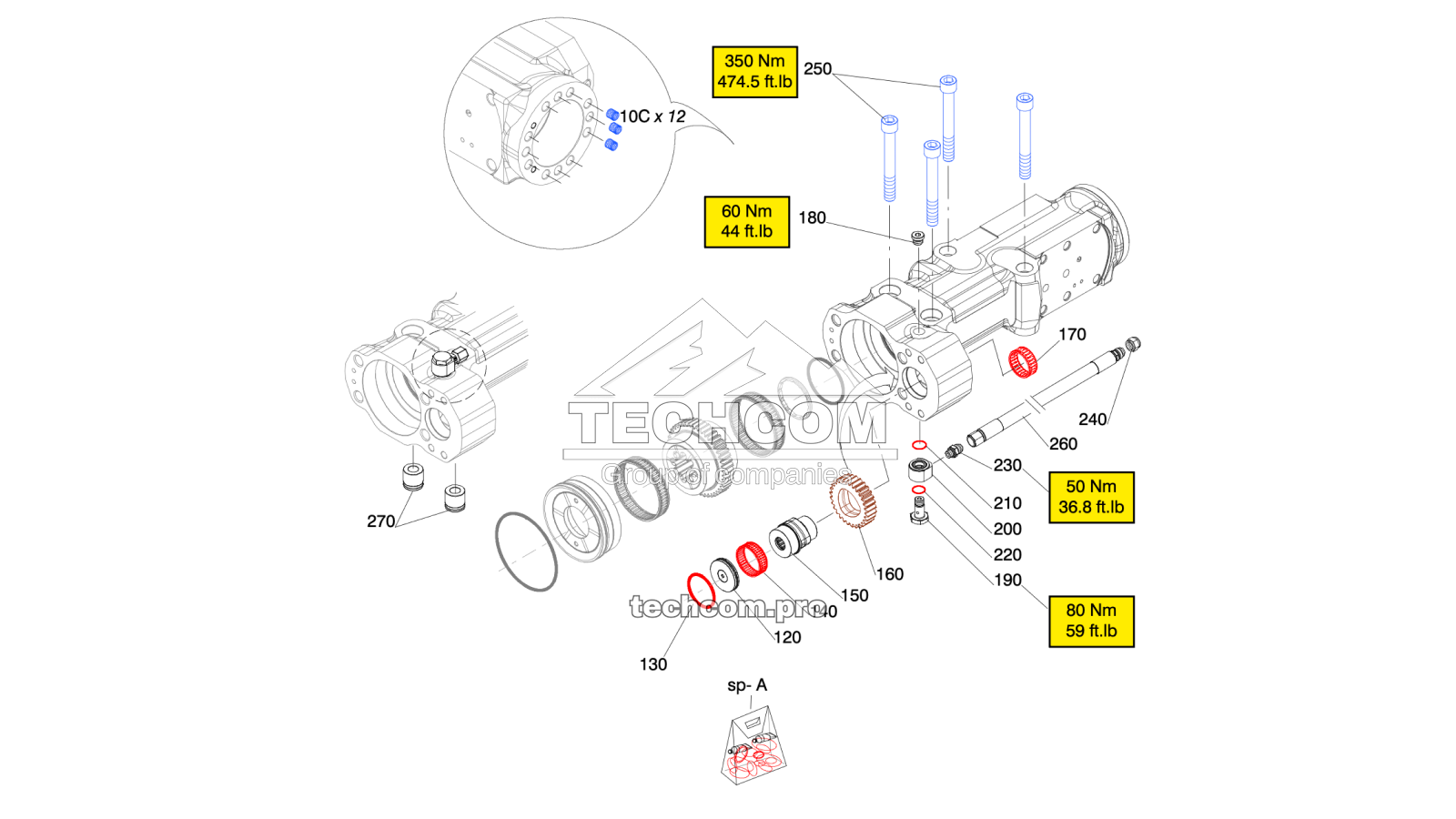

Seals package 0694 012318
The seals kit 0694 012318 includes all sealing elements marked in the diagram and is used for maintenance of the main body assembly, ensuring proper sealing and protection of internal components.
| Item | Part No. | Name |
|---|---|---|
| 40 | 0694 012564 | O-ring |
| 70 | 0694 012438 | O-ring |
| 100 | 0694 011964 | Centering tool |
| 110 | 0694 011927 | O-ring |
| 130 | 0694 011928 | O-ring |
| 210 | 0694 011929 | O-ring |
| 220 | 0694 012440 | O-ring |
Browse all spare parts for hydraulic drifter Montabert HC95 LM to select the required components for maintenance and repair.
