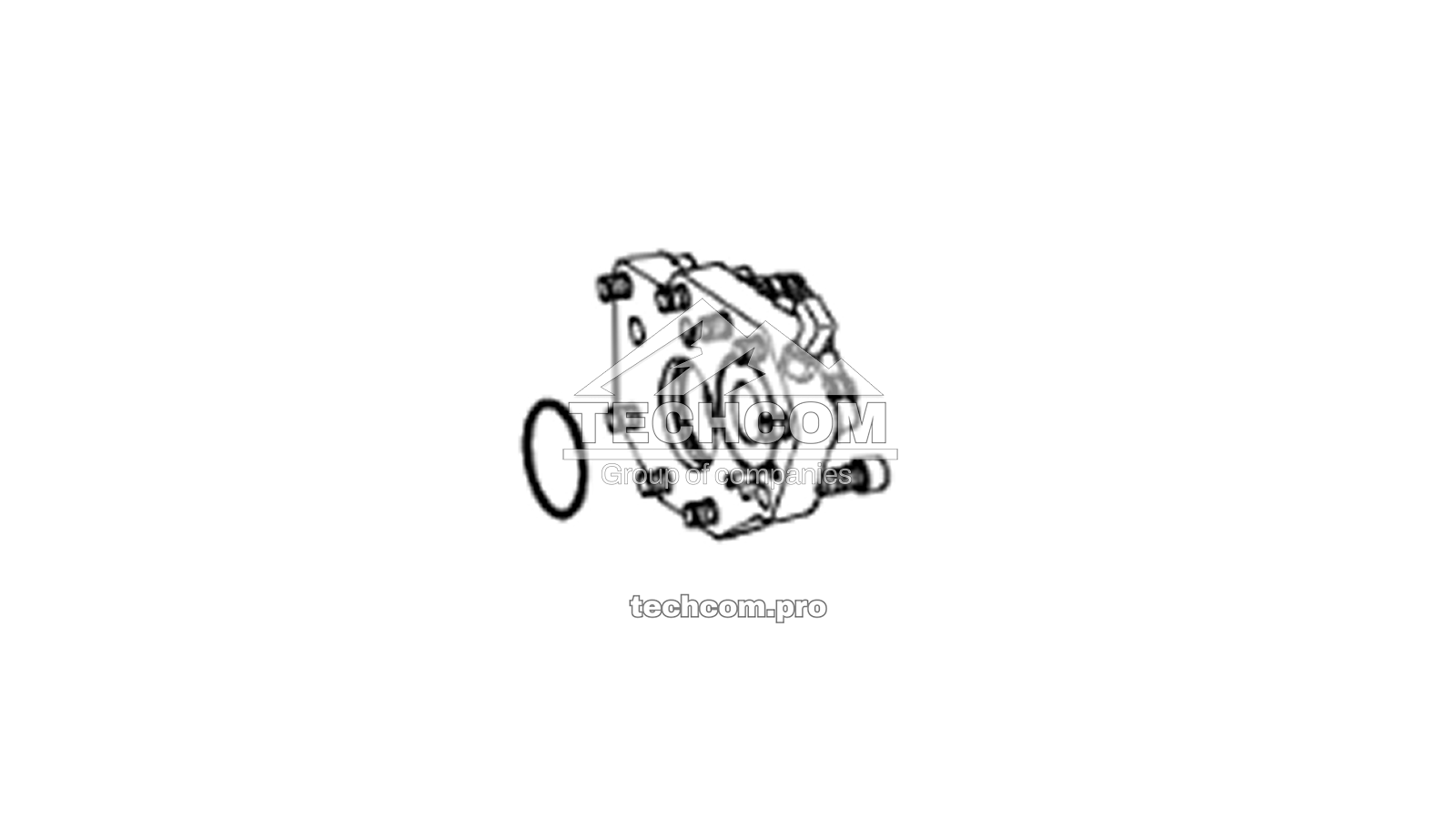

Rear plate parts for Montabert HC160
The rear plate assembly used in Montabert HC160 hydraulic drifters serves as a closing and support structure for the rear section of the unit. It ensures proper sealing, fixation of internal components and structural integrity during drilling operations under high нагрузках.

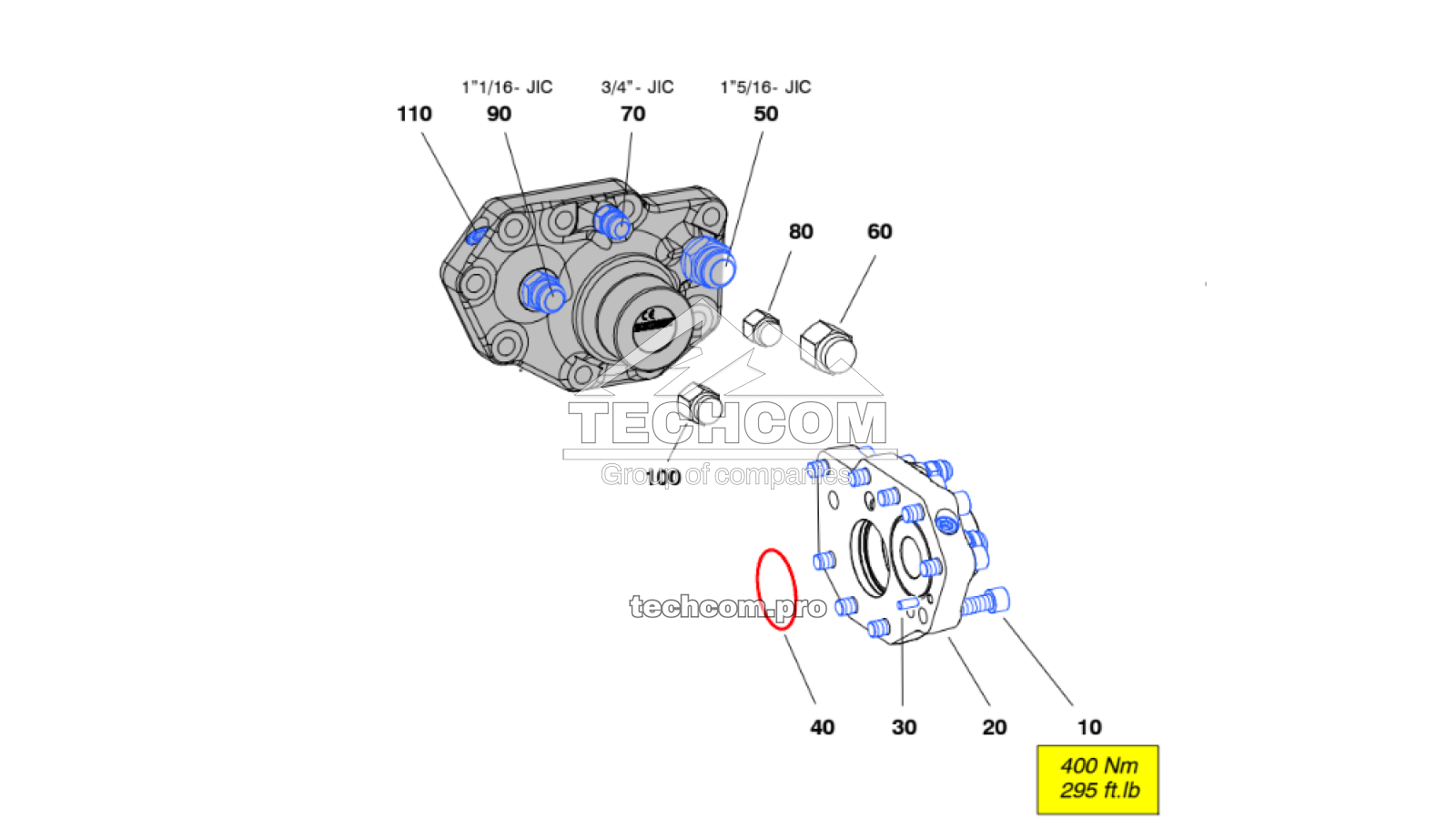

Components included in the rear plate
| Item | Part No. | Name | Qty | Remarks |
| 10 | 95340659 | UNF 3/4" socket head screw | 9 | Fastening component |
| 20 | 86586260 | Rear plate | 1 | Main structural element |
| 30 | 86223419 | Pin | 1 | Fixing element |
| 40 | 86502234 | O-ring | 1 | Sealing component |
| 50 | 95219762 | Adapter | 1 | Connection element |
| 60 | 86250651 | Plug | 1 | Sealing element |
| 70 | 95219721 | Adapter | 1 | Connection element |
| 80 | 86247723 | Plug | 1 | Sealing element |
| 90 | 95279329 | Adapter | 1 | Connection element |
| 100 | 86250636 | Plug | 1 | Sealing element |
| 110 | 86261781 | Plug | 1 | Sealing element |
