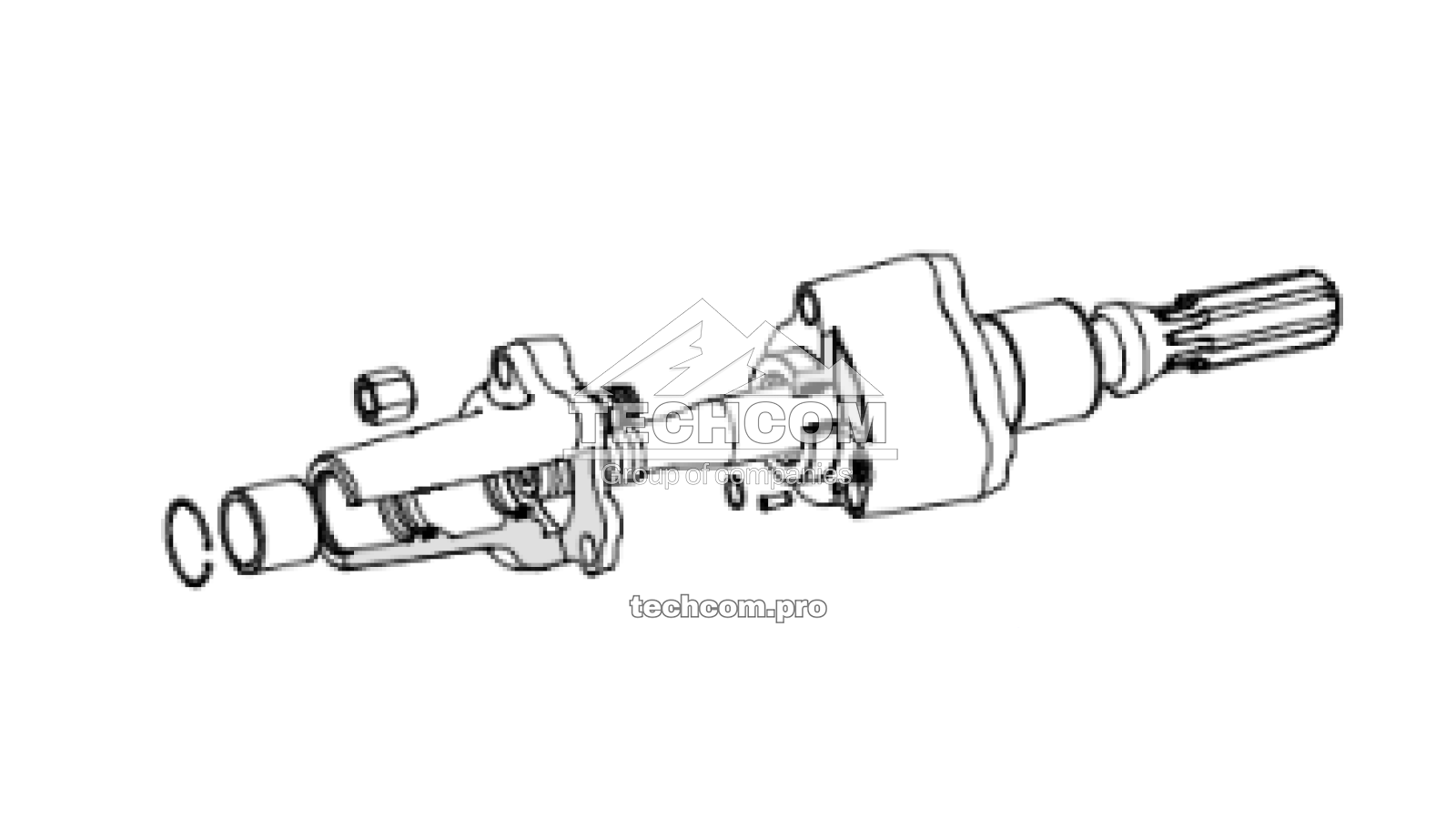

Front assembly for Montabert HC160 hydraulic drifter
The front assembly used in Montabert HC160 hydraulic drifters is responsible for guiding the piston rod, maintaining sealing integrity and ensuring proper alignment of internal components. This unit includes guiding elements, sealing components and fastening parts required for stable operation and protection of the drilling system under heavy-duty conditions.

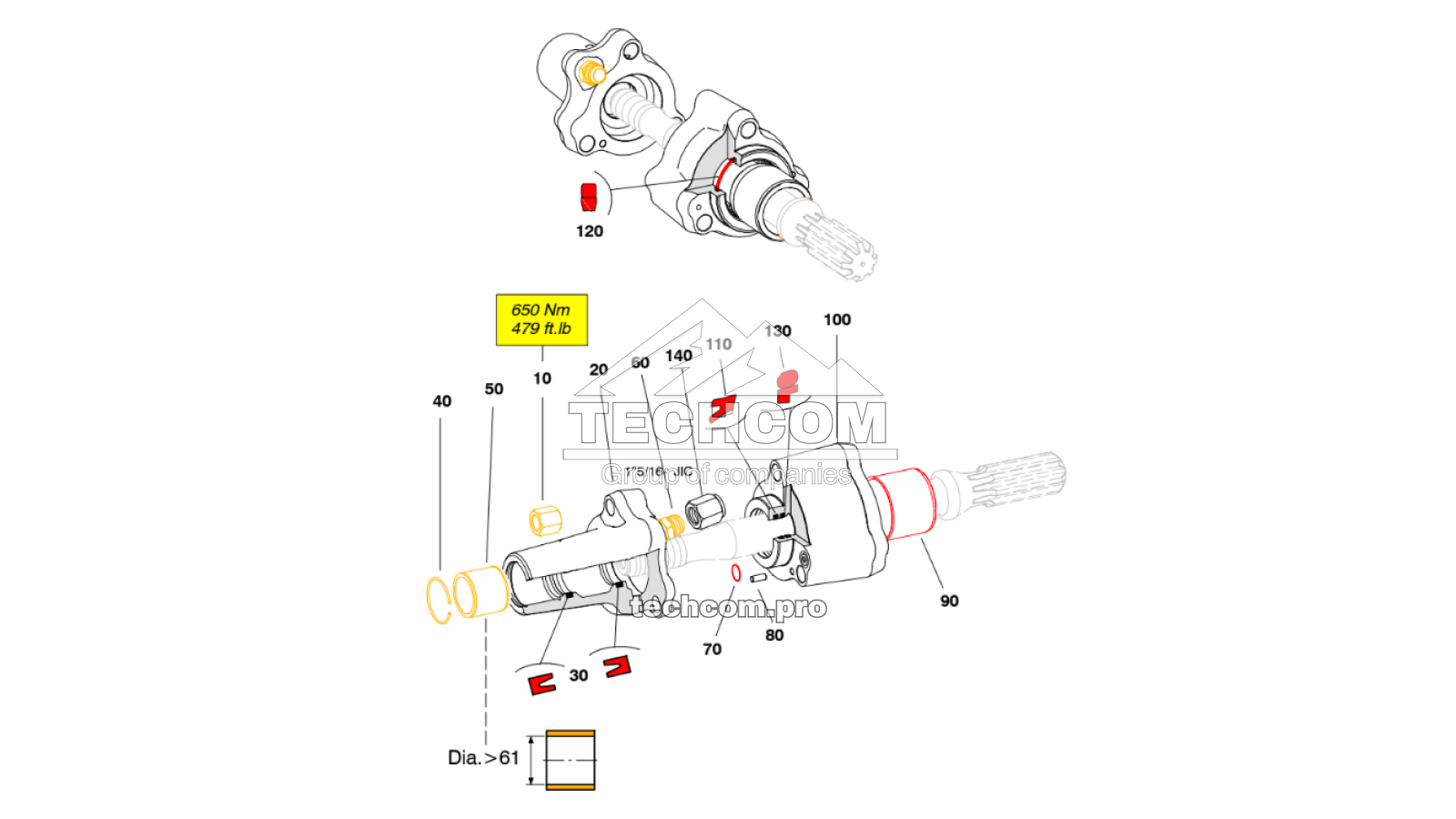

Components included in the front assembly
| Item | Part No. | Name | Qty | Remarks |
| 10 | 86396397 | UNF 1" nut | 3 | - |
| 20 | 86585452 | Front guide | 1 | - |
| 30 | 86582616 | Lip seal | 2 | Sealing component |
| 40 | 86582558 | Snap ring | 1 | Retaining element |
| 50 | 86589827 | Bushing | 1 | Guide element |
| 60 | 95219762 | Adapter | 1 | - |
| 70 | 86228996 | O-ring | 1 | Seal item |
| 80 | 86223419 | Pin | 1 | - |
| 90 | 86602364 | Retainer | 1 | - |
| 100 | 86602372 | RP body | 1 | Main housing element |
| 110 | 86588126 | Lip seal | 1 | Sealing component |
| 120 | 86588118 | Rod seal | 1 | Seal item |
| 130 | 86602133 | Rod seal | 1 | Seal item |
| 140 | 86250651 | Plug | 1 | - |
