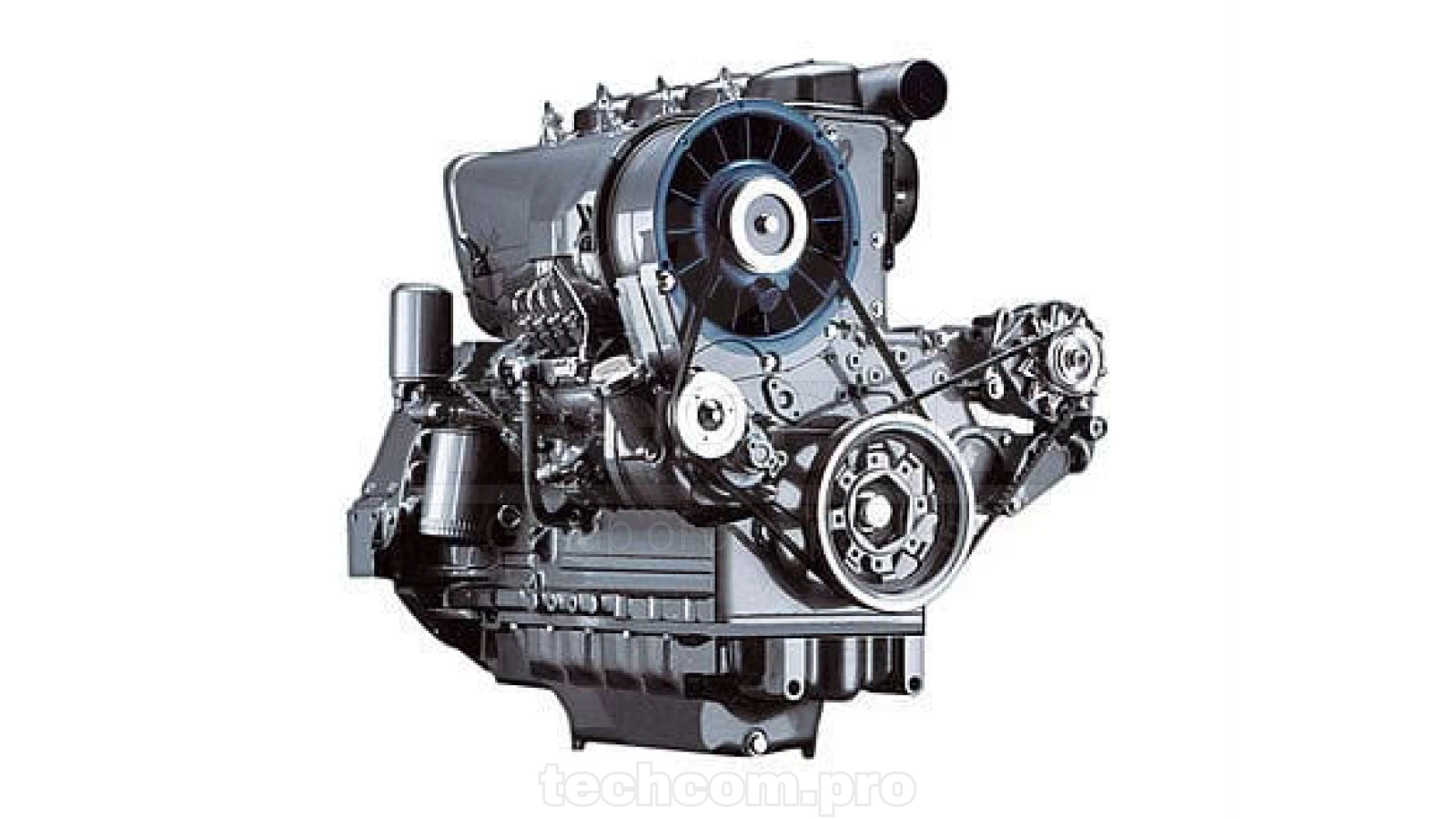

The Deutz 912 series features compact, modular air-cooled diesel engines designed for demanding applications across construction, agriculture, transport, and industrial machinery. Thanks to direct fuel injection and forced air cooling, these engines deliver consistent power with low fuel consumption and simplified service access.
All models are based on a proven OHV 4-stroke design and available in 3-, 4-, 5-, and 6-cylinder horizontal configurations. Their component-based construction ensures excellent interchangeability and easy cylinder-specific servicing without dismantling the entire unit. The engines are equipped with electric starters for reliable operation in cold weather conditions.
Key Benefits
- Compact layout simplifies installation in vehicles and equipment
- High torque and efficient acceleration, even under heavy load
- Low fuel consumption and extended service intervals
- Minimal vibration and noise, clean combustion process
- Air-cooled — no need for liquid cooling systems
Available Models & Specifications
| Model | Cylinders | Displacement (L) | Power (hp / kW) | Max Torque (Nm) | Dry Weight (kg) | Dimensions (L×W×H, mm) |
|---|---|---|---|---|---|---|
| F3L912 | 3 | 2.83 | 54 / 40 | 185 | 270 | 697×679×796 |
| F4L912 | 4 | 3.77 | 73 / 54 | 247 | 300 | 807×697×796 |
| F5L912 | 5 | 4.71 | 92 / 68 | 308 | 380 | 954×679×833 |
| F6L912 | 6 | 5.66 | 111 / 82 | 370 | 410 | 1084×679×806 |
All engines share common features:
- Injection type: Direct fuel injection
- Cooling system: Forced air-cooled
- Cylinder bore: 100 mm, Stroke: 120 mm
- Compression ratio: 18:1
- Fuel consumption: 225 g/kWh
- Dimensions (L×W×H): from 697×679×796 mm (F3L912) to 1084×679×806 mm (F6L912)
Need help selecting the right Deutz 912 configuration or spare parts? Request a consultation.
